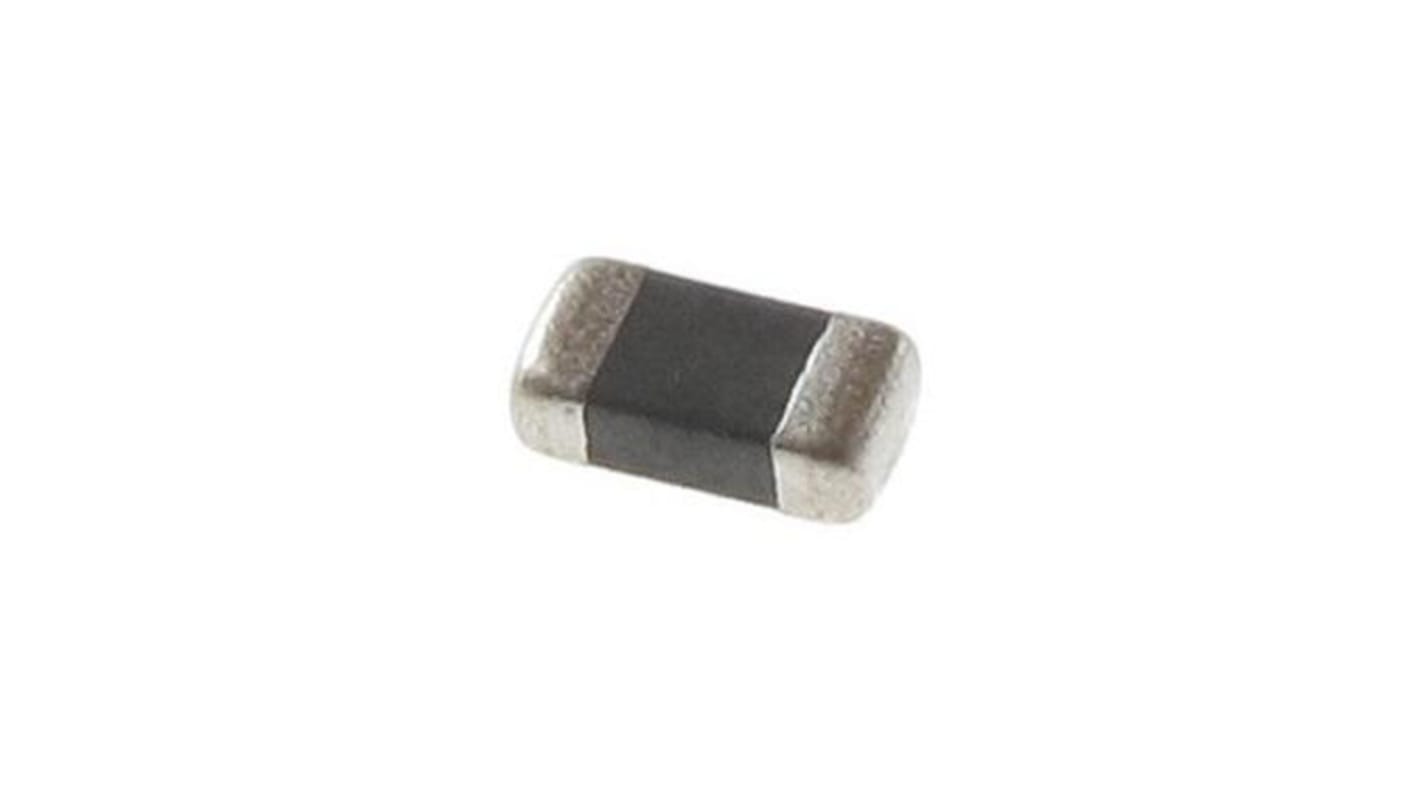

Murata Ferrite Bead (Chip Bead), 4.5 x 1.6 x 1.6mm (1806 (4516M)), 60Ω impedance at 100 MHz
- RS Stock No.:
- 104-8549
- Mfr. Part No.:
- BLM41PG600SH1L
- Manufacturer:
- Murata
10 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
MYR1.093
| Units | Per Unit | Per Pack* |
| 10 + | MYR1.093 | MYR10.93 |
| *price indicative | ||
- RS Stock No.:
- 104-8549
- Mfr. Part No.:
- BLM41PG600SH1L
- Manufacturer:
- Murata
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
SMD 1806 Ferrite Filters- BLM41P Series
BLM series ferrite beads from Murata do not require a ground connection and are ideal for use in circuits with unstable ground lines. The nickel barrier construction of the external electrodes provides excellent resistance to solder heat. These ferrite beads are designed to function nearly as resistors at noise frequencies, leaving signal wave forms undistorted and reducing the possibility of resonance.
Applications
This series of ferrite beads are designed for general use applications.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Package Type | 1806 (4516M) |
| Impedance at 100 MHz | 60Ω |
| Current Rating | 6A |
| Type | Chip Bead |
| Dimensions | 4.5 x 1.6 x 1.6mm |
| Length | 4.5mm |
| Depth | 1.6mm |
| Height | 1.6mm |
| Maximum DC Resistance | 0.009Ω |
| Material | Ferrite |
| Series | BLM41P |
| Application | Automotive, Powertrain, Safety |
