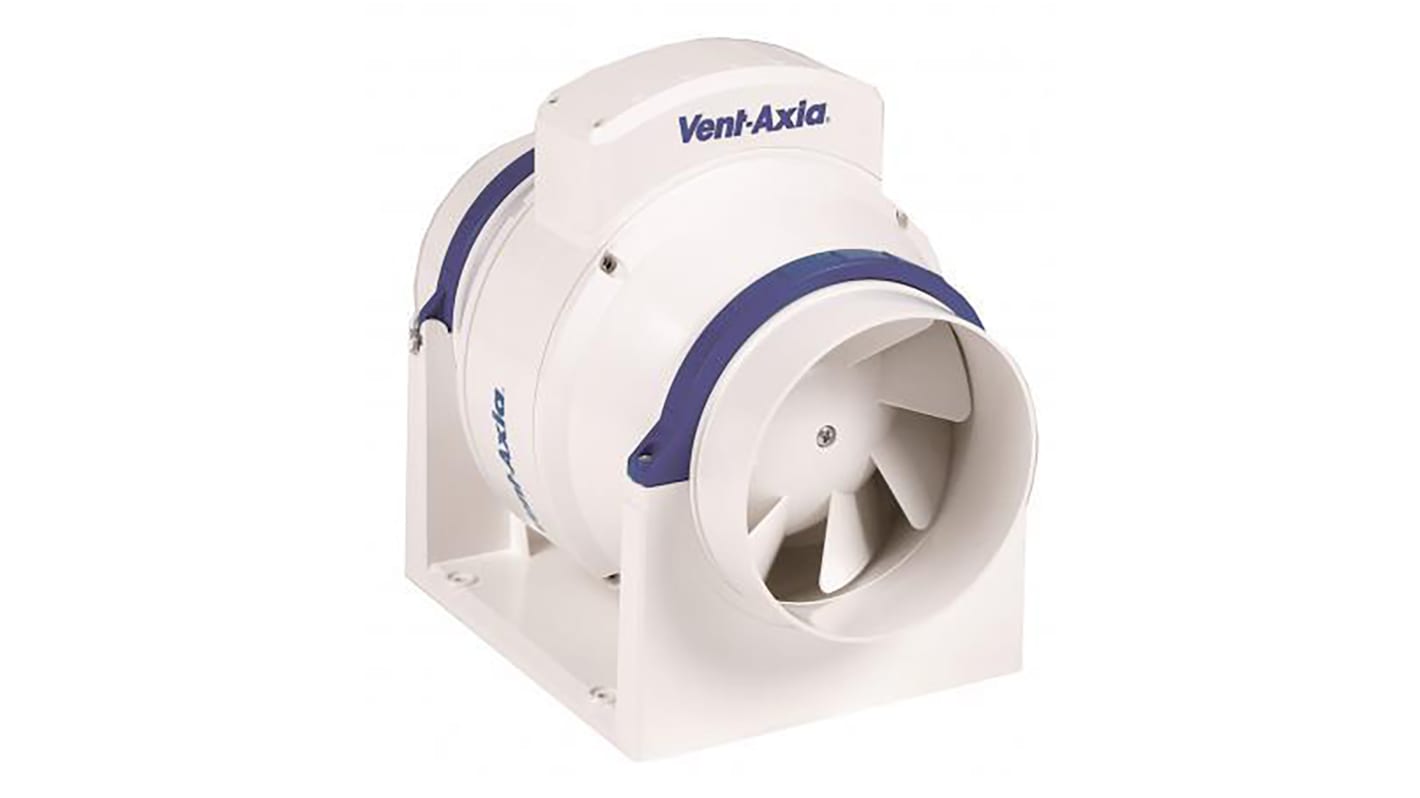

Vent-Axia ACM100T ACM Round In Line Mount Extractor Fan, 256 m³/h, 23 dBA, Duct Size 100 mm
- RS Stock No.:
- 892-8713
- Mfr. Part No.:
- ACM100T
- Manufacturer:
- Vent-Axia
Subtotal (1 unit)*
MYR1,901.86
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | MYR1,901.86 |
*price indicative
- RS Stock No.:
- 892-8713
- Mfr. Part No.:
- ACM100T
- Manufacturer:
- Vent-Axia
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vent-Axia | |
| Fan Type | Duct | |
| Product Type | Extractor Fan | |
| Air Flow | 256m³/h | |
| Noise Level | 23dBA | |
| Housing Material | Polymer | |
| Mount Type | In Line Mount | |
| Colour | White | |
| Power Consumption | 114W | |
| IP Rating | IP44 | |
| Standards/Approvals | RoHS | |
| Duct Size | 100 mm | |
| Supply Voltage | 230V ac | |
| Configuration | Round | |
| Series | ACM | |
| Select all | ||
|---|---|---|
Brand Vent-Axia | ||
Fan Type Duct | ||
Product Type Extractor Fan | ||
Air Flow 256m³/h | ||
Noise Level 23dBA | ||
Housing Material Polymer | ||
Mount Type In Line Mount | ||
Colour White | ||
Power Consumption 114W | ||
IP Rating IP44 | ||
Standards/Approvals RoHS | ||
Duct Size 100 mm | ||
Supply Voltage 230V ac | ||
Configuration Round | ||
Series ACM | ||
Vent Axia ACM In-Line Mixed Flow Duct Fans
Vent Axia ACM in-line mixed flow duct fans specifically designed for rigid and flexible ducting offering 2½ times the pressure development of conventional axial fans.
Designed and manufactured in the UK
Supplied complete for installation
Can operate in both horizontal and vertical orientations
Capacitor start and run
Single direction two speed selectable motor, thermal overload protected
Timer versions available, see ACM100T and ACM150T (RS 892-8713 and 892-8717 respectively)
Removable motor core assembly
Rotating motor chassis assembly
Terminal box with 20mm cable entry
Infinitely variable electronic fan speed controller (radio suppressed in accordance with BS 800) for direct use or via an external humidistat, thermostat, timer or sensor (not supplied) is available separately. See Stock Number 157-7056 for controller.
230 Vac mains powered
IP44 rated
Aesthetically pleasing with wipe-clean polymer casing
Supplied with
Horizontal/vertical mounting bracket
