Vent-Axia ACM200 ACM Round In-Line Extractor Fan, 864 m³/h, 38 dBA, Duct Size 200 mm

View all Extractor Fans

Subtotal (1 unit)*

MYR2,094.73

Add to Basket
Select or type quantity
In Stock
  • Plus 13 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR2,094.73

*price indicative

RS Stock No.:
272-722
Mfr. Part No.:
ACM200
Manufacturer:
Vent-Axia
Find similar products by selecting one or more attributes.
Select all

Brand

Vent-Axia

Product Type

Extractor Fan

Fan Type

Duct

Air Flow

864m³/h

Noise Level

38dBA

Mount Type

In-Line

Colour

White

IP Rating

IP44

Standards/Approvals

I.E.E. regulations, BS7671

Duct Size

200 mm

Supply Voltage

230V ac

Configuration

Round

Series

ACM

RoHS Status: Exempt

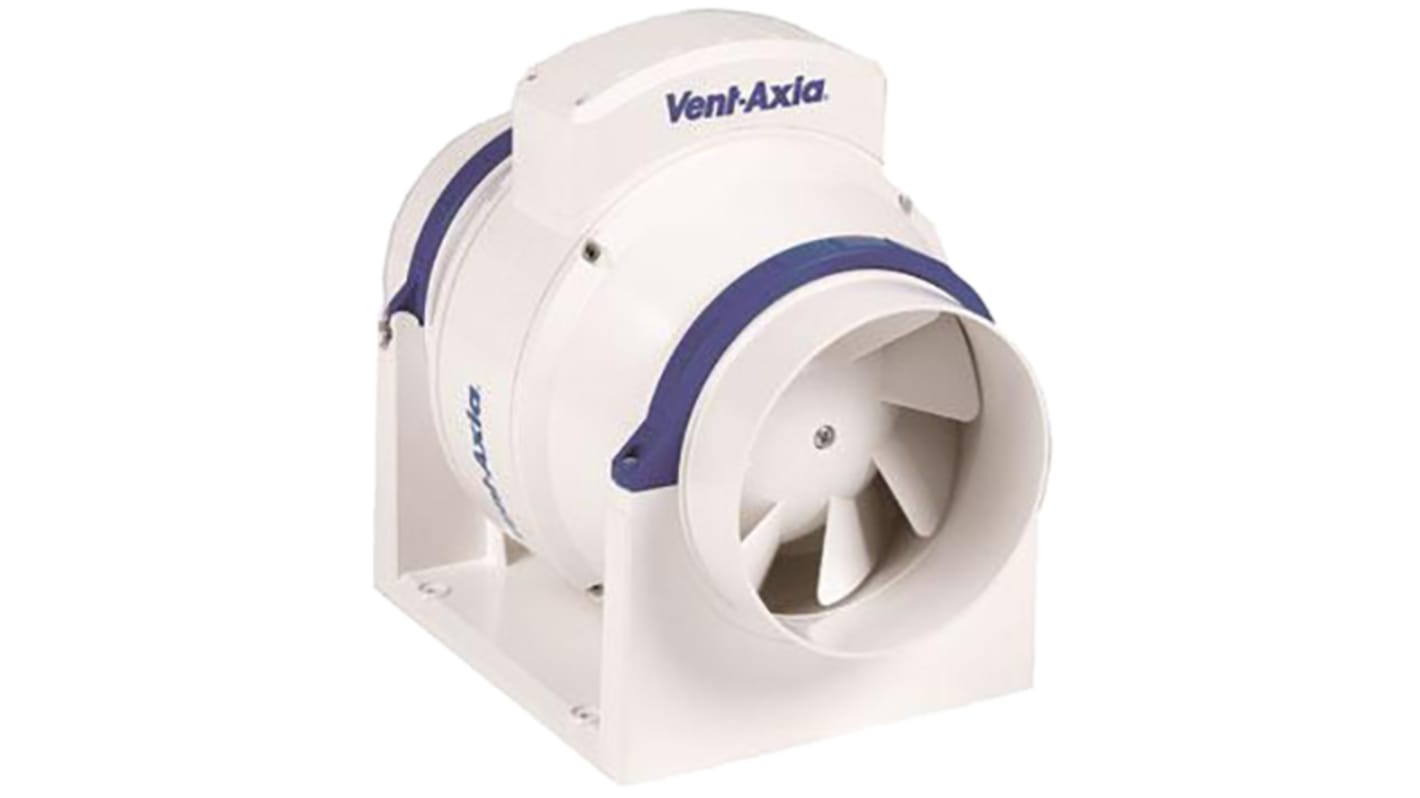

Vent-Axia Duct Fan


The Vent-Axia in-line mounting duct fan has an airflow rate of 864m³/h and a duct diameter of 200mm. It has a supply voltage rating ranging between 220V and 240V. This is an efficient, mixed flow fan designed for rigid and flexible ducting, offering two times the pressure development of conventional axis fans. It can operate in both horizontal and vertical orientations. The Vent-Axia in-line duct fan is an aesthetically pleasing product with a wipe-clean polymer casing.

Features and Benefits


Noise level of 38dB (A)

Capacitor start and run

Single direction,2 speed selectable motor

Thermal overload protected

Removable motor core assembly

Rotating motor chassis assembly

Terminal box with 20mm cable entry

Infinitely variable electronic fan speed controller

Certifications


IP44 rated

ANSI/ESD S20.20:2014

BS EN 61340-5-1:2007
