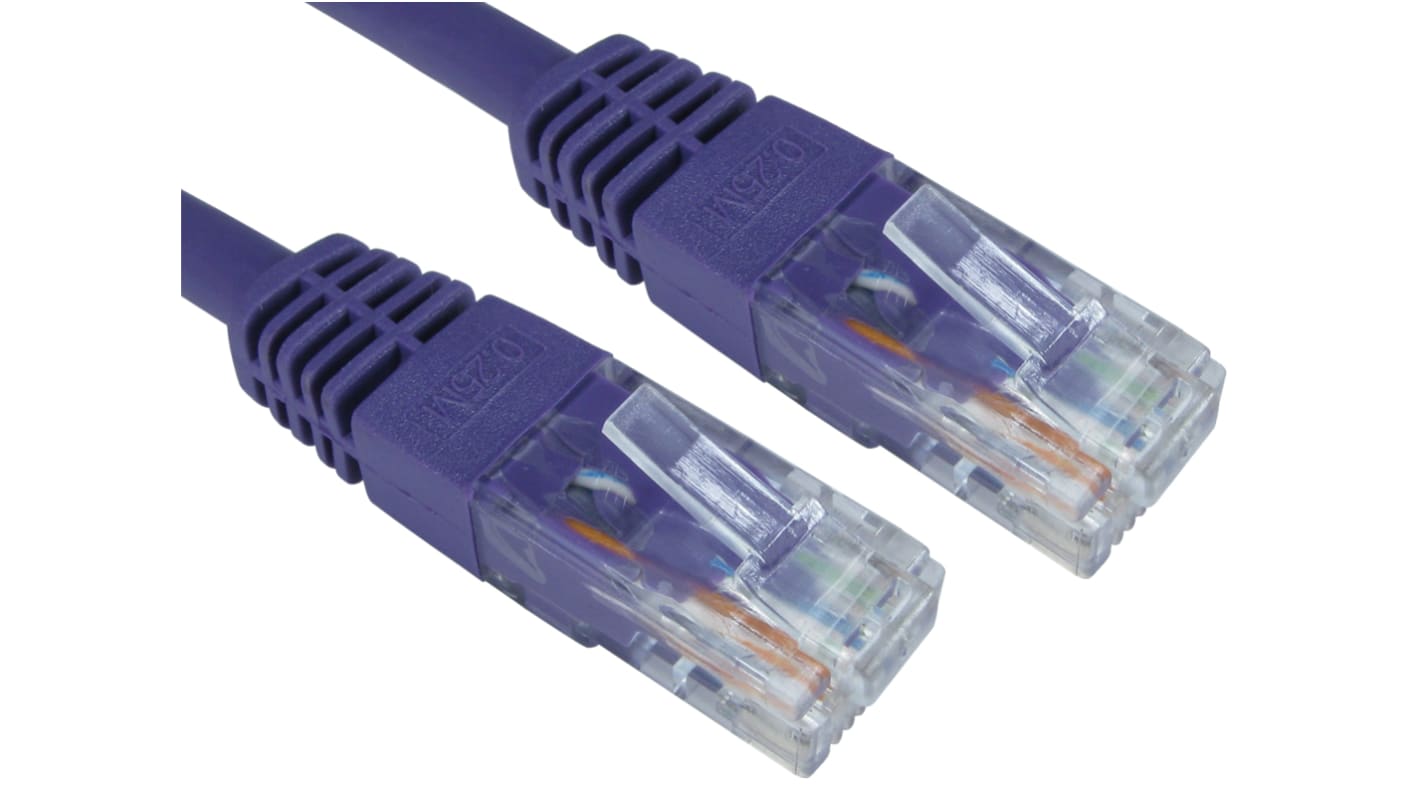

RS PRO, 1.5m Cat6, Violet RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 264-6523
Manufacturer:: RS PRO

RS PRO, 1.5m Cat6, Violet RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

MYR18.74

FREE delivery for orders over RM 500.00

In Stock

212 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR18.74

*price indicative

RS Stock No.:: 264-6523
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Length	1.5m
	LAN Category	Cat6
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 1	RJ45
	Connector 1 Gender	Male
	Connector 2	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Outer Sheath Material	PVC
	Sheath Colour	Violet
	Wiring Configuration	Straight Through
	Fire Behaviour	CM Rated
	Core Strands	7/0.18
	Standards Met	EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1
	Current Rating	960mA
	Conductor Strand Type	Stranded
	Number of Strands	8
	American Wire Gauge	24AWG
	Cable Shape	Round
	Capacitance	5.6nF/100m
	Cross Sectional Area	0.201 to 0.253mm²
	Outer Diameter	5.5mm
	Voltage Rating	80V

	Select all
	Brand RS PRO
	Length 1.5m
	LAN Category Cat6
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 1 RJ45
	Connector 1 Gender Male
	Connector 2 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Outer Sheath Material PVC
	Sheath Colour Violet
	Wiring Configuration Straight Through
	Fire Behaviour CM Rated
	Core Strands 7/0.18
	Standards Met EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1
	Current Rating 960mA
	Conductor Strand Type Stranded
	Number of Strands 8
	American Wire Gauge 24AWG
	Cable Shape Round
	Capacitance 5.6nF/100m
	Cross Sectional Area 0.201 to 0.253mm²
	Outer Diameter 5.5mm
	Voltage Rating 80V

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat6 Gigabit Patch Cable

This RS PRO Ethernet Cable is a high-performance Cat6 Gigabit Patch Cable designed for reliable and efficient network connections. Ideal for Gigabit Ethernet and other network protocols, it ensures backward compatibility with Cat-5/5e and Category 3 standards, offering enhanced specifications for reduced crosstalk and system noise.

Features and Benefits

Category 6 Cable: Provides performance up to 250 MHz for high-speed data transfer

UTP (Unshielded Twisted Pair): Reduces interference for clearer signal transmission

Moulded Design: Enhances durability and strain relief

24 AWG Bare Copper Cores: Ensures robust and stable connections

PoE Compatible: Supports Power over Ethernet applications

ISO/IEC 11801 & EN 50288 & TIA/EIA-563-B.2-1 ETL/3P Verified: Meets international standards for quality and performance

Applications

Data centres

Office networks

Home networking

Telecommunications

Additional Information

Sheath Colour: Violet

Outer Sheath Material: PVC

Wiring Configuration: Straight Through

Standards Met: EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1
