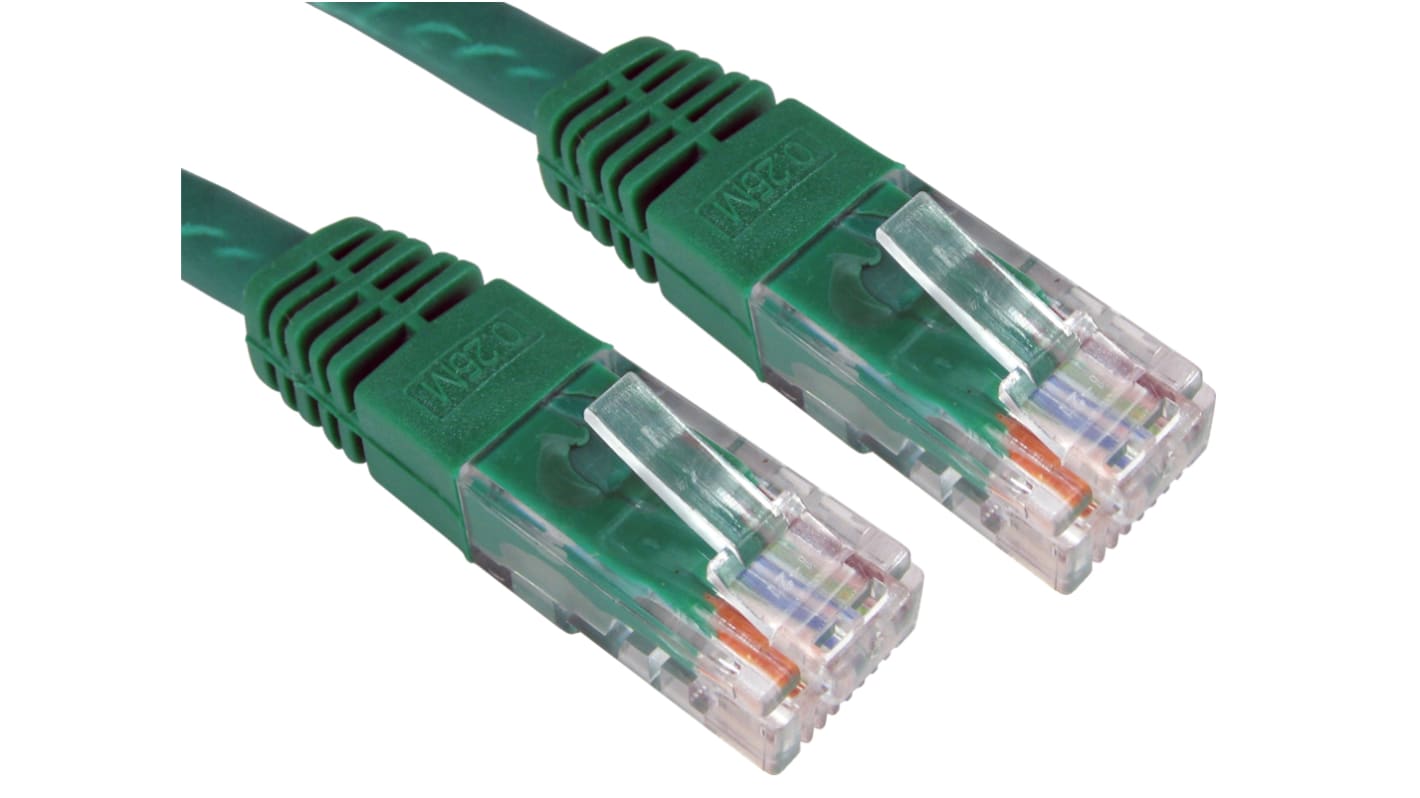

RS PRO, 1.5m Cat6, Green RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 264-6519
Manufacturer:: RS PRO

RS PRO, 1.5m Cat6, Green RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

MYR17.36

FREE delivery for orders over RM 500.00

In Stock

48 unit(s) ready to ship from another location
Plus 70 unit(s) shipping from 29 January 2026
Plus 140 unit(s) shipping from 19 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR17.36

*price indicative

RS Stock No.:: 264-6519
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat6
	Length	1.5m
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Gender	Male
	Connector 1 Orientation	Straight
	Connector 1	RJ45
	Connector 1 Number of Contacts	8
	Connector 2	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Shielded/Unshielded	Unshielded
	Connector 2 Orientation	Straight
	Sheath Colour	Green
	Outer Sheath Material	PVC
	Wiring Configuration	Straight Through
	Fire Behaviour	CM Rated
	Core Strands	7/0.18
	American Wire Gauge	24AWG
	Number of Strands	8
	Cable Shape	Round
	Standards Met	EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1
	Current Rating	960mA
	Cross Sectional Area	0.201 to 0.253mm²
	Capacitance	5.6nF/100m
	Conductor Strand Type	Stranded
	Voltage Rating	80V
	Outer Diameter	5.5mm

	Select all
	Brand RS PRO
	LAN Category Cat6
	Length 1.5m
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Gender Male
	Connector 1 Orientation Straight
	Connector 1 RJ45
	Connector 1 Number of Contacts 8
	Connector 2 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Shielded/Unshielded Unshielded
	Connector 2 Orientation Straight
	Sheath Colour Green
	Outer Sheath Material PVC
	Wiring Configuration Straight Through
	Fire Behaviour CM Rated
	Core Strands 7/0.18
	American Wire Gauge 24AWG
	Number of Strands 8
	Cable Shape Round
	Standards Met EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1
	Current Rating 960mA
	Cross Sectional Area 0.201 to 0.253mm²
	Capacitance 5.6nF/100m
	Conductor Strand Type Stranded
	Voltage Rating 80V
	Outer Diameter 5.5mm

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat6 Gigabit Patch Cable

This RS PRO Ethernet Cable is a high-performance Cat6 Gigabit Patch Cable designed for reliable and efficient network connections. Ideal for Gigabit Ethernet and other network protocols, it ensures backward compatibility with Cat5/5e and Cat3 standards, offering enhanced specifications for reduced crosstalk and system noise.

Features and Benefits

Category 6 Cable: Provides performance up to 250 MHz for high-speed data transfer
UTP (Unshielded Twisted Pair): Reduces interference and maintains signal integrity
Moulded Design: Enhances durability and strain relief
24 AWG Bare Copper Cores: Ensures robust and stable connections
PoE Compatible: Supports Power over Ethernet applications
ISO/IEC 11801 & EN 50288 & TIA/EIA-563-B.2-1 ETL/3P Verified: Meets international standards for quality and performance

Applications

Data centres
Office networks
Home networking
Telecommunications

Additional Information

Sheath Colour: Green
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Standards Met: EN 50288, ETL/3P Verified, ISO/IEC 11801, TIA/EIA-563-B.2-1
Length: 1.5 m
Connector Type: RJ45 Male to Male
