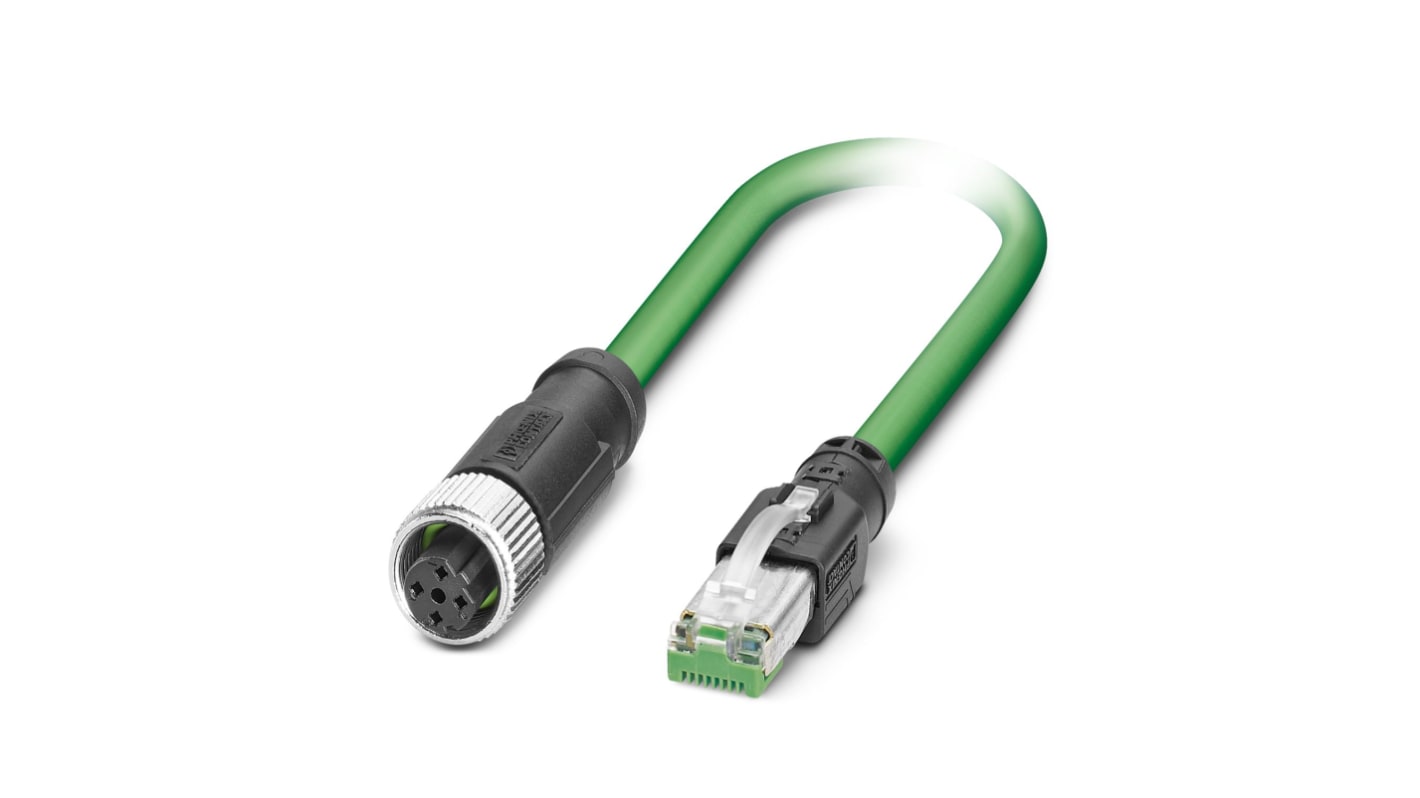

Phoenix Contact NBC, 1 m Cat5 Ethernet Cable, Green, Shielded 4 Screened Polyvinyl Chloride Sheath

RS Stock No.:: 255-8676
Mfr. Part No.:: 1407532
Manufacturer:: Phoenix Contact

Phoenix Contact NBC, 1 m Cat5 Ethernet Cable, Green, Shielded 4 Screened Polyvinyl Chloride Sheath

Subtotal (1 unit)*

MYR175.64

FREE delivery for orders over RM 500.00

In Stock

Plus 6 unit(s) shipping from 26 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR175.64

*price indicative

RS Stock No.:: 255-8676
Mfr. Part No.:: 1407532
Manufacturer:: Phoenix Contact

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Series	NBC
	Product Type	Ethernet Cable
	LAN Category	Cat5
	Cable Length	1m
	Shield Type	Shielded
	Sub Type	Cat5 Cable
	Screened/Unscreened	Screened
	Conductor Type	Stranded
	Jacket Material	Polyvinyl Chloride
	Jacket Colour	Green
	Maximum Operating Temperature	90°C
	Core Strands	7
	Fire Behaviour	Self-Extinguishing
	Standards/Approvals	IEC 61076-2-101
	Voltage	60 V dc, 48 V ac
	Number of Cores	4
	Cross Sectional Area	4 x 0.34 mm²
	Outside Diameter	6.5 mm
	Conductor Material	Tin Plated Copper

	Select all
	Brand Phoenix Contact
	Series NBC
	Product Type Ethernet Cable
	LAN Category Cat5
	Cable Length 1m
	Shield Type Shielded
	Sub Type Cat5 Cable
	Screened/Unscreened Screened
	Conductor Type Stranded
	Jacket Material Polyvinyl Chloride
	Jacket Colour Green
	Maximum Operating Temperature 90°C
	Core Strands 7
	Fire Behaviour Self-Extinguishing
	Standards/Approvals IEC 61076-2-101
	Voltage 60 V dc, 48 V ac
	Number of Cores 4
	Cross Sectional Area 4 x 0.34 mm²
	Outside Diameter 6.5 mm
	Conductor Material Tin Plated Copper

Datasheet - 1407532

RoHS Status: Exempt

COO (Country of Origin):: PL

Phoenix Contact NBC Series Ethernet Cable, Cat5 LAN Category, IP20 / IP67 - 1407532

This network cable is designed for industrial environments, featuring advanced shielding technology for reliable data transmission in PROFINET and EtherCAT® applications. It is preassembled, flexible, and comes in a robust 1-metre length with a green PVC outer sheath for durability and environmental protection.

Features & Benefits

• IP67 rated for protection against dust and water

• Shielded design reduces electromagnetic interference

• 22AWG stranded conductor for improved flexibility

• Self-extinguishing material for increased safety

Applications

• Industrial automation and control systems

• Harsh environments

• Ethernet communication in robotics

• Sensor networks for data acquisition

Is it suitable for high-speed data transfer?

Yes, it supports data rates up to 100 Mbps, ideal for most standard applications.
