Phoenix Contact NBC Cat5 Ethernet Cable 4 Core, Green, 2 m, Shielded Screened, Cat5 Cable PVC
- RS Stock No.:
- 255-8553
- Mfr. Part No.:
- 1407349
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR225.55
FREE delivery for orders over RM 150.00
Temporarily out of stock
- Shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR225.55 |
*price indicative
- RS Stock No.:
- 255-8553
- Mfr. Part No.:
- 1407349
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ethernet Cable | |
| Series | NBC | |
| LAN Category | Cat5 | |
| Cable Length | 2m | |
| Sub Type | Cat5 Cable | |
| Shield Type | Shielded | |
| Screened/Unscreened | Screened | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Green | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | Section 1200, IEC 61076 2 104, EAC ID: RU D DE.HB35.B.00387, UL 1685 (CSA FT 4), UL AWM Style 21694, UL 1581 | |
| Fire Behaviour | UL 1685 (CSA FT 4) | |
| Voltage | 30, 30V ac | |
| Conductor Material | Tin Plated Copper | |
| Outside Diameter | 6.5mm | |
| Number of Cores | 4 | |
| Cross Sectional Area | 4 x 0.34 mm² | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ethernet Cable | ||
Series NBC | ||
LAN Category Cat5 | ||
Cable Length 2m | ||
Sub Type Cat5 Cable | ||
Shield Type Shielded | ||
Screened/Unscreened Screened | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Green | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals Section 1200, IEC 61076 2 104, EAC ID: RU D DE.HB35.B.00387, UL 1685 (CSA FT 4), UL AWM Style 21694, UL 1581 | ||
Fire Behaviour UL 1685 (CSA FT 4) | ||
Voltage 30, 30V ac | ||
Conductor Material Tin Plated Copper | ||
Outside Diameter 6.5mm | ||
Number of Cores 4 | ||
Cross Sectional Area 4 x 0.34 mm² | ||
- COO (Country of Origin):
- PL

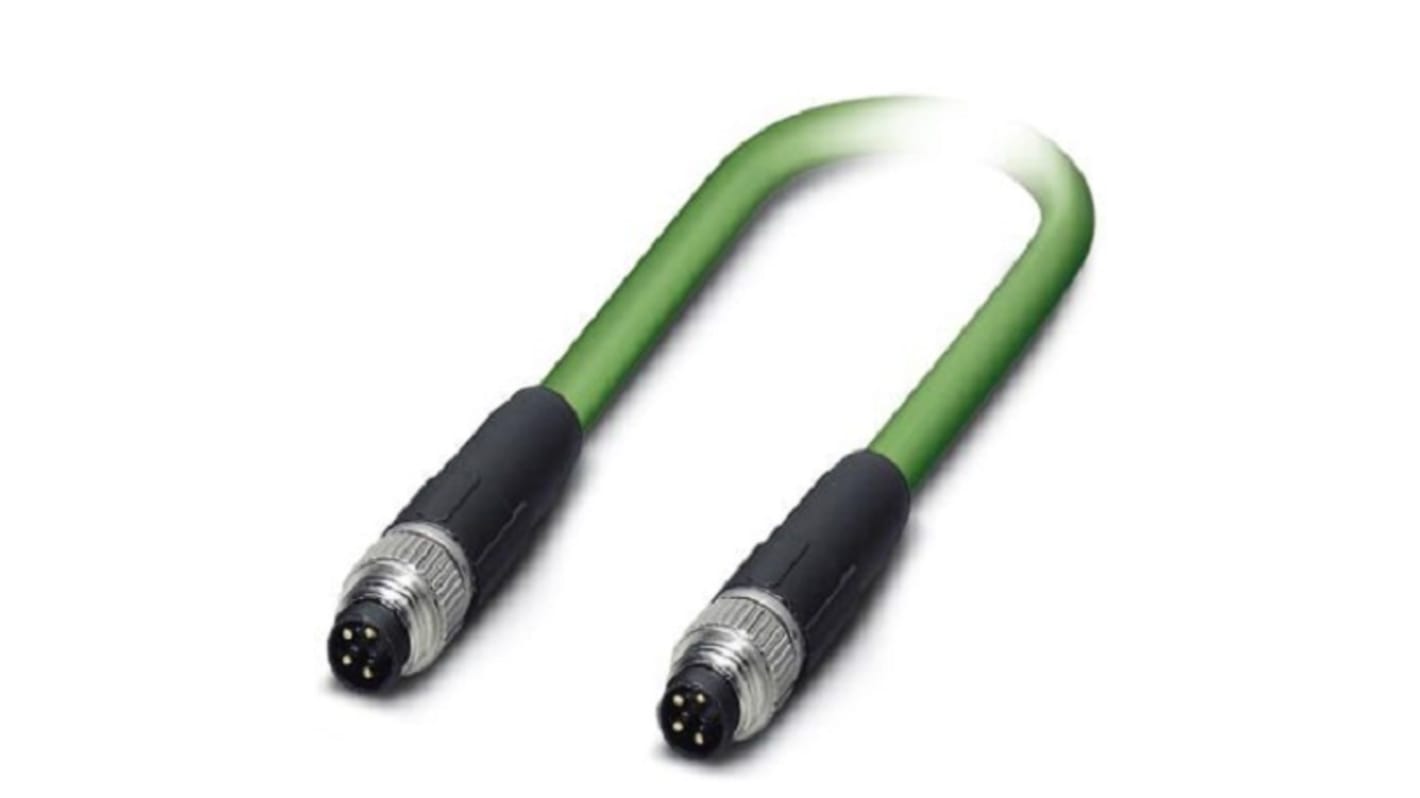

The Phoenix Contact shielded network cable PROFINET CAT5 (100 Mbps) rated with straight plug M8/IP65 & both ends, it is 2 m long and available in green color made of PVC.
IP 65 protection
100 mbps data transmission
Rated for more than 100 insertion/ withdrawal cycles
UV resistant
