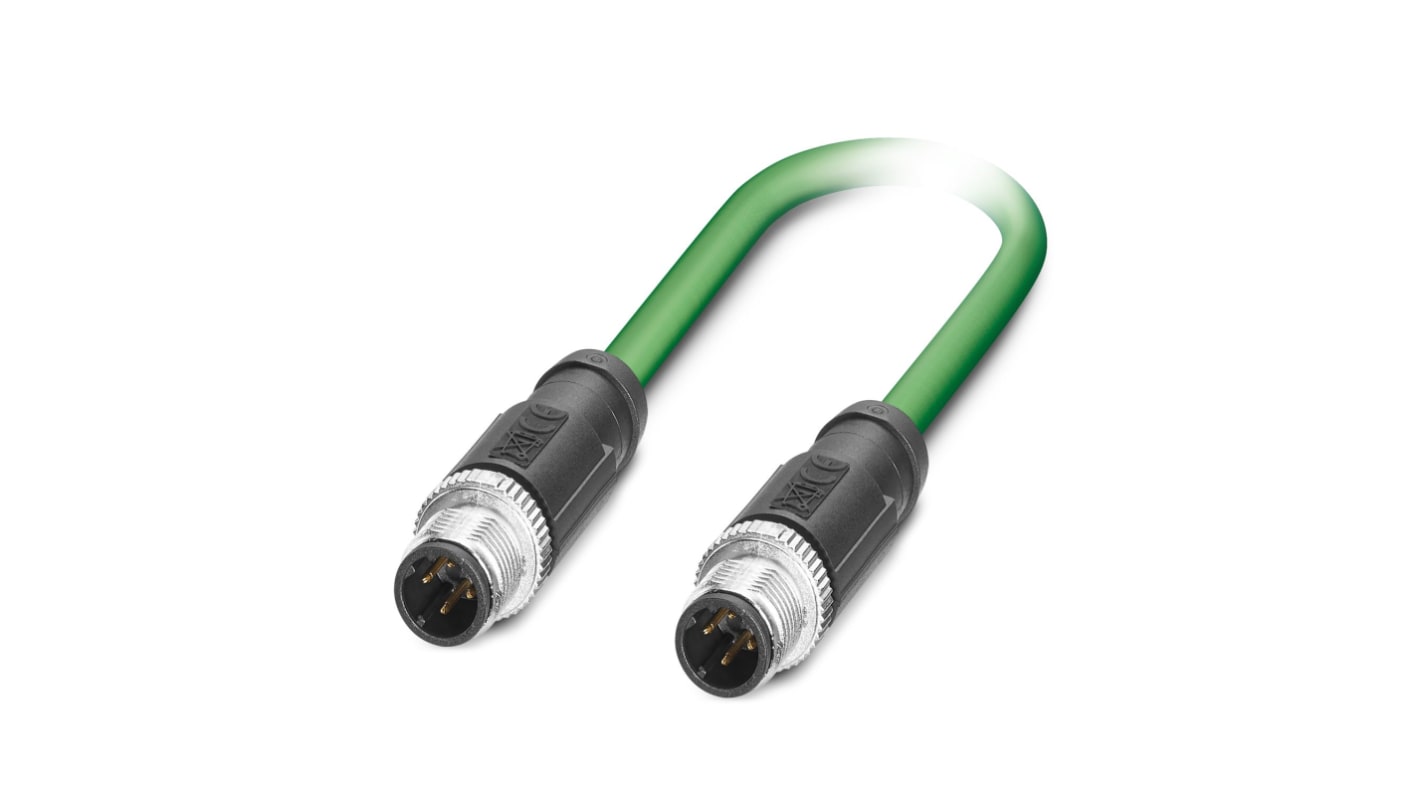

Phoenix Contact NBC, 1 m Cat5 Ethernet Cable, Green, Shielded 4 Screened Polyvinyl Chloride Sheath

RS Stock No.:: 255-8670
Mfr. Part No.:: 1407524
Manufacturer:: Phoenix Contact

Phoenix Contact NBC, 1 m Cat5 Ethernet Cable, Green, Shielded 4 Screened Polyvinyl Chloride Sheath

Subtotal (1 unit)*

MYR234.37

FREE delivery for orders over RM 500.00

In Stock

16 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR234.37

*price indicative

RS Stock No.:: 255-8670
Mfr. Part No.:: 1407524
Manufacturer:: Phoenix Contact

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Product Type	Ethernet Cable
	Series	NBC
	LAN Category	Cat5
	Cable Length	1m
	Sub Type	Cat5 Cable
	Shield Type	Shielded
	Screened/Unscreened	Screened
	Conductor Type	Stranded
	Jacket Material	Polyvinyl Chloride
	Jacket Colour	Green
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	90°C
	Core Strands	7
	Fire Behaviour	Self-Extinguishing
	Standards/Approvals	UL
	Conductor Material	Tin Plated Copper
	Cross Sectional Area	4 x 0.34 mm²
	Outside Diameter	6.5 mm
	Voltage	60 V
	Number of Cores	4

	Select all
	Brand Phoenix Contact
	Product Type Ethernet Cable
	Series NBC
	LAN Category Cat5
	Cable Length 1m
	Sub Type Cat5 Cable
	Shield Type Shielded
	Screened/Unscreened Screened
	Conductor Type Stranded
	Jacket Material Polyvinyl Chloride
	Jacket Colour Green
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 90°C
	Core Strands 7
	Fire Behaviour Self-Extinguishing
	Standards/Approvals UL
	Conductor Material Tin Plated Copper
	Cross Sectional Area 4 x 0.34 mm²
	Outside Diameter 6.5 mm
	Voltage 60 V
	Number of Cores 4

Datasheet - 1407524

COO (Country of Origin):: PL

Phoenix Contact Ethernet Cable, 1m Length, Cat5 LAN Category - 1407524

This PROFINET series Ethernet cable features a 6.5mm outer diameter and supports a voltage rating of 60V DC with a current rating of 4A. It meets the 100Mbps data transfer rate over PROFINET and EtherCAT CAT5 standards and uses self-extinguishing materials that comply with UL standards for safety.

Features & Benefits

• Shielded design to minimise interference

• Durable PVC outer sheath

• Pre-terminated for easy installation

Applications

• Suitable for PROFINET and EtherCAT® networking

• Ideal for automation and control systems

• Connects sensors and actuators in machinery

Can it handle high-speed data applications?

Yes, it supports 100Mbps data transfer.

Will it protect against environmental elements?

Yes, it is rated IP67 for water and dust resistance.

What is the bending radius for this cable?

The minimum bending radius for fixed installation is 3 x D.

Can it be used outdoors?

Yes, it is UV resistant based on UL 1581, Section 1200.
