Phoenix Contact SAC, 5 m Cat5 Ethernet Cable, Blue, Copper Braid 2 Polypropylene, Cross Linked Polyethylene Sheath
- RS Stock No.:
- 190-2082
- Mfr. Part No.:
- 1407362
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR395.45
FREE delivery for orders over RM 500.00
In Stock
- Plus 25 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR395.45 |
*price indicative
- RS Stock No.:
- 190-2082
- Mfr. Part No.:
- 1407362
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Product Type | Ethernet Cable | |
| Cable Length | 5m | |
| LAN Category | Cat5 | |
| Shield Type | Copper Braid | |
| Jacket Material | Polypropylene, Cross Linked Polyethylene | |
| Jacket Colour | Blue | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Core Strands | 7 | |
| Standards/Approvals | EAC | |
| Fire Behaviour | Halogen Free, Flame Retardant | |
| Voltage | 48 V | |
| Conductor Material | Bare Copper | |
| Number of Cores | 2 | |
| Outside Diameter | 6.4 mm | |
| Cross Sectional Area | 0.14 mm² | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Product Type Ethernet Cable | ||
Cable Length 5m | ||
LAN Category Cat5 | ||
Shield Type Copper Braid | ||
Jacket Material Polypropylene, Cross Linked Polyethylene | ||
Jacket Colour Blue | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Core Strands 7 | ||
Standards/Approvals EAC | ||
Fire Behaviour Halogen Free, Flame Retardant | ||
Voltage 48 V | ||
Conductor Material Bare Copper | ||
Number of Cores 2 | ||
Outside Diameter 6.4 mm | ||
Cross Sectional Area 0.14 mm² | ||
- COO (Country of Origin):
- PL

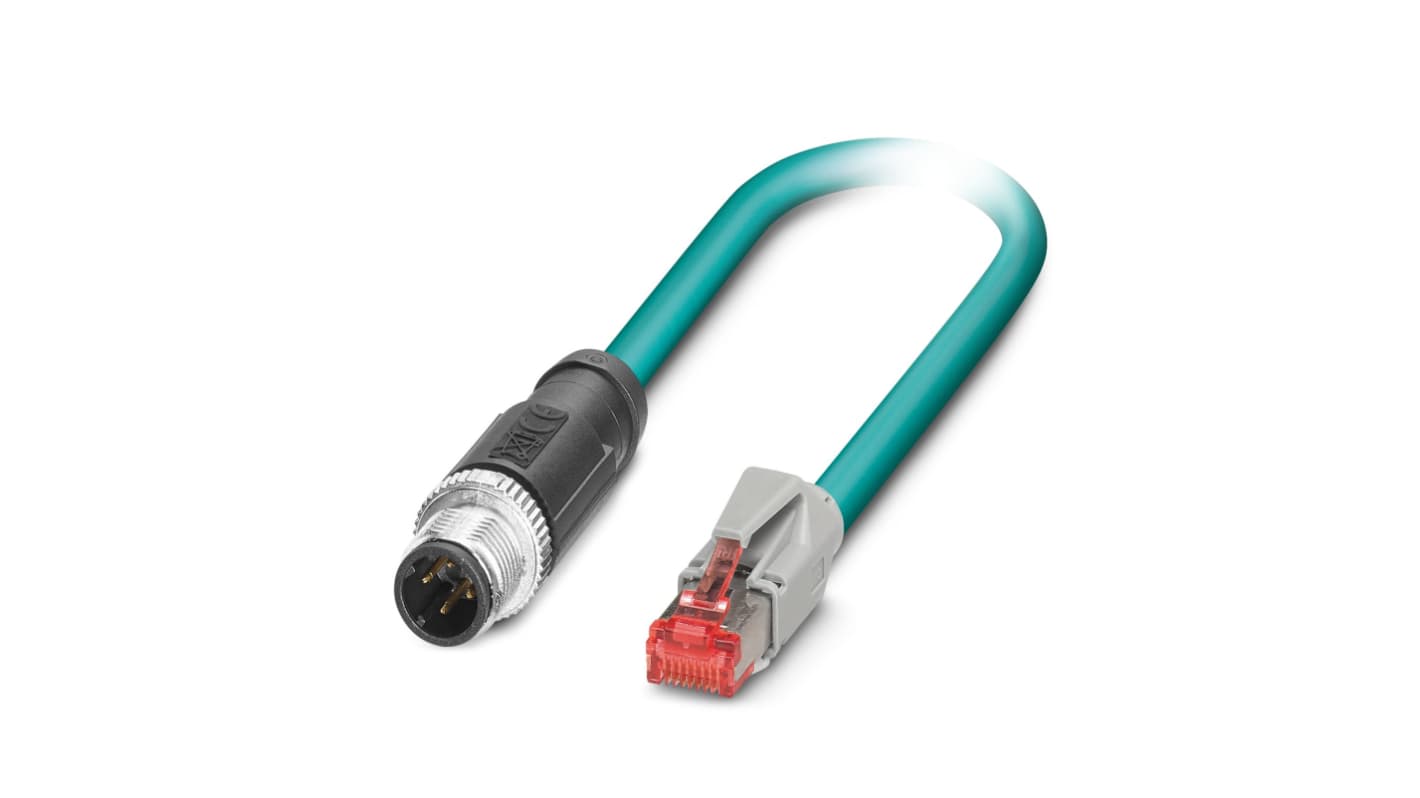

Phoenix Contact Sensor Actuator Cable, 1A Nominal Current Rating, 48V AC Voltage Rating - NBC-MSD/ 5,0-93E/R4AC SCO - 1407362
Use this sensor actuator cable from Phoenix Contact to transmit data signals between devices in your industrial workplace. It features an M12 connector on one end that plugs into your sensor. On the other end, there's an RJ45 adapter that you can connect to PLCs and computers for data logging and storage. A length of 5 metres makes this a suitable option for long runs. Its PUR sheath provides protection from mechanical impact and abrasion, making it useful in rugged environments.
This cable has highly conductive copper contacts to give you a reliable connection. It's a CAT5 type, so it can transmit data at a speed of up to 100Mbps, allowing you to send large packets of information in a short time. The conductors are twisted against each other in pairs to prevent EM and RF interference, delivering noiseless signal transmission. You'll find this unit used with production equipment, as well as on assembly lines.
Features & Benefits
• Nominal current rating of 1A for energy efficiency and low heat dissipation
• Suitable for transmitting AC and DC voltage signals for versatility
