Belden 7929A, 305 m Cat5e Ethernet Cable, Black Polyvinyl Chloride Sheath Screened, Shielded
- RS Stock No.:
- 176-8780
- Mfr. Part No.:
- 7929A 0101000
- Manufacturer:
- Belden
Subtotal (1 reel of 305 metres)*
MYR7,107.86
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 15 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | MYR7,107.86 | MYR23.304 |
*price indicative
- RS Stock No.:
- 176-8780
- Mfr. Part No.:
- 7929A 0101000
- Manufacturer:
- Belden
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Product Type | Ethernet Cable | |
| Series | 7929A | |
| Cable Length | 305m | |
| LAN Category | Cat5e | |
| Shield Type | Shielded | |
| Screened/Unscreened | Screened | |
| Conductor Type | Solid | |
| Jacket Colour | Black | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Fire Behaviour | UL1666 Vertical Riser | |
| Standards/Approvals | No | |
| Core Strands | 8 | |
| Conductor Material | Copper | |
| Number of Cores | 8 | |
| Outside Diameter | 14.48mm | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Product Type Ethernet Cable | ||
Series 7929A | ||
Cable Length 305m | ||
LAN Category Cat5e | ||
Shield Type Shielded | ||
Screened/Unscreened Screened | ||
Conductor Type Solid | ||
Jacket Colour Black | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Fire Behaviour UL1666 Vertical Riser | ||
Standards/Approvals No | ||
Core Strands 8 | ||
Conductor Material Copper | ||
Number of Cores 8 | ||
Outside Diameter 14.48mm | ||
- COO (Country of Origin):
- MX

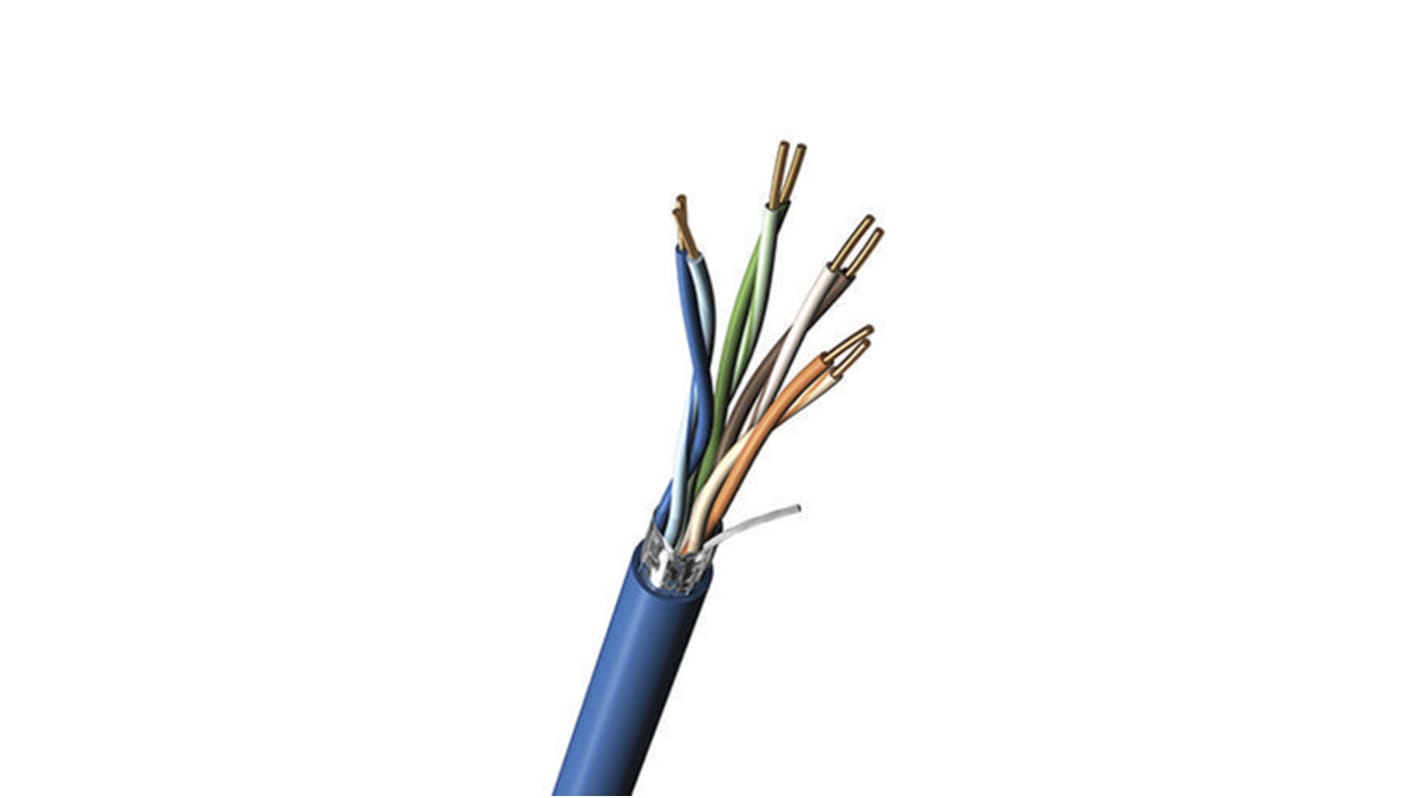

Four Cat 5e 24 AWG Bonded-Pairs solid bare copper conductors, polyolefin insulation, overall Beldfoil® shield (100% coverage), oil- and UV-resistant PVC jacket. Applications: Industrial Ethernet Cable, Harsh Environments, 200MHz Category 5e, Industrial Ethernet, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments, CMX - Outdoor, RJ-45 Compatible*
