Belden 7924A, 305 m Cat5e Ethernet Cable, Black Polyvinyl Chloride Sheath Unscreened, U/UTP

RS Stock No.:: 136-6334
Mfr. Part No.:: 7924A 0101000
Manufacturer:: Belden

Belden 7924A, 305 m Cat5e Ethernet Cable, Black Polyvinyl Chloride Sheath Unscreened, U/UTP

Bulk discount available

Subtotal (1 reel of 305 metres)*

MYR6,127.01

FREE delivery for orders over RM 500.00

In Stock

Plus 4 unit(s) shipping from 26 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 4	MYR6,127.01	MYR20.089
5 +	MYR5,042.54	MYR16.533

*price indicative

RS Stock No.:: 136-6334
Mfr. Part No.:: 7924A 0101000
Manufacturer:: Belden

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Series	7924A
	Product Type	Ethernet Cable
	LAN Category	Cat5e
	Cable Length	305m
	Shield Type	U/UTP
	Screened/Unscreened	Unscreened
	Conductor Type	Stranded
	Jacket Colour	Black
	Jacket Material	Polyvinyl Chloride
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	75°C
	Fire Behaviour	Flame Retardant
	Standards/Approvals	UL, NEMA WC-63.1
	Core Strands	7
	Outside Diameter	6.14 mm
	Conductor Material	Copper
	Number of Cores	8

	Select all
	Brand Belden
	Series 7924A
	Product Type Ethernet Cable
	LAN Category Cat5e
	Cable Length 305m
	Shield Type U/UTP
	Screened/Unscreened Unscreened
	Conductor Type Stranded
	Jacket Colour Black
	Jacket Material Polyvinyl Chloride
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 75°C
	Fire Behaviour Flame Retardant
	Standards/Approvals UL, NEMA WC-63.1
	Core Strands 7
	Outside Diameter 6.14 mm
	Conductor Material Copper
	Number of Cores 8

RoHS Status: Exempt

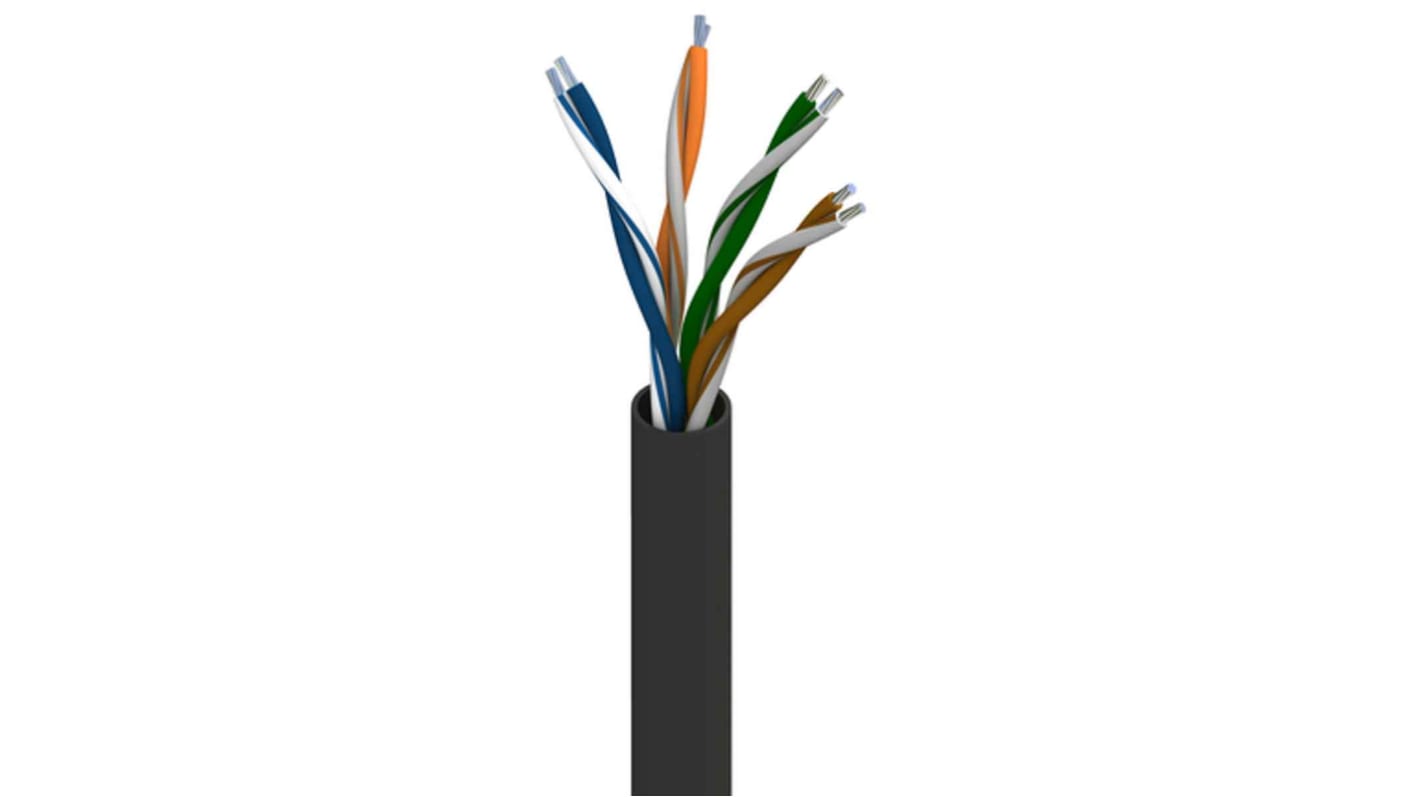

Belden Ethernet Cable, 24AWG, 6.14mm Outer Diameter - DataTuff Series - 7924A 0101000

Link up your PC and peripheral equipment to the internet using this Ethernet cable from Belden. It's a Cat5e type capable of a data transfer speed of 1000Mbps, ensuring high-speed communication between devices. To minimise signal loss, the cable has a Beldfoil shield that acts as a barrier to prevent EMI and RFI. The PVC outer jacket resists damage from exposure to UV light and oil, giving you long-lasting performance in challenging environments.

Features & Benefits

• Bare copper conductors enhance conductivity for reliable signal transmission

• Minimum bend radius of 6.4mm allows for installation around corners

• Reel length of 305m provides a sufficient supply for numerous jobs

Applications

• Gaming equipment

• Manufacturing industry

• Computer networking

• Domestic alarm systems

What type of signals does this cable support?

It supports commonly used Gigabit Ethernet, NTSC/PAL video, AES/EBU digital audio, AES51, 100BaseTX, 100BaseVG ANYLAN and RS-422. This makes it a versatile solution to handle many different networking tasks.
