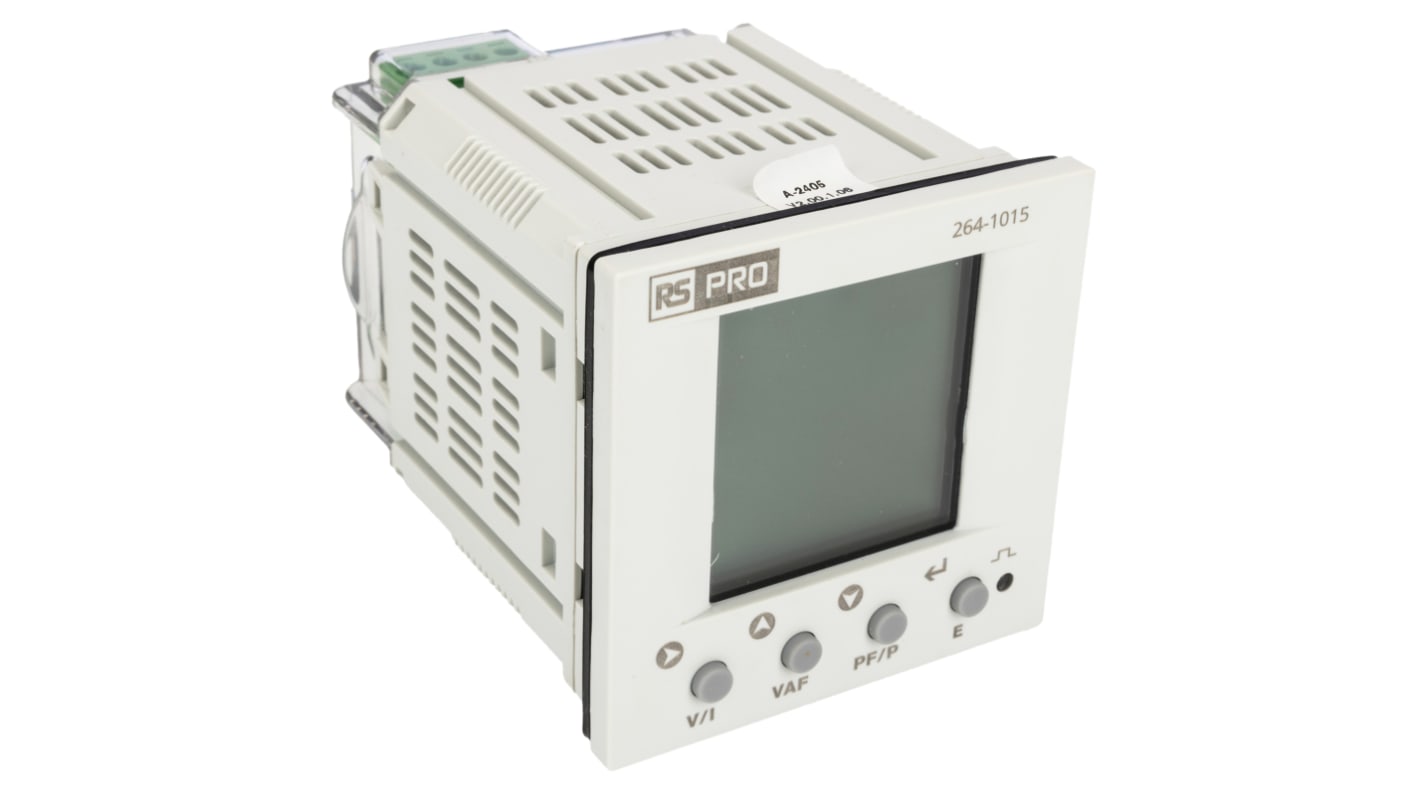

RS PRO 1, 3 Phase LCD Energy Meter, Type Energy Meter

RS Stock No.:: 264-1015
Manufacturer:: RS PRO

RS PRO 1, 3 Phase LCD Energy Meter, Type Energy Meter

Bulk discount available

Subtotal (1 unit)**

MYR626.27

26 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR500.00

Real time qty checker

Units	Per Unit
1 - 9	MYR626.27
10 +	MYR577.31

**price indicative

RS Stock No.:: 264-1015
Manufacturer:: RS PRO

RS PRO Single or 3-Phase Backlit Multi-Function Power Energy Meter, Pulse Output and Modus, DIN72 Panel Mounted

From RS PRO this is the panel mounted multi-function power / energy meter providing you with a wealth of benefits to accurately measure and monitor energy usage. With a white backlit LDC digital display complete with an 8-digit resolution providing clear readings in all light conditions plus quick select push buttons on the front of the energy meter fast access to a display page. The RS Pro digital multi-function energy meter is not only suitable for monitoring precise energy consumption but also for various other electrical readings plus is complete with true RMS measurement, pulse output, RS485 Modbus communication all housed within a compact DIN 72 casing.

Features & Benefits

Single phase L1, L2, L3 CT, 3-Phase 3 Wire, 3-Phase 4-wire connection

11 to 300 V Input voltage range

1.2 A, 6 A (Nominal 1.2) maximum current

RS485 communication

Modbus Protocol

1 x Pulse output

True RMS measurement

Multiple meter connection with BUS 32 (up to 255 with RS485 repeater)

High definition white backlit LCD display

Manual or auto scroll screen modes

Panel mounting with maximum 6 mm panel thickness

Polycarbonate UL94 V-0 housing, weighs 320 g

Screw clamp current input, voltage input, communication terminals

Easy operation and programming

Display Parameters

Voltage, L-L, L-N and average

Current – Phase, total and maximum demand

Power factor per phase and average

Current and voltage total harmonic distortion

Neutral current, calculated

Frequency

Hours run, hours and minutes

Power, active, reactive, and apparent

Power minimum/maximum demand – active, reactive, and apparent

Energy Active – active, reactive, and apparent

Import and export energy -active, reactive, and apparent

Applications

Monitoring energy consumption

Residential

Industrial and commercial utility applications

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Cutout Width	68mm
	Cutout Height	68mm
	Display Type	LCD
	Number of Phases	1, 3
	Number of Inputs	3 x (Current Transformers) 3 x (Voltage) and Neutral
	Pulse Output	Yes
	Number of Outputs	1 (Pulse)
	Communication Port Type	Modbus RS485
	Depth	90mm
	Digit Height	5 mm
	Meter Accuracy	±0.5 (Current) %, ±0.5 (Voltage) %, ±Class 1 (Active Energy)
	Minimum Temperature	-10°C
	Maximum Temperature	+55°C
	Meter Type	Energy Meter
	Measurement Range	19→519 (Phase) V ac, 45→65Hz, 5A, 11→300 (Phase and Neutral)V ac
	Minimum Measurement	19 (Phase) V ac, 11 (Phase and Neutral) V ac, 45 Hz, 0.2% Nominal
	Maximum Measurement	519 (Phase) V ac, 300 (Phase and Neutral) V ac, 6A, 65Hz
	Approvals	IEC/EN62053-21, IEC/EN62053-23, IEC/EN61326-1, IEC/EN55011 Class A, IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8, IEC/EN61000-4-11, IEC/EN61010
