RS PRO 1, 3 Phase LCD Energy Meter, Type Energy Meter | RS

RS PRO 1, 3 Phase LCD Energy Meter, Type Energy Meter

RS Stock No.:: 264-1012
Manufacturer:: RS PRO

RS PRO 1, 3 Phase LCD Energy Meter, Type Energy Meter

Bulk discount available

Subtotal (1 unit)**

MYR1,085.96

6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR500.00

Real time qty checker

Units	Per Unit
1 - 9	MYR1,085.96
10 +	MYR1,009.81

**price indicative

RS Stock No.:: 264-1012
Manufacturer:: RS PRO

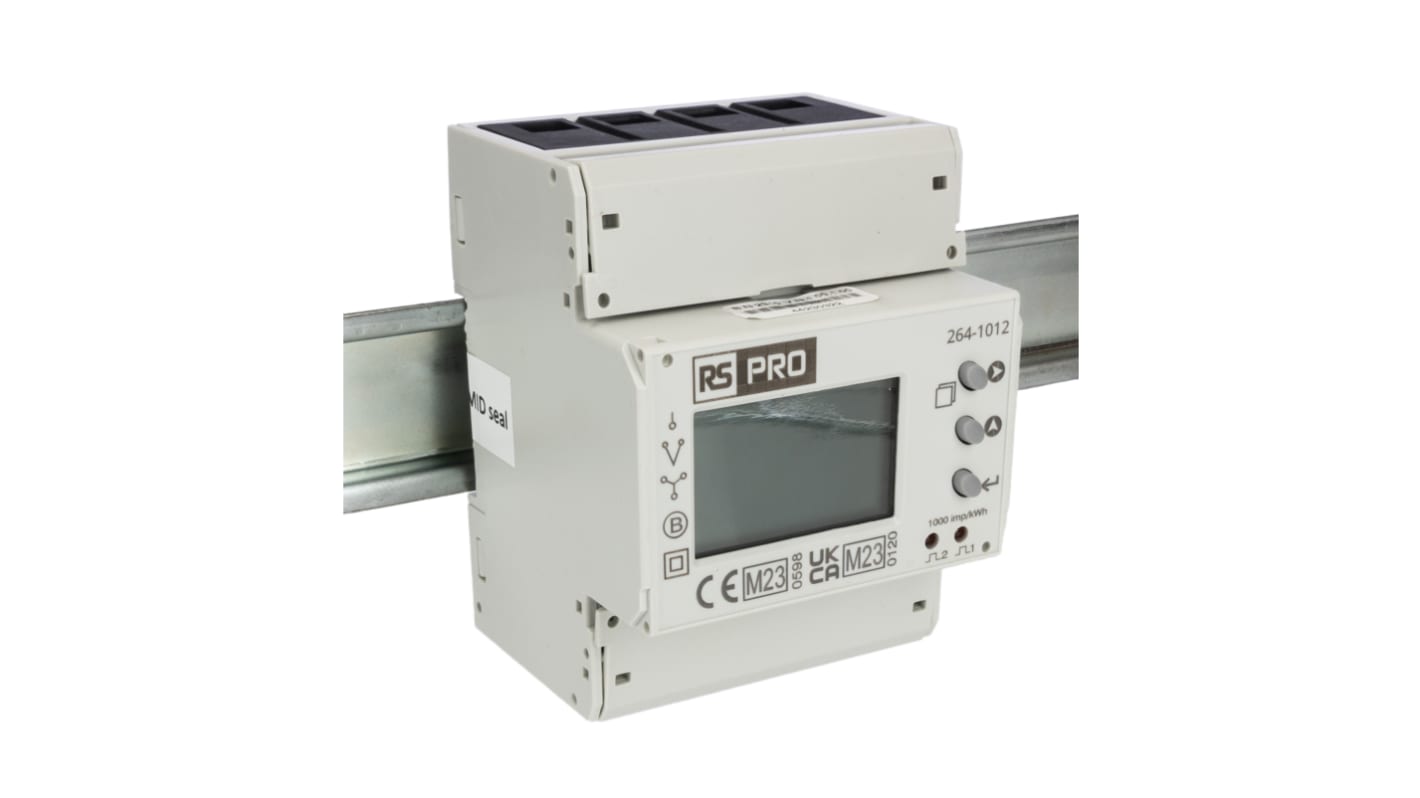

RS PRO 4-Module Backlit Multi-Function Power Energy Meter, Pulse Output and Modus, MID B + D Certified DIN Rail Mounted

From RS PRO this is the MID approved DIN Rail mounted multi-function power / energy meter providing you with a wealth of benefits to accurately measure and monitor energy usage. With a white backlit LDC digital display complete with clear readings in all light conditions plus quick select push buttons on the front of the energy meter fast access to a display page. The RS Pro digital multi-function energy meter is not only suitable for monitoring precise energy consumption but also for various other electrical readings plus has reversible input direction which can be fed from the top or bottom, a generator tariff mode and, single and 3-phase compatible. All complete with pulse output, RS485 Modbus communication all housed within 4-module DIN 43880 polycarbonate casing.

Features & Benefits

Single and 3-Phase compatible, 3 or 4-wire systems

MID B + D Certified

100 A maximum current, direct connection

Does not require external current transformers

RS485 communication

Modbus Protocol

Pulse output, Maximum current 100 mA, class A to IEC/EN62053-31

High-definition white backlit LCD display

Manual or auto scroll screen modes

Import and export active and reactive energy measurement

Will not affect standard import/export register readings

2 x Pulse outputs

Reversible input direction

Generator tariff mode, allows recoding of energy form a diesel generator and others

DIN Rail mounting with Snap-on 35 mm rail

Polycarbonate UL94 V-0 housing, weighs 400 g

Screw clamp / rising clamp current input, voltage input terminals

Easy operation and certified for billing purposes

Display Parameters

Import Active Energy (kWh) - per phase and total

Export Active Energy (kWh) - per phase and total

Import Reactive energy (kVArh) - per phase and total

Export Reactive energy (kVArh) - per phase and total

Apparent energy (kVA) - per phase and total

Voltage (V) Current (A) Active power (kW) - per phase and total

Reactive power (kVAr) - per phase and total

Apparent power (kVA) - per phase and total

Power factor (PF)

Frequency (Hz)

Generator tariff (kWh)

Active Power Max. Demand

Reactive Power Max. Demand

Apparent Power Max. Demand

Applications

Monitoring energy consumption

Residential

Industrial and commercial utility applications

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Cutout Width	70mm
	Cutout Height	90mm
	Display Type	LCD
	Number of Phases	1, 3
	Communication Port Type	Modbus RS485
	Pulse Output	Yes
	Number of Inputs	3 x (Current 100A Direct Connected) 3 x (Voltage) and Neutral
	Number of Outputs	2 (Pulse)
	Depth	66.3mm
	Digit Height	6.35 mm
	Meter Accuracy	±0.5 (Current) %, ±0.5 (Voltage) %, ±Class B (Active Energy)
	Minimum Temperature	-25°C
	Maximum Temperature	+55°C
	Meter Type	Energy Meter
	Measurement Range	150→495 (Phase) V ac, 45→65Hz, 40 mA→100A, 85→285 (Phase and Neutral)V ac
	Minimum Measurement	150 (Phase) V ac, 85 (Phase and Neutral) V ac, 45 Hz, 40mA
	Approvals	IEC/EN62053-21, IEC/EN50470-3, IEC/EN62053-23, IEC/EN50470, IEC/EN61326-1, IEC/EN55011 Class A, IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8, IEC/EN61000-4-11, IEC/EN50470-1/3, IEC/EN61010, IEC/EN62053-31
	Maximum Measurement	495 (Phase) V ac, 285 (Phase and Neutral) V ac, 100A, 65Hz

	Select all
	Brand RS PRO
	Cutout Width 70mm
	Cutout Height 90mm
	Display Type LCD
	Number of Phases 1, 3
	Communication Port Type Modbus RS485
	Pulse Output Yes
	Number of Inputs 3 x (Current 100A Direct Connected) 3 x (Voltage) and Neutral
	Number of Outputs 2 (Pulse)
	Depth 66.3mm
	Digit Height 6.35 mm
	Meter Accuracy ±0.5 (Current) %, ±0.5 (Voltage) %, ±Class B (Active Energy)
	Minimum Temperature -25°C
	Maximum Temperature +55°C
	Meter Type Energy Meter
	Measurement Range 150→495 (Phase) V ac, 45→65Hz, 40 mA→100A, 85→285 (Phase and Neutral)V ac
	Minimum Measurement 150 (Phase) V ac, 85 (Phase and Neutral) V ac, 45 Hz, 40mA
	Approvals IEC/EN62053-21, IEC/EN50470-3, IEC/EN62053-23, IEC/EN50470, IEC/EN61326-1, IEC/EN55011 Class A, IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8, IEC/EN61000-4-11, IEC/EN50470-1/3, IEC/EN61010, IEC/EN62053-31
	Maximum Measurement 495 (Phase) V ac, 285 (Phase and Neutral) V ac, 100A, 65Hz
