Product Details
Acti9 Isobar Distribution Boards
Acti9 Isobar A and B type Distribution Board is a complete range of distribution boards for commercial and industrial applications
A type
Single phase distribution boards with 125A rating
Standard distribution boards up to 24 ways
Terminal block for feeding up to 100A
Option of switching outgoing neutral on all boards using distributed neutral kit
Single pole RCBO for new or retrofit maintaining device density
Knockouts for cable gland and conduit mixed to suit the installation needs without loss of space
Standard distribution boards up to 24 ways
Terminal block for feeding up to 100A
Option of switching outgoing neutral on all boards using distributed neutral kit
Single pole RCBO for new or retrofit maintaining device density
Knockouts for cable gland and conduit mixed to suit the installation needs without loss of space
B type
3 phase distribution boards with 250 rating
Standard distribution boards up to 24 ways
Option of switching outgoing neutral on all boards using distributed neutral kit
Single pole RCBO for new or retrofit maintaining device density
Split neutral bars
Removable gland plates
Removable insulated pan assembly
Standard distribution boards up to 24 ways
Option of switching outgoing neutral on all boards using distributed neutral kit
Single pole RCBO for new or retrofit maintaining device density
Split neutral bars
Removable gland plates
Removable insulated pan assembly

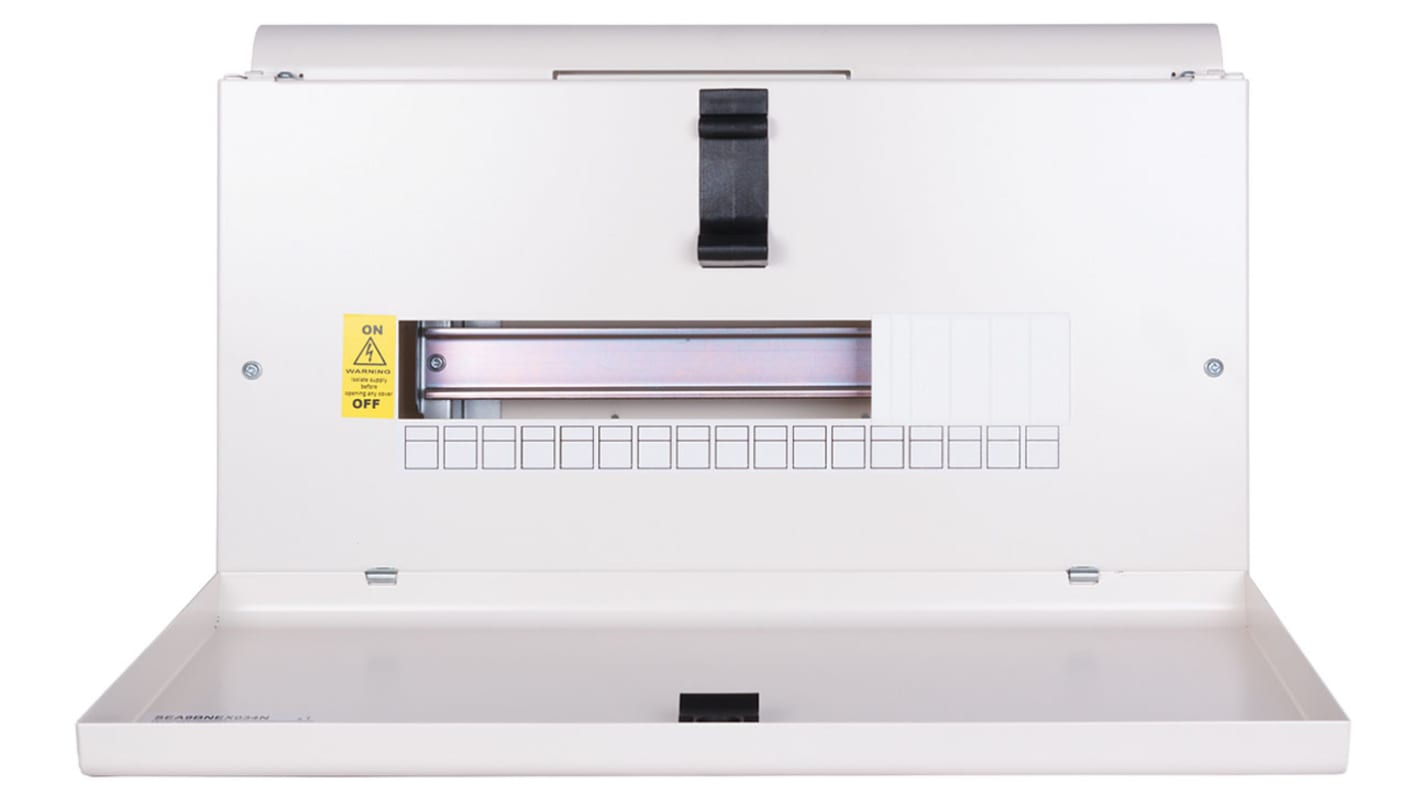

Schneider Electric SEA9 Series Distribution Board, 1 and 3-Phase, 4 Outgoing Ways - SEA9BNEX034N
This distribution board by Schneider Electric is designed for standard single-phase electrical setups. It provides a reliable solution for extending low voltage switchgear and control gear assemblies. The distribution board features a plain cover for additional wiring space and can accommodate devices up to 17 x 18mm poles. With a polyester powder coated finish in RAL 9001, this product ensures durability and functionality in various applications.
Features & Benefits
• Extension box with plain cover for extra wiring space
• Accommodates devices up to 17 x 18mm poles
• Durable polyester powder coated finish
• Accommodates devices up to 17 x 18mm poles
• Durable polyester powder coated finish
Applications
• Extending low voltage switchgear and control gear assemblies
• Suitable for Isobar 3-phase distribution setups
• Suitable for Isobar 3-phase distribution setups
Can it accommodate 4-way distribution setups?
Yes, the distribution board can support 4-way configurations.
Will it fit standard DIN rail devices?
Yes, it is compatible with DIN rail devices up to 17 x 18mm poles.
Is it suitable for extending Isobar distribution setups?
Yes, this product is specifically designed for extending Isobar 3-phase distribution setups.
Specifications
Attribute | Value |
---|---|
Number of Outgoing Ways | 4 |
Electrical Phase | 1, 3 |
Range | Acti 9 |
Series | SEA9 |
Better World Verification | Green Premium |
Better World Product | Yes |
