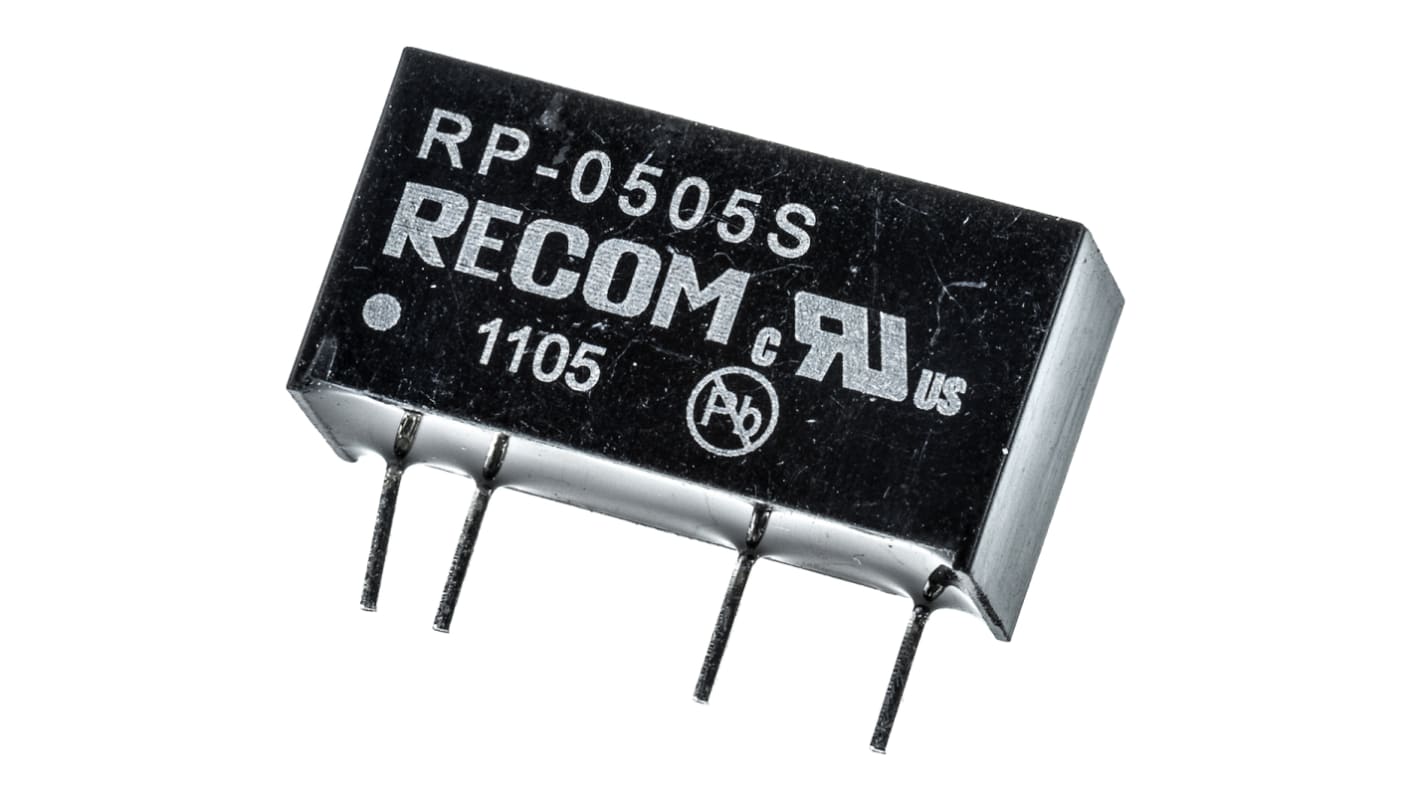

Recom RP DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min

The Recom RP series has very high isolation of 5.2 kVDC in a compact size. The DC/DC converters are EN-60601-1 certified, making them suitable for medical as well as IGBT driver applications.

Industrial standard pin out
Single and dual output options
250Vac rated
5.2kVdc isolation makes it ideal for telecom and safety applications
UL94V-0 package material
High efficiency (80% typ)
Short circuit protected.
Capacitor input filter

Operating temperature is without derating.

Conforms to EN60950-1, UL609501-1, EN60601-1

Alter the voltage supply to your equipment using this DC-DC converter from RECOM. It provides a continuous output voltage of 5V DC, so is ideal for use with low-power equipment. To soften the blow of dangerous power spikes, the device features protection against short circuits. Installation is snappy thanks to industry-standard pin connections that make the unit simple to solder to a circuit board. A wide operating temperature range of -40°C to +90°C makes it suitable for use in demanding industrial environments.

• Compact dimensions of 19.65 (L) x 10.2 (W) x 7.02mm (D) make it a good fit for busy control cabinets
• Efficiency of 70 to 72% for minimal power loss, even when operating at full load capacity
• Flame-retardant casing for safety in the event of a fire

• Medical and dental facilities
• Automated manufacturing
• Power supply networks

This converter has an MTBF of 928,000 hours at +25°C and 150,000 hours at +85°C, so you can rest assured it will deliver long service.
