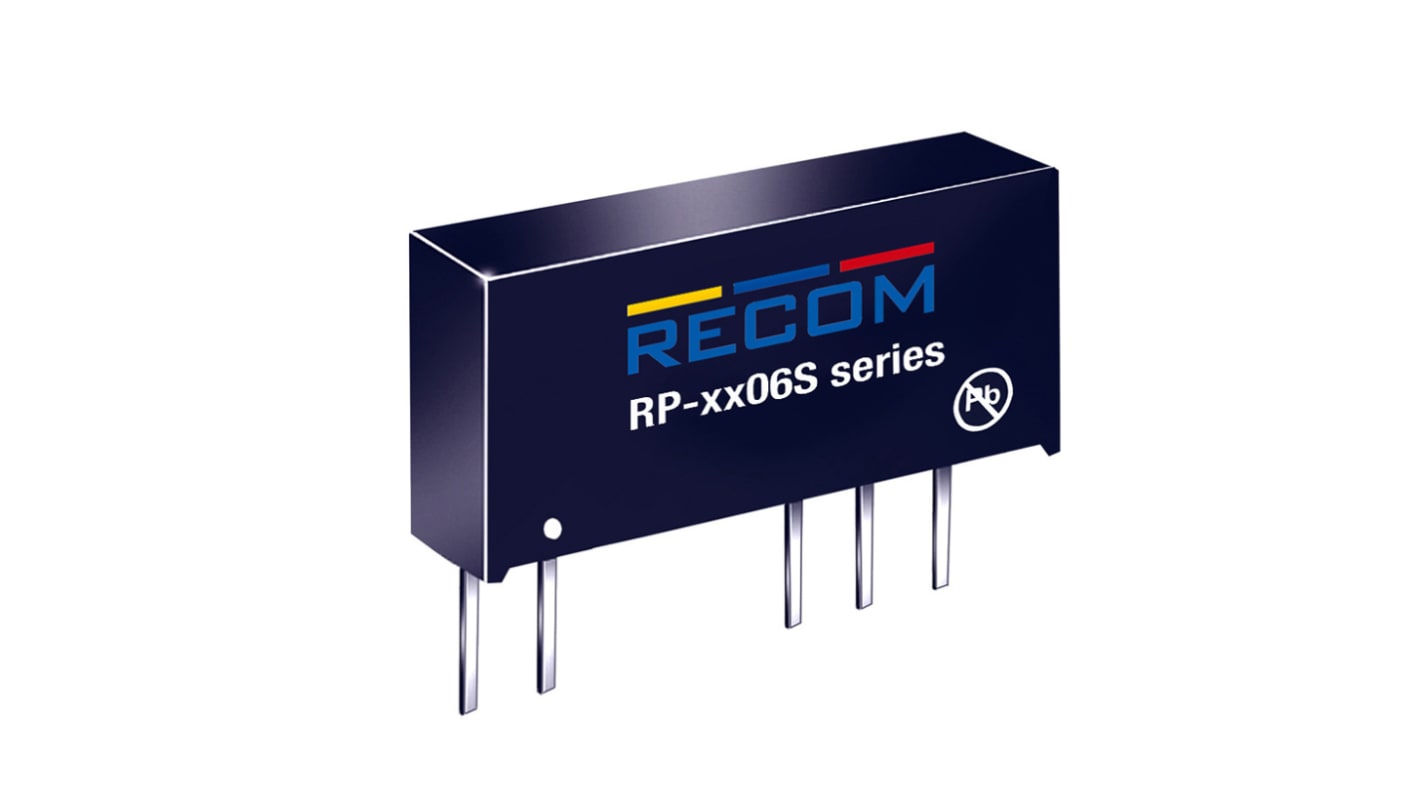

Recom RP DC-DC Converter, 6V dc/ 167mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +80°C Max Temp -40°C Min
- RS Stock No.:
- 165-5092
- Mfr. Part No.:
- RP-0506S
- Manufacturer:
- Recom
Subtotal (1 unit)**
MYR67.12
43 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 + | MYR67.12 |
**price indicative
- RS Stock No.:
- 165-5092
- Mfr. Part No.:
- RP-0506S
- Manufacturer:
- Recom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 6V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 167mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP7 | |
| Isolation Voltage | 5.2kV dc | |
| Width | 7.05mm | |
| Length | 19.65mm | |
| Depth | 10.2mm | |
| Series | RP | |
| Load Regulation | ±15% | |
| Minimum Temperature | -40°C | |
| Medical Approved | Yes | |
| Maximum Temperature | +80°C | |
| Standards Met | cRUus, IEC/EN 60601-1, IEC/EN 60950-1, UL 60950-1 | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 6V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 167mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP7 | ||
Isolation Voltage 5.2kV dc | ||
Width 7.05mm | ||
Length 19.65mm | ||
Depth 10.2mm | ||
Series RP | ||
Load Regulation ±15% | ||
Minimum Temperature -40°C | ||
Medical Approved Yes | ||
Maximum Temperature +80°C | ||
Standards Met cRUus, IEC/EN 60601-1, IEC/EN 60950-1, UL 60950-1 | ||
