TRACOPOWER TEN 25 DC-DC Converter, ±15V dc/ ±1A Output, 18 → 36 V dc Input, 25W, Through Hole, +85°C Max Temp

RS Stock No.:: 441-4087
Mfr. Part No.:: TEN 25-2423
Manufacturer:: TRACOPOWER

TRACOPOWER TEN 25 DC-DC Converter, ±15V dc/ ±1A Output, 18 → 36 V dc Input, 25W, Through Hole, +85°C Max Temp

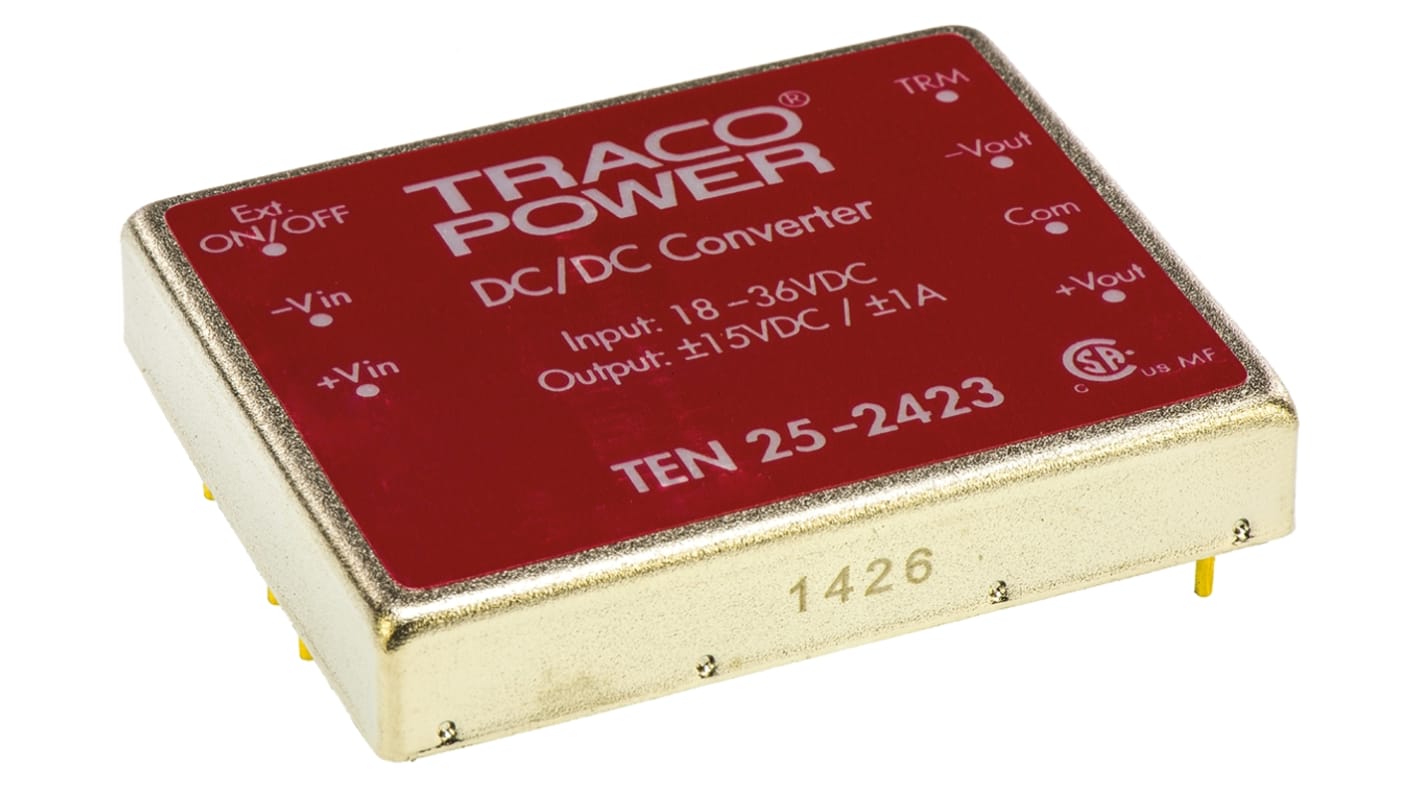

This image is representative of the product range

Bulk discount available

Price Each**

MYR313.82

1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 1	MYR313.82
2 - 9	MYR307.54
10 +	MYR301.40

**price indicative

RS Stock No.:: 441-4087
Mfr. Part No.:: TEN 25-2423
Manufacturer:: TRACOPOWER

Traco 25W & 30W Single/Dual Output Regulated Isolated DC-DC Converter - TEN 25 Series

5W & 30W single/dual output regulated isolated DC-DC converter modules with a high power density and input voltage range. These regulated isolated DC-DC converter modules have a high efficiency which enables a safe operating temperature range of -40°C to +71°C. Typical applications for these regulated isolated DC-DC converters include industrial electronics, battery operated equipment and distributed power systems.

Products not recommended for new designs please refer to the alternative at the bottom of the page
Wide 2:1 input range
Continuous short circuit protection
Input filtering to EN 55022 Class A and FCC Level A without external components
Remote on/off
Shielded metal case with insulated baseplate
Industry standard-pinout

Standards

UL /cUL 60950, IEC/EN 60950 compliance up to 60 VDC input voltage (SELV limit)

Approvals

cUL/UL , IEC/EN, CSA File No. 226037

TRACOPOWER TEN 25 Series DC-DC Converter, 0.89 Efficiency, 1.5kV DC Isolation Voltage - TEN 25-2423

This DC-DC converter is designed to deliver a stable voltage output for various applications. Its wide input range ensures consistent performance across numerous industrial environments. The isolation feature enhances safety, making it suitable for sensitive electronic components in electrical and mechanical systems.

Features & Benefits

• Wide input voltage range accommodates diverse power supply options
• High efficiency up to 89% reduces energy loss
• Operating temperature range of -40°C to +85°C enables use in demanding conditions
• Remote On/Off functionality allows for easy control
• Continuous short circuit protection promotes device longevity
• ±15 V DC output supports various electronic applications

Applications

• Used in industrial electronics for improved system reliability
• Ideal for communication systems that require stable power
• Compatible with battery-operated equipment for enhanced power efficiency
• Suitable for distributed power systems to ensure robust connectivity

What input voltage range does it support?

The converter supports an input voltage range from 18 V to 36 V DC.

How does it handle short circuits?

It includes continuous short circuit protection, allowing for automatic recovery.

Can it operate in extreme temperatures?

Yes, it functions effectively within a temperature range of -40°C to +85°C.

Is it suitable for dual output applications?

The converter is designed to provide dual outputs, accommodating varied project requirements.

What is the expected life span in terms of reliability?

The converter has a calculated mean time between failures (MTBF) of over 550,000 hours under benign conditions.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Approvals

UL 1950; EN 60950

Attribute	Value
Output Voltage	±15V dc
Input Voltage Range	18 → 36 V dc
Power Rating	25 W, 30W
Input Voltage Nominal	24 V dc
Output Current	±1A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Output Voltage Adjustment Range	±10%
Package	1.6 x 2 in
Isolation Voltage	1.5kV dc
Length	40.6mm
Depth	9.5mm
Width	50.8mm
Series	TEN 25
Load Regulation	±2%
Maximum Temperature	+85°C
Minimum Temperature	-40°C
Efficiency	89%
