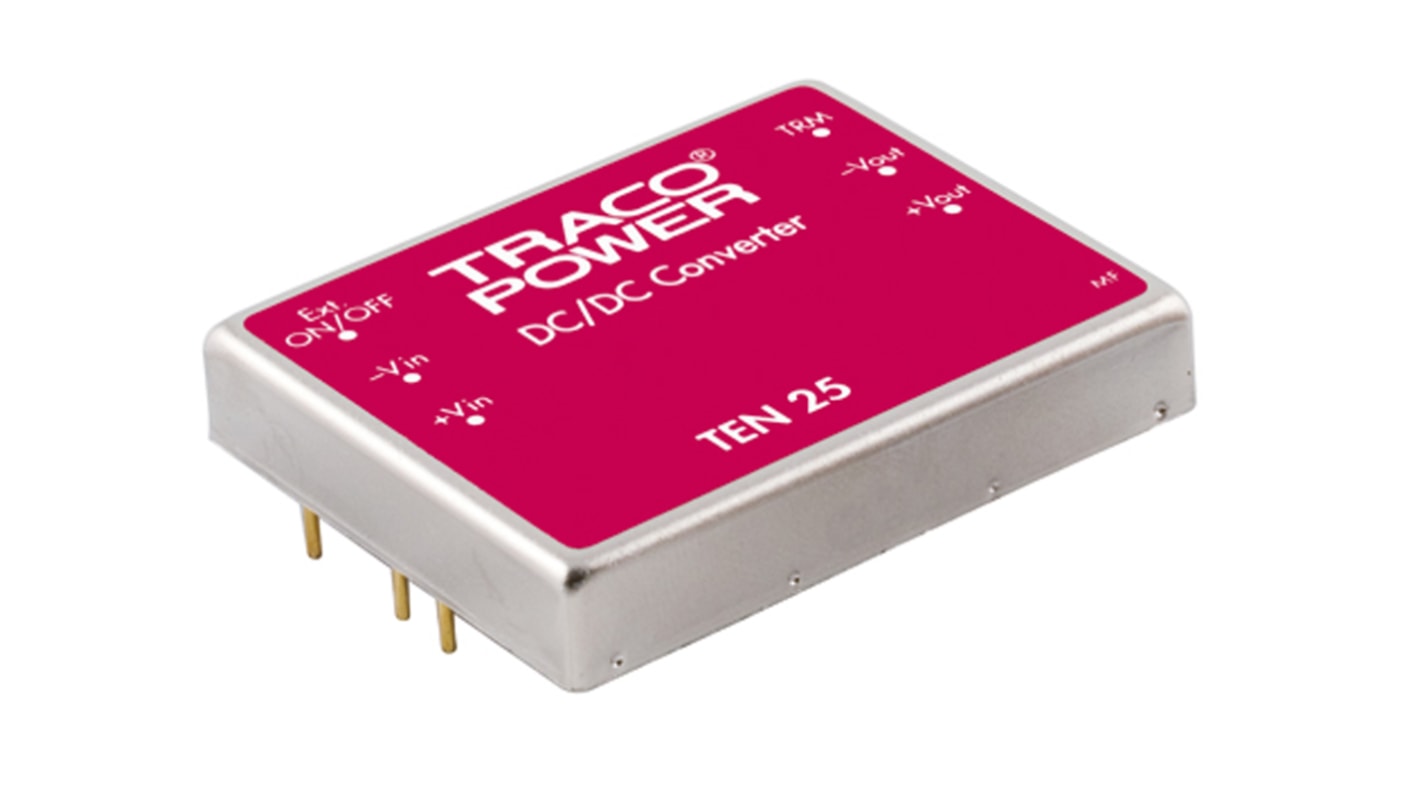

TRACOPOWER TEN 25 DC-DC Converter, ±12V dc/ ±1.25A Output, 18 → 36 V dc Input, 25W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-5514
- Mfr. Part No.:
- TEN 25-2422
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 5 units)**
MYR1,718.15
Temporarily out of stock - back order for despatch 08/10/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Tube(s) | Per Tube | Per Unit** |
---|---|---|
1 - 1 | MYR1,718.15 | MYR343.63 |
2 - 3 | MYR1,680.35 | MYR336.07 |
4 + | MYR1,644.25 | MYR328.85 |
**price indicative
- RS Stock No.:
- 166-5514
- Mfr. Part No.:
- TEN 25-2422
- Manufacturer:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | ±12V dc | |
Input Voltage Range | 18 → 36 V dc | |
Power Rating | 25 W, 30W | |
Input Voltage Nominal | 24 V dc | |
Output Current | ±1.25A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 2 | |
Package | 1.6 x 2 in | |
Isolation Voltage | 1.5kV dc | |
Depth | 9.5mm | |
Width | 50.8mm | |
Length | 40.6mm | |
Series | TEN 25 | |
Load Regulation | ±2% | |
Efficiency | 89% | |
Minimum Temperature | -40°C | |
Maximum Temperature | +85°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 25 W, 30W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±1.25A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package 1.6 x 2 in | ||
Isolation Voltage 1.5kV dc | ||
Depth 9.5mm | ||
Width 50.8mm | ||
Length 40.6mm | ||
Series TEN 25 | ||
Load Regulation ±2% | ||
Efficiency 89% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
