Phoenix Contact QUINT POWER DC/DC Converter, 24V dc/ 1.3 A, 24V dc Input, 12V Input, DIN Rail 30 W, 70 °C Max Temp -25
- RS Stock No.:
- 239-3630
- Distrelec Article No.:
- 303-09-452
- Mfr. Part No.:
- 1066703
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR585.76
FREE delivery for orders over RM 150.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR585.76 |
*price indicative
- RS Stock No.:
- 239-3630
- Distrelec Article No.:
- 303-09-452
- Mfr. Part No.:
- 1066703
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Output Voltage 1 | 24V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 12V | |
| Maximum Input Voltage | 24V dc | |
| Output Current 1 | 1.3A | |
| Mount Type | DIN Rail | |
| Number of Outputs | 5 | |
| MTBF | 1999348h | |
| Ripple and Noise | 20mV Pk-Pk | |
| Output Voltage Adjustment Range | 24 to 28 V dc | |
| Isolation Voltage | 2.6kV | |
| Maximum Output Power | 30W | |
| Standards/Approvals | UL 61010-2-201, UL 1310, UL 121201 & CSA C22.2, UL 61010-1, IEC 61010-2-201, IEC 61010-1 | |
| Weight | 224g | |
| Length | 90mm | |
| Depth | 90mm | |
| Width | 22.5mm | |
| Series | QUINT POWER | |
| Minimum Operating Temperature | -25°C | |
| Efficiency | 91.7% | |
| Maximum Operating Temperature | 70°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Output Voltage 1 24V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 12V | ||
Maximum Input Voltage 24V dc | ||
Output Current 1 1.3A | ||
Mount Type DIN Rail | ||
Number of Outputs 5 | ||
MTBF 1999348h | ||
Ripple and Noise 20mV Pk-Pk | ||
Output Voltage Adjustment Range 24 to 28 V dc | ||
Isolation Voltage 2.6kV | ||
Maximum Output Power 30W | ||
Standards/Approvals UL 61010-2-201, UL 1310, UL 121201 & CSA C22.2, UL 61010-1, IEC 61010-2-201, IEC 61010-1 | ||
Weight 224g | ||
Length 90mm | ||
Depth 90mm | ||
Width 22.5mm | ||
Series QUINT POWER | ||
Minimum Operating Temperature -25°C | ||
Efficiency 91.7% | ||
Maximum Operating Temperature 70°C | ||
- COO (Country of Origin):
- CN

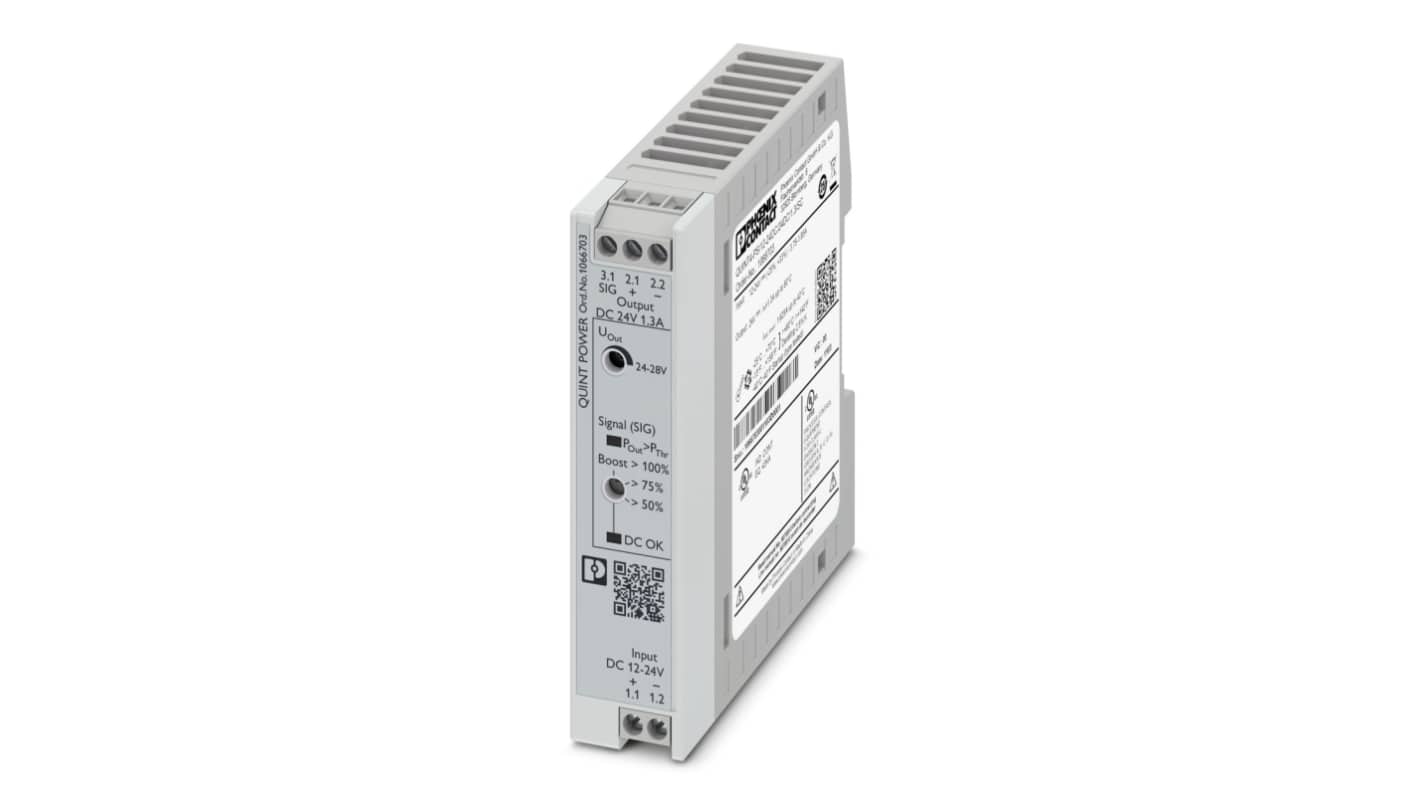

The Phoenix Contact primary-switched DC/DC converter, QUINT POWER, DIN rail mounting, Screw connection having input of 12 V DC - 24 V DC and output is 24 V DC / 1.3 A. In the power range of up to 100 W, QUINT POWER provides superior system availability in the smallest size. Preventative function monitoring and exceptional power reserves are available for applications in the low-power range.
Most powerful output side that is easy system expansion, reliable heavy load start-up and miniature circuit breaker tripping
Most comprehensive signalling it preventive function monitoring reports critical operating states before errors occur
Free selection between Push-in and screw connection
