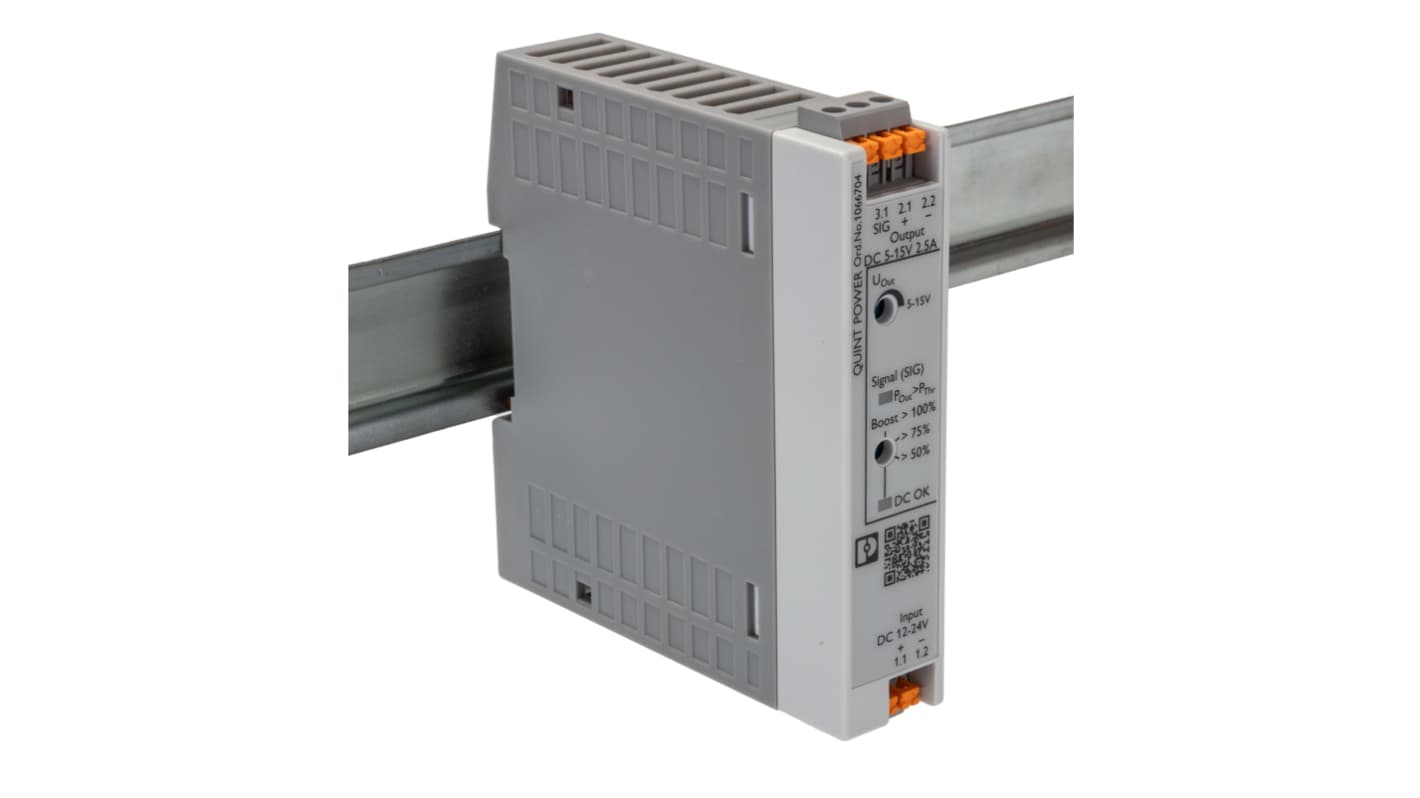

Phoenix Contact QUINT POWER DC/DC Converter, 12V dc/ 2.5 A, 24V dc Input, 12V dc Input, DIN Rail 30 W, 70 °C Max Temp
- RS Stock No.:
- 239-3631
- Distrelec Article No.:
- 303-09-453
- Mfr. Part No.:
- 1066704
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)*
MYR571.02
FREE delivery for orders over RM 150.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 34 unit(s) shipping from 16 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR571.02 |
*price indicative
- RS Stock No.:
- 239-3631
- Distrelec Article No.:
- 303-09-453
- Mfr. Part No.:
- 1066704
- Manufacturer:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 24V dc | |
| Minimum Input Voltage | 12V dc | |
| Output Current 1 | 2.5A | |
| Mount Type | DIN Rail | |
| Number of Outputs | 5 | |
| Output Voltage Adjustment Range | 5 to 15 V dc | |
| Ripple and Noise | 20mV Pk-Pk | |
| Isolation Voltage | 1.2kV | |
| Maximum Output Power | 30W | |
| Length | 22.5mm | |
| Weight | 172g | |
| Standards/Approvals | SIQ CB-Scheme (IEC 61010-1,IEC 61010-2-201), UL Listed (UL 61010-1,UL 61010-2-201,UL 1310 Class 2 Power Units), ANSI/UL 121201 Class | |
| Depth | 106mm | |
| Series | QUINT POWER | |
| Width | 90mm | |
| Maximum Operating Temperature | 70°C | |
| Efficiency | 92.2% | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 24V dc | ||
Minimum Input Voltage 12V dc | ||
Output Current 1 2.5A | ||
Mount Type DIN Rail | ||
Number of Outputs 5 | ||
Output Voltage Adjustment Range 5 to 15 V dc | ||
Ripple and Noise 20mV Pk-Pk | ||
Isolation Voltage 1.2kV | ||
Maximum Output Power 30W | ||
Length 22.5mm | ||
Weight 172g | ||
Standards/Approvals SIQ CB-Scheme (IEC 61010-1,IEC 61010-2-201), UL Listed (UL 61010-1,UL 61010-2-201,UL 1310 Class 2 Power Units), ANSI/UL 121201 Class | ||
Depth 106mm | ||
Series QUINT POWER | ||
Width 90mm | ||
Maximum Operating Temperature 70°C | ||
Efficiency 92.2% | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- CN
Phoenix Contact QUINT POWER Series DC-DC Converter, 12V DC Output Voltage, 30W Power Rating - 1066704
This DC-DC converter is intended for effective power management across a range of industrial applications. It operates within an input voltage range of 12 to 24V DC, delivering a consistent output voltage of 12V DC. With a power rating of 30W, this device meets critical voltage requirements, making it a key component for automation, electronics, and electrical sectors.
Features & Benefits
• Efficiency of 92.2% reduces energy loss
• Designed for DIN rail mounting for straightforward installation
• Wide input voltage range provides flexibility
• Complies with EN 61000-6-2 and EN 61000-6-3 standards
• Temperature operating range from -25 to 70°C
• Capable of reliably delivering an output current of 2.5A
Applications
• Power supply in automation systems
• Suitable for circuit protection and maintenance tasks
• Used in control cabinets for industrial equipment
• Provides power for electronic devices
• Employed in extensive monitoring and control systems
How is it mounted for installation?
The device is designed for DIN rail mounting, ensuring easier setup and integration.
What compliance standards does it meet?
It adheres to EN 61000-6-2 and EN 61000-6-3 standards, confirming its performance.
Can it handle fluctuating input voltages?
Yes, it accommodates a broad input voltage range of 12 to 24 V DC.
