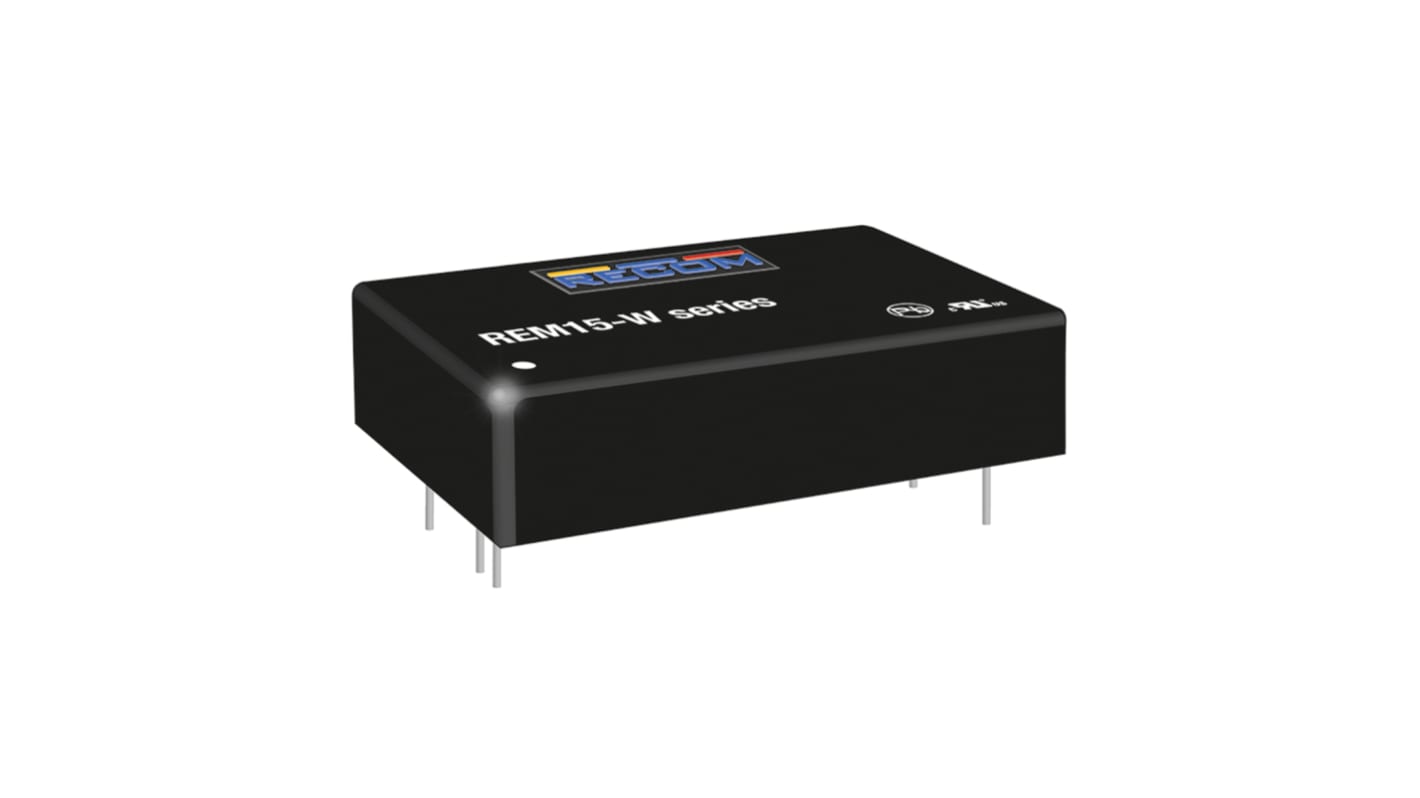

Name: Recom REM15-W DC-DC Converter, 12V dc/ 1.25A Output, 9 → 36 V dc Input, 15W, Through Hole, +105°C Max Temp -40°C
Brand: Recom
SKU: 180-9221
Price: 3639.72 MYR
Availability: BackOrder

Essential and Operational Technologies

These cookies make our website work. This includes product images and videos, functionality for the basket, logging in, remembering your username, registration and My Account.

We use optimisation cookies to test new features and designs on our website. The information collected helps us improve our website and our customers' experience.

Advertising

These cookies are used to understand the performance and relevancy of our adverts, to provide you with personalised adverts on other websites and social media, to track when you have arrived at our site from a recognised third-party affiliate website, and to track if you made a purchase based on the adverts we displayed to you.

Recommendations

These cookies enable us to provide personalised product and content recommendations, to make the browsing experience more relevant to you.

Functionality

These cookies are used to offer customer surveys and feedback, to improve search results, and to allow you to share content from our website on social media.

Analytics

These cookies help us improve our website by collecting and reporting information on how you use it.

Tube(s)	Per Tube	Per Unit**
1 - 4	MYR3,639.72	MYR363.972
5 - 9	MYR3,518.25	MYR351.825
10 +	MYR3,473.13	MYR347.313

Select all	Attribute	Value
	Brand	Recom
	Output Voltage	12V dc
	Input Voltage Range	9 → 36 V dc
	Power Rating	15W
	Input Voltage Nominal	24 V dc
	Output Current	1.25A
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	1
	Package	1.6 x 1 in
	Isolation Voltage	5 kV ac, 250V dc
	Length	40.6mm
	Depth	10.2mm
	Width	25.4mm
	Series	REM15-W
	Load Regulation	0.002
	Standards Met	ANSI/AAMI ES60601-1 (2005/R2012 + A1:2012), 2012, CAN/CSA-C22.2 No. 60601-1:14, CAN/CSA-C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 62368-1, cRUus E314885, E196683, IEC60601-1:2005, UL60950-1, UL62368-1
	Medical Approved	Yes
	Efficiency	88.5%
	Maximum Temperature	+105°C
	Minimum Temperature	-40°C

	Select all
	Brand Recom
	Output Voltage 12V dc
	Input Voltage Range 9 → 36 V dc
	Power Rating 15W
	Input Voltage Nominal 24 V dc
	Output Current 1.25A
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 1
	Package 1.6 x 1 in
	Isolation Voltage 5 kV ac, 250V dc
	Length 40.6mm
	Depth 10.2mm
	Width 25.4mm
	Series REM15-W
	Load Regulation 0.002
	Standards Met ANSI/AAMI ES60601-1 (2005/R2012 + A1:2012), 2012, CAN/CSA-C22.2 No. 60601-1:14, CAN/CSA-C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 62368-1, cRUus E314885, E196683, IEC60601-1:2005, UL60950-1, UL62368-1
	Medical Approved Yes
	Efficiency 88.5%
	Maximum Temperature +105°C
	Minimum Temperature -40°C

Recom REM15-W DC-DC Converter, 12V dc/ 1.25A Output, 9 → 36 V dc Input, 15W, Through Hole, +105°C Max Temp -40°C

FREE delivery for orders over MYR500.00

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
