Tube(s)	Per Tube	Per Unit**
1 - 4	MYR2,385.68	MYR238.568
5 - 9	MYR2,306.95	MYR230.695
10 +	MYR2,230.82	MYR223.082

Select all	Attribute	Value
	Brand	Artesyn
	Output Voltage	±12V dc
	Input Voltage Range	18 → 75 V dc
	Power Rating	10W
	Input Voltage Nominal	36 V dc
	Output Current	410mA
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	2
	Output Voltage Adjustment Range	±11.88 V dc, ±12.12V dc
	Package	DIP
	Isolation Voltage	3kV dc
	Depth	11mm
	Length	50.8mm
	Width	25.4mm
	Railway Approved	Yes
	Series	ERM
	Load Regulation	±1%
	Minimum Temperature	-40°C
	Maximum Temperature	+85°C
	Standards Met	EN45545-2, EN50121-3-2, IEC/EN 50155 (IEC60571), IEC/EN 62368-1 (60950-1), UL/cUL 62368-1 (60950-1)
	Efficiency	89%

	Select all
	Brand Artesyn
	Output Voltage ±12V dc
	Input Voltage Range 18 → 75 V dc
	Power Rating 10W
	Input Voltage Nominal 36 V dc
	Output Current 410mA
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 2
	Output Voltage Adjustment Range ±11.88 V dc, ±12.12V dc
	Package DIP
	Isolation Voltage 3kV dc
	Depth 11mm
	Length 50.8mm
	Width 25.4mm
	Railway Approved Yes
	Series ERM
	Load Regulation ±1%
	Minimum Temperature -40°C
	Maximum Temperature +85°C
	Standards Met EN45545-2, EN50121-3-2, IEC/EN 50155 (IEC60571), IEC/EN 62368-1 (60950-1), UL/cUL 62368-1 (60950-1)
	Efficiency 89%

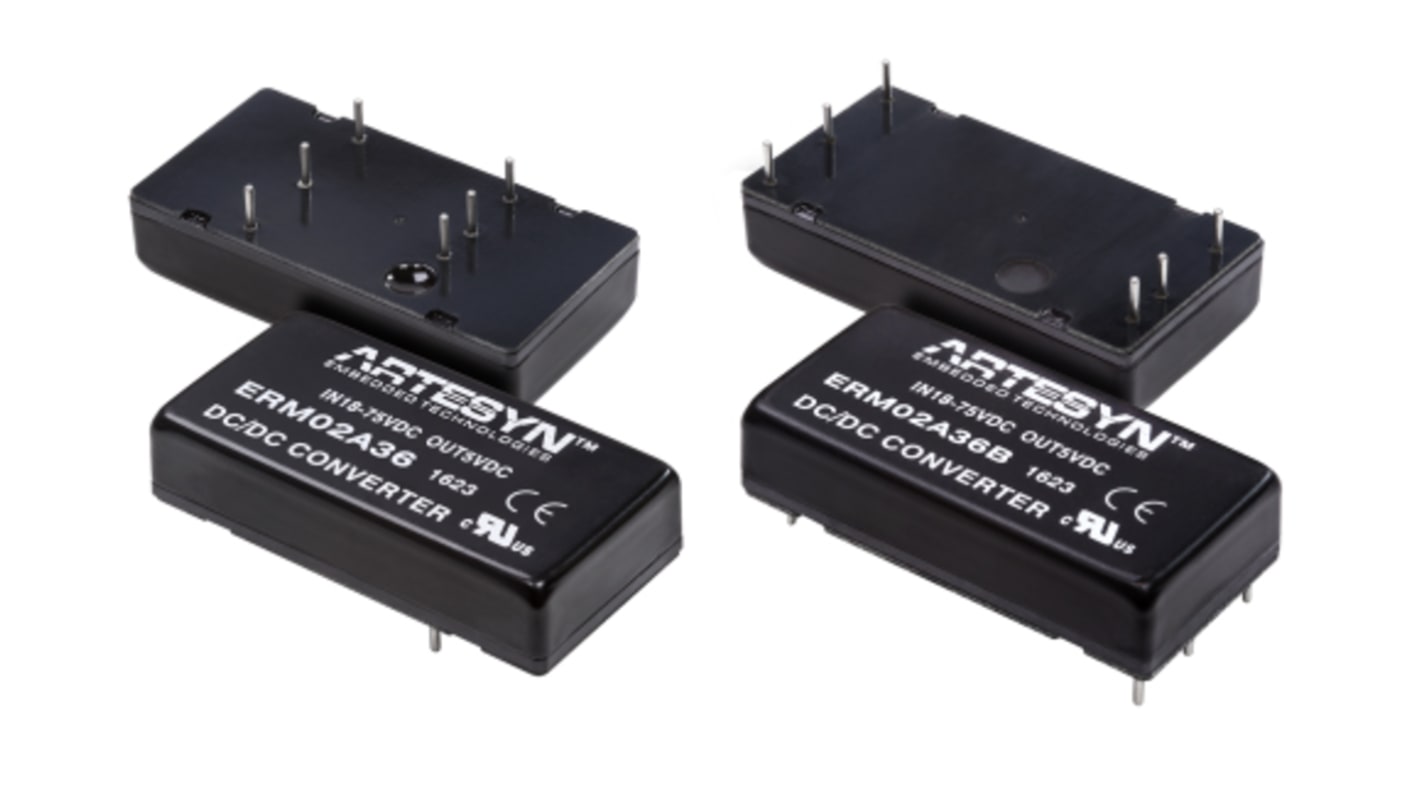

Artesyn ERM DC-DC Converter, ±12V dc/ 410mA Output, 18 → 75 V dc Input, 10W, Through Hole, +85°C Max Temp -40°C
