XP Power JHM DC-DC Converter, 15V dc/ 666mA Output, 4.5 → 9 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C

RS Stock No.:: 167-2494
Mfr. Part No.:: JHM1005S15
Manufacturer:: XP Power

XP Power JHM DC-DC Converter, 15V dc/ 666mA Output, 4.5 → 9 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C

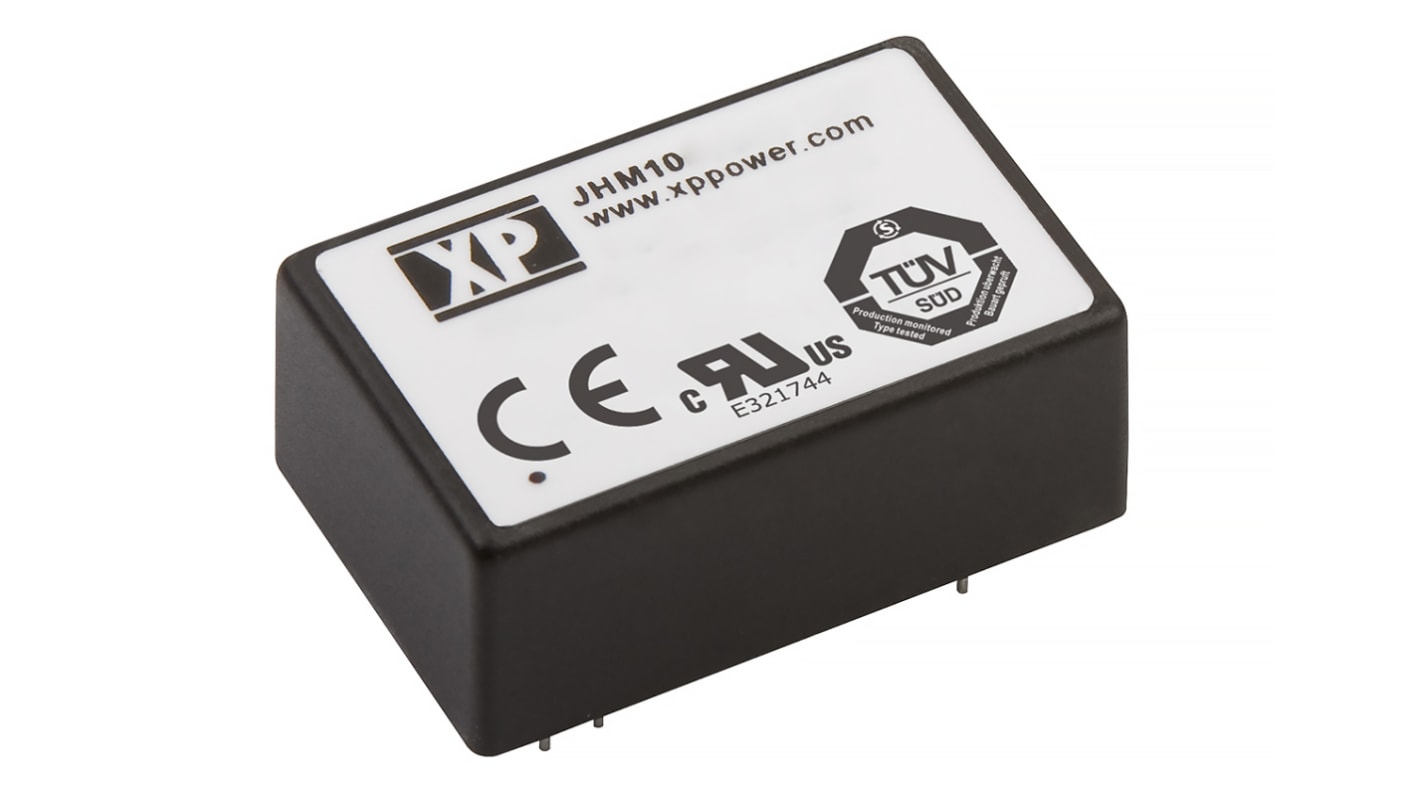

This image is representative of the product range

Price 1 Tube of 10**

MYR2,167.71

Temporarily out of stock - back order for despatch 10/03/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Tube(s)	Per Tube	Per Unit**
1 +	MYR2,167.71	MYR216.771

**price indicative

RS Stock No.:: 167-2494
Mfr. Part No.:: JHM1005S15
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	15V dc
Input Voltage Range	4.5 → 9 V dc
Power Rating	10W
Input Voltage Nominal	5 V dc
Output Current	666mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP 24
Isolation Voltage	4kV ac
Width	20.32mm
Depth	10.4mm
Length	31.75mm
Series	JHM
Railway Approved	No
Load Regulation	±1 (10 to 100% Load) %, ±2 (0 to 10% Load) %
Medical Approved	Yes
Minimum Temperature	-40°C
Standards Met	ANSI/AAMI ES 60601-1, CB, CSA 22.2 No. 60601-1:2008, EN 55011, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61204-3, IEC 60601-1, IEC 60601-1-2, MIL-HDBK-217F, TUV, UL
Maximum Temperature	+80°C

XP Power JHM DC-DC Converter, 15V dc/ 666mA Output, 4.5 → 9 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C

FREE delivery for orders over MYR700.00

XP Power - JHM10 Series of Isolated DC-DC Converters
