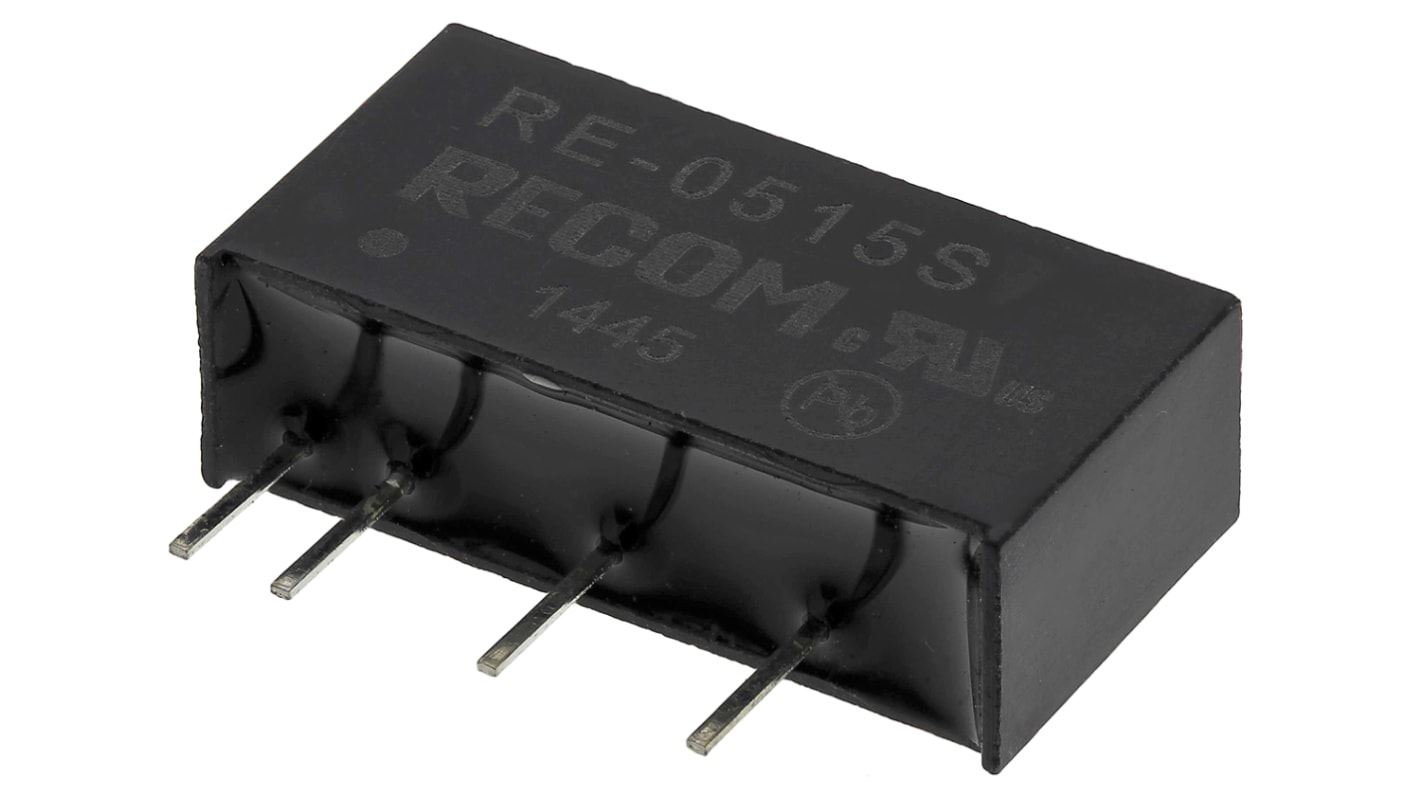

Recom RE DC-DC Converter, 15V dc/ 66mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min
- RS Stock No.:
- 166-9107
- Mfr. Part No.:
- RE-0515S
- Manufacturer:
- Recom
Temporarily out of stock - back order for despatch 09/09/2024, delivery within 4 working days from despatch date
Price 1 Tube of 25
MYR1,057.45
Tube(s) | Per Tube | Per Unit* |
|---|---|---|
| 1 + | MYR1,057.45 | MYR42.298 |
*price indicative
- RS Stock No.:
- 166-9107
- Mfr. Part No.:
- RE-0515S
- Manufacturer:
- Recom
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RE/RB Series
Single & dual output options
1kVdc isolation
UL94V-0 package material
SIP7 package with industry standard pin-outs
1kVdc isolation
UL94V-0 package material
SIP7 package with industry standard pin-outs
Note
Operating temperature is without derating.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 5 V dc |
| Output Current | 66mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP |
| Isolation Voltage | 1kV dc |
| Depth | 10.2mm |
| Length | 19.6mm |
| Series | RE |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
