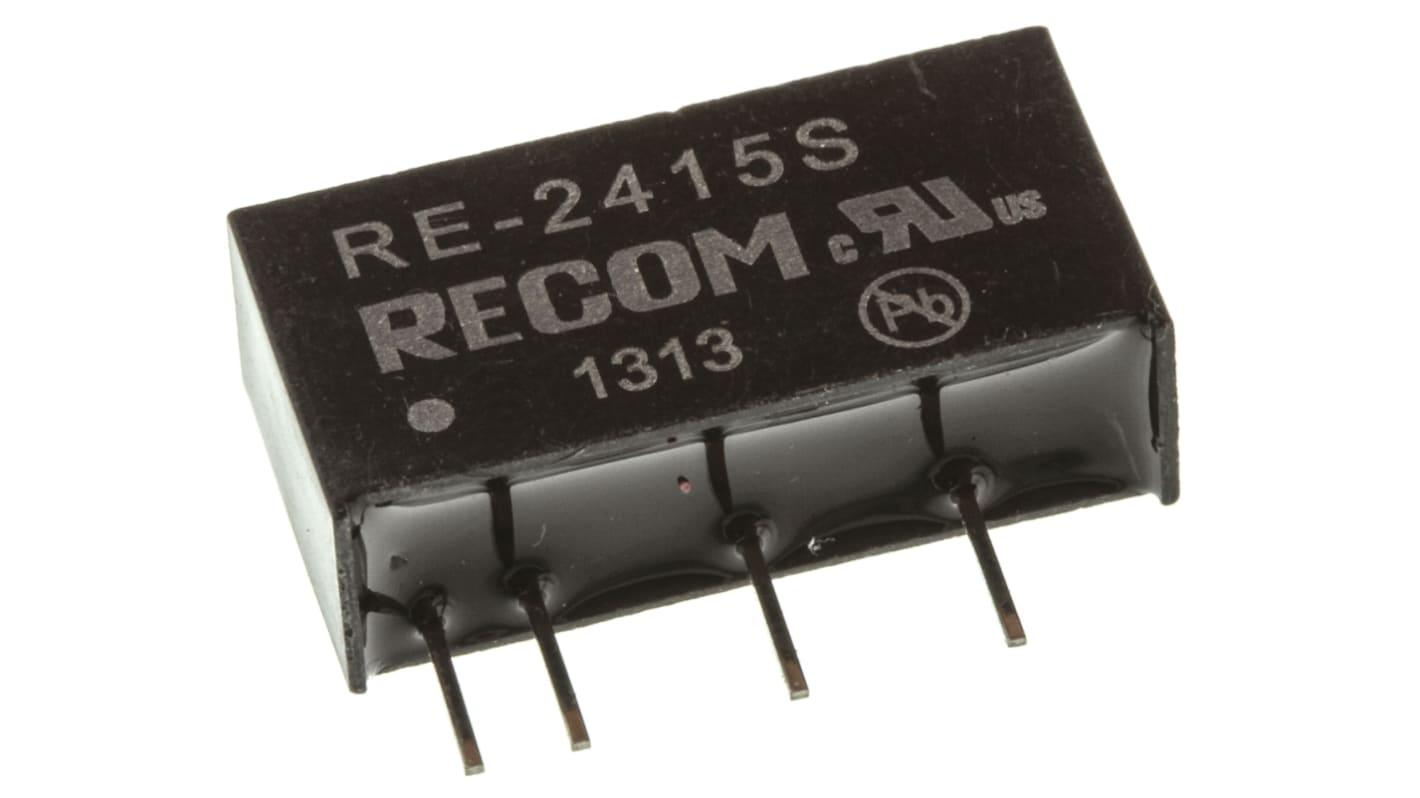

Recom RE DC-DC Converter, 15V dc/ 66mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 473-5081
- Mfr. Part No.:
- RE-2415S
- Manufacturer:
- Recom
Bulk discount available
Subtotal (1 unit)**
MYR35.03
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 6 | MYR35.03 |
| 7 - 12 | MYR34.30 |
| 13 + | MYR33.26 |
**price indicative
- RS Stock No.:
- 473-5081
- Mfr. Part No.:
- RE-2415S
- Manufacturer:
- Recom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 21.6 → 26.4 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 66mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 7 | |
| Isolation Voltage | 1kV dc | |
| Width | 6mm | |
| Length | 19.6mm | |
| Depth | 10.2mm | |
| Series | RE | |
| Maximum Temperature | +85°C | |
| Standards Met | EN 60950-1 | |
| Minimum Temperature | -40°C | |
| Efficiency | 80 → 84% | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 15V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 66mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 7 | ||
Isolation Voltage 1kV dc | ||
Width 6mm | ||
Length 19.6mm | ||
Depth 10.2mm | ||
Series RE | ||
Maximum Temperature +85°C | ||
Standards Met EN 60950-1 | ||
Minimum Temperature -40°C | ||
Efficiency 80 → 84% | ||
