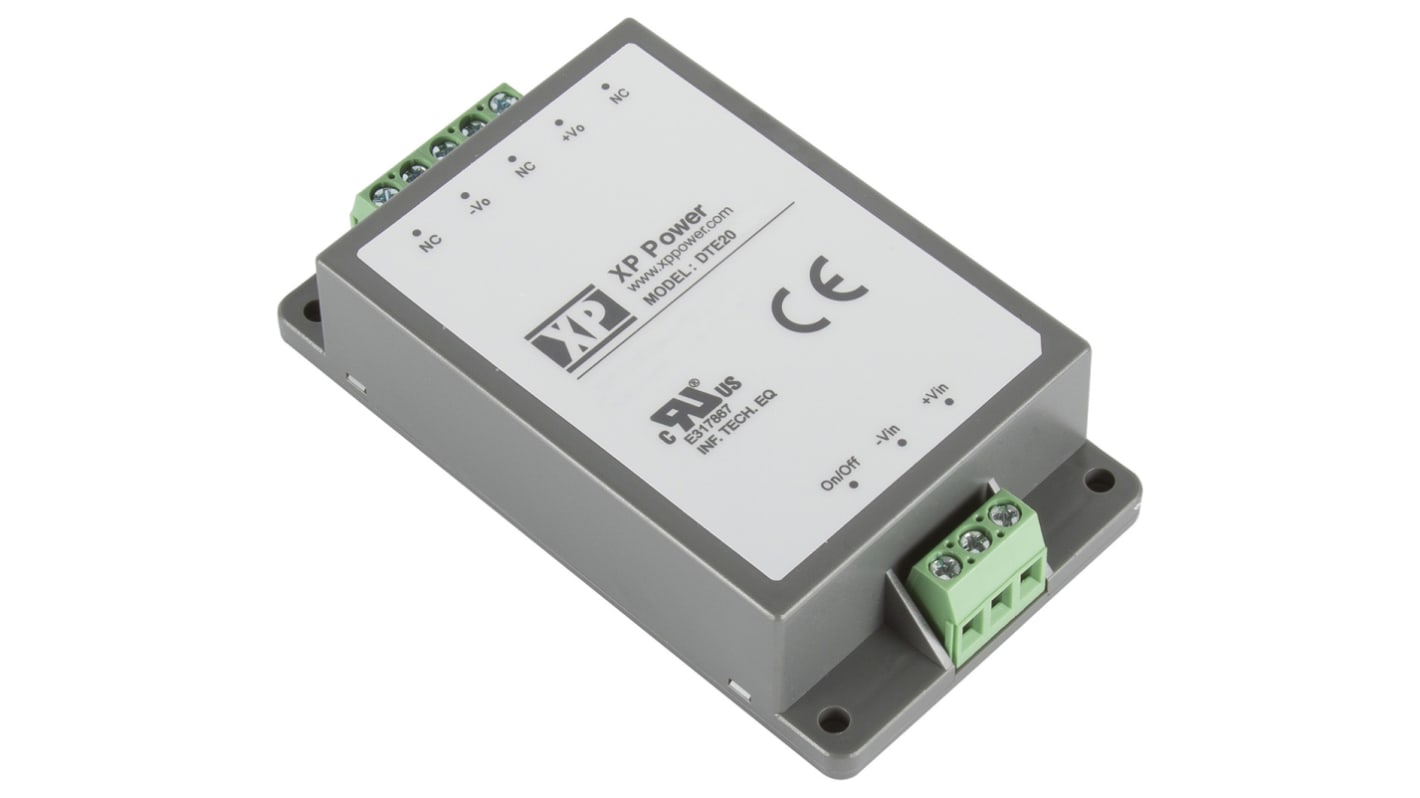

XP Power DTE20 DC-DC Converter, 5V dc/ 4A Output, 18 → 75 V dc Input, 20W, Chassis Mount, +85°C Max Temp -40°C
- RS Stock No.:
- 122-6622
- Mfr. Part No.:
- DTE2048S5V1
- Manufacturer:
- XP Power
Bulk discount available
Subtotal (1 unit)**
MYR289.47
7 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 - 4 | MYR289.47 |
5 - 9 | MYR280.79 |
10 - 24 | MYR272.11 |
25 - 49 | MYR266.30 |
50 + | MYR260.51 |
**price indicative
- RS Stock No.:
- 122-6622
- Mfr. Part No.:
- DTE2048S5V1
- Manufacturer:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | XP Power | |
Output Voltage | 5V dc | |
Input Voltage Range | 18 → 75 V dc | |
Power Rating | 20W | |
Input Voltage Nominal | 48 V dc | |
Output Current | 4A | |
Mounting Type | Chassis Mount | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | Encapsulated | |
Isolation Voltage | 2.5kV dc | |
Depth | 23.3mm | |
Width | 54mm | |
Length | 96mm | |
Series | DTE20 | |
Load Regulation | 0.01 | |
Minimum Temperature | -40°C | |
Maximum Temperature | +85°C | |
Standards Met | CE Certified, cULus Recognized, EN55022, EN55024, EN60068-2-27, EN60068-2-47, EN60068-2-6, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC 60950-1, MIL-HDBK-217F, UL 60950-1 | |
Select all | ||
---|---|---|
Brand XP Power | ||
Output Voltage 5V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 20W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 4A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package Encapsulated | ||
Isolation Voltage 2.5kV dc | ||
Depth 23.3mm | ||
Width 54mm | ||
Length 96mm | ||
Series DTE20 | ||
Load Regulation 0.01 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
Standards Met CE Certified, cULus Recognized, EN55022, EN55024, EN60068-2-27, EN60068-2-47, EN60068-2-6, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC 60950-1, MIL-HDBK-217F, UL 60950-1 | ||
