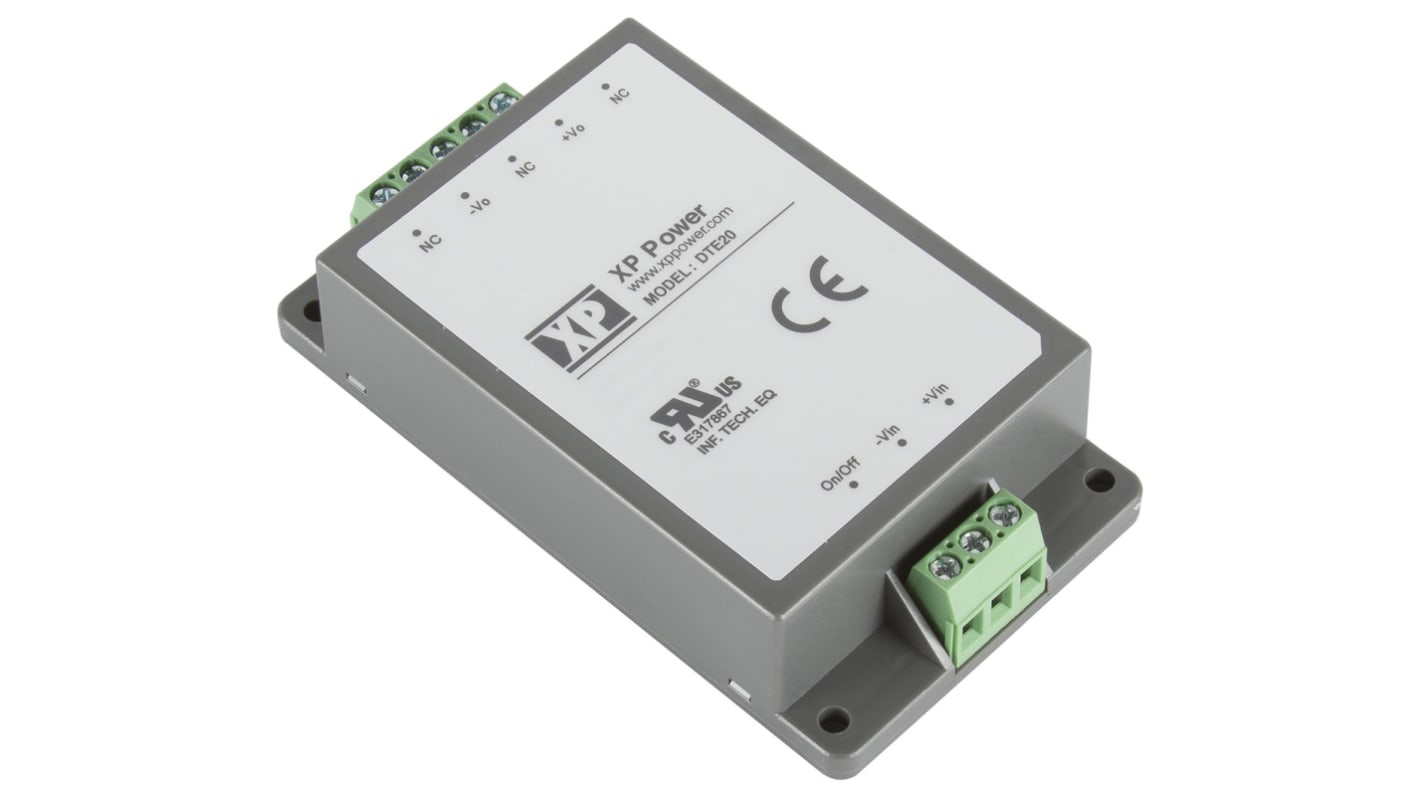

XP Power DTE20 DC-DC Converter, 48V dc/ 420mA Output, 18 → 75 V dc Input, 20W, Chassis Mount, +85°C Max Temp

RS Stock No.:: 122-6621
Mfr. Part No.:: DTE2048S48
Manufacturer:: XP Power

XP Power DTE20 DC-DC Converter, 48V dc/ 420mA Output, 18 → 75 V dc Input, 20W, Chassis Mount, +85°C Max Temp

Bulk discount available

Price Each

MYR329.69

1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per Unit
1 - 4	MYR329.69
5 - 9	MYR323.10
10 - 24	MYR316.65
25 - 49	MYR310.33
50 +	MYR304.13

RS Stock No.:: 122-6621
Mfr. Part No.:: DTE2048S48
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	48V dc
Input Voltage Range	18 → 75 V dc
Power Rating	20W
Input Voltage Nominal	48 V dc
Output Current	420mA
Mounting Type	Chassis Mount
Isolated	Yes
Number of Outputs	1
Package	Encapsulated
Isolation Voltage	2.5kV dc
Depth	23.3mm
Width	54mm
Length	96mm
Series	DTE20
Load Regulation	0.01
Standards Met	CE Certified, cULus Recognized, EN55022, EN55024, EN60068-2-27, EN60068-2-47, EN60068-2-6, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC 60950-1, MIL-HDBK-217F, UL 60950-1
Efficiency	90%
Minimum Temperature	-40°C
Maximum Temperature	+85°C

XP Power DTE20 DC-DC Converter, 48V dc/ 420mA Output, 18 → 75 V dc Input, 20W, Chassis Mount, +85°C Max Temp

XP Power - DTE20 Series of DC-DC Converters
