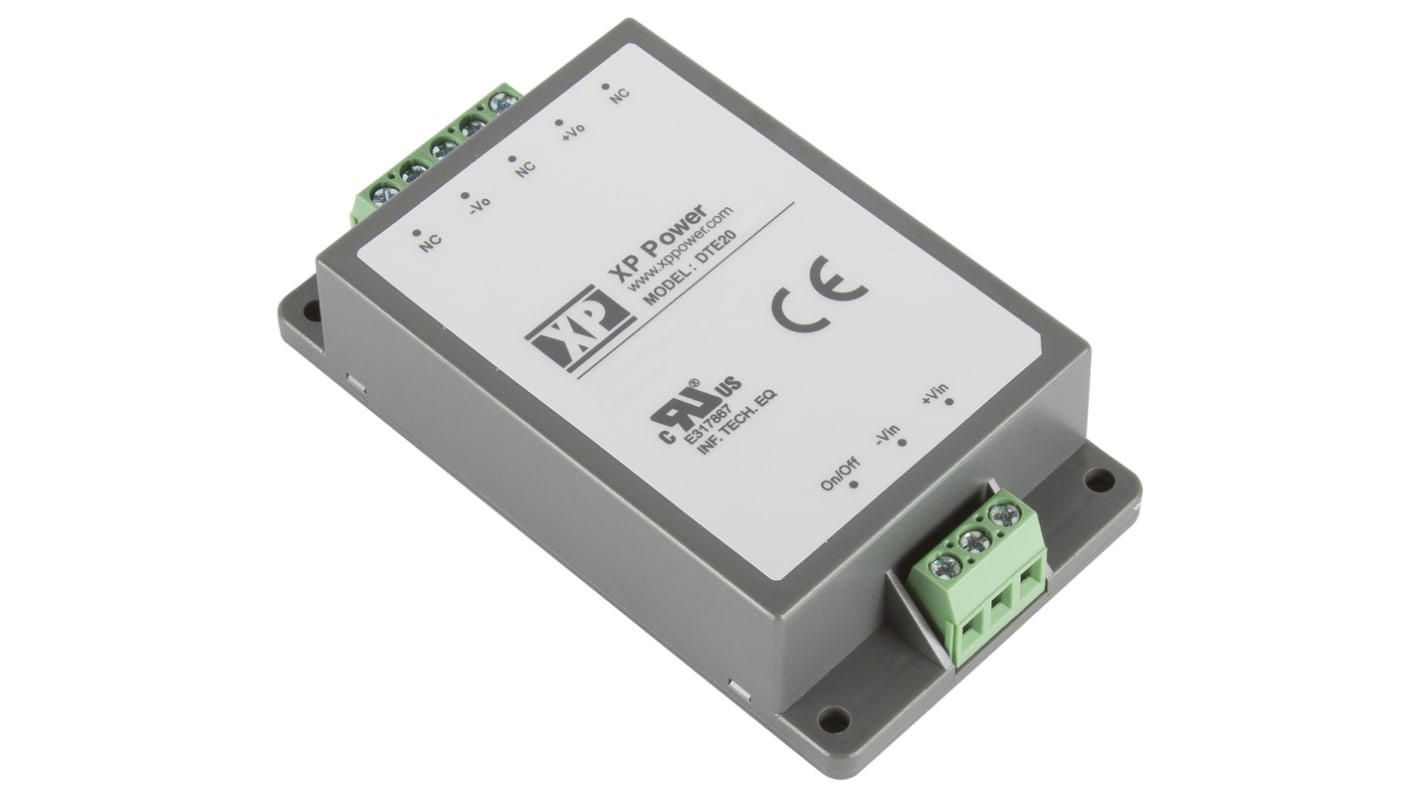

XP Power DTE20 DC-DC Converter, 48V dc/ 420mA Output, 9 → 36 V dc Input, 20W, Chassis Mount, +85°C Max Temp

RS Stock No.:: 122-6617
Distrelec Article No.:: 301-83-396
Mfr. Part No.:: DTE2024S48
Manufacturer:: XP Power

XP Power DTE20 DC-DC Converter, 48V dc/ 420mA Output, 9 → 36 V dc Input, 20W, Chassis Mount, +85°C Max Temp

Bulk discount available

Price Each

MYR313.72

Available for back order.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 4	MYR313.72
5 - 9	MYR307.45
10 - 24	MYR301.30
25 - 49	MYR295.28
50 +	MYR289.39

RS Stock No.:: 122-6617
Distrelec Article No.:: 301-83-396
Mfr. Part No.:: DTE2024S48
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	48V dc
Input Voltage Range	9 → 36 V dc
Power Rating	20W
Input Voltage Nominal	24 V dc
Output Current	420mA
Mounting Type	Chassis Mount
Isolated	Yes
Number of Outputs	1
Package	Encapsulated
Isolation Voltage	2.5kV dc
Length	96mm
Depth	23.3mm
Width	54mm
Series	DTE20
Load Regulation	0.01
Efficiency	89%
Standards Met	CE Certified, cULus Recognized, EN55022, EN55024, EN60068-2-27, EN60068-2-47, EN60068-2-6, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC 60950-1, MIL-HDBK-217F, UL 60950-1
Maximum Temperature	+85°C
Minimum Temperature	-40°C

XP Power DTE20 DC-DC Converter, 48V dc/ 420mA Output, 9 → 36 V dc Input, 20W, Chassis Mount, +85°C Max Temp

FREE delivery for orders over MYR700.00

XP Power - DTE20 Series of DC-DC Converters
