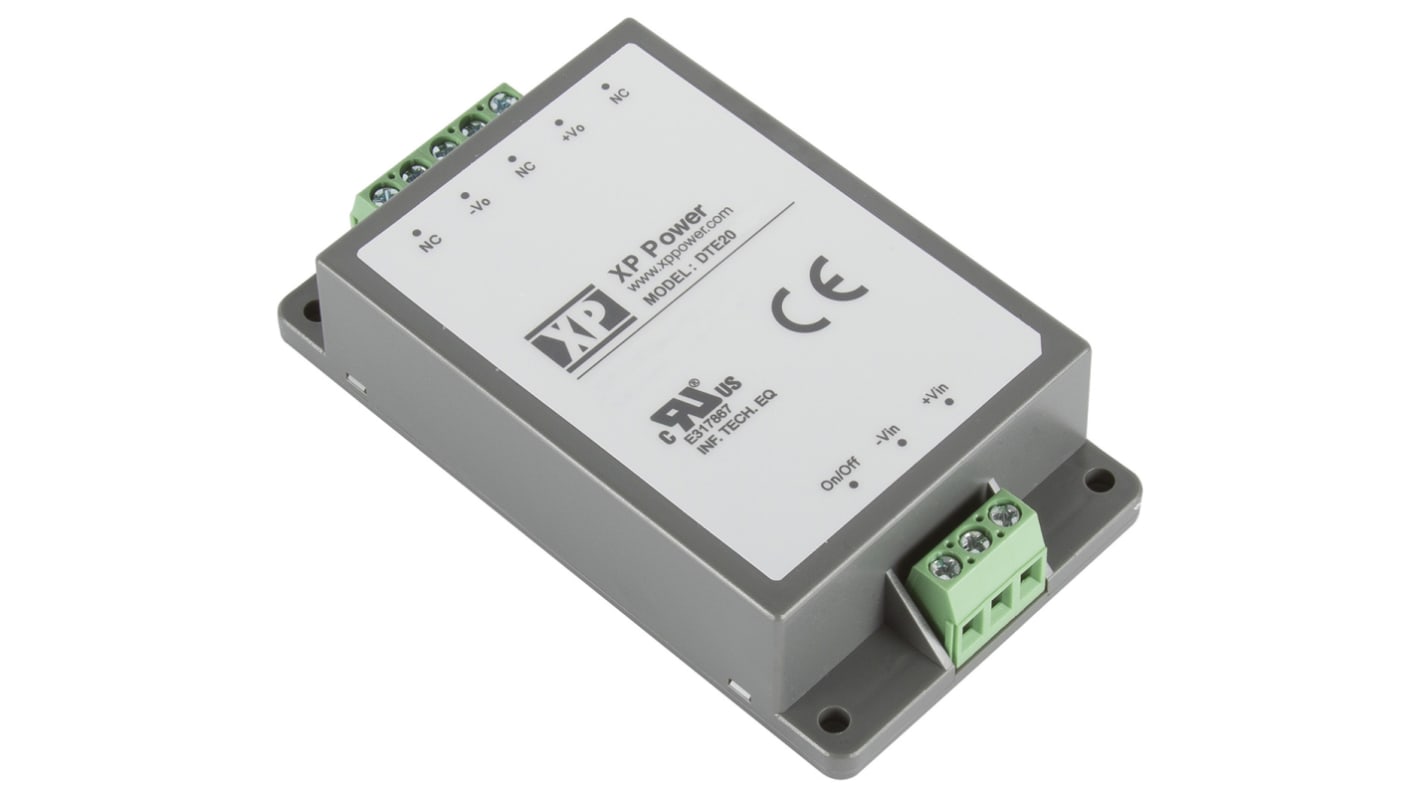

XP Power DTE20 DC-DC Converter, 24V dc/ 835mA Output, 18 → 75 V dc Input, 20W, Chassis Mount, +85°C Max Temp

RS Stock No.:: 122-6620
Mfr. Part No.:: DTE2048S24
Manufacturer:: XP Power

XP Power DTE20 DC-DC Converter, 24V dc/ 835mA Output, 18 → 75 V dc Input, 20W, Chassis Mount, +85°C Max Temp

Subtotal (1 unit)**

MYR319.99

Available for back order.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 - 4	MYR319.99
5 - 9	MYR313.26
10 - 24	MYR303.67
25 - 49	MYR296.30
50 +	MYR289.90

**price indicative

RS Stock No.:: 122-6620
Mfr. Part No.:: DTE2048S24
Manufacturer:: XP Power

Datasheet

Attribute	Value
Output Voltage	24V dc
Input Voltage Range	18 → 75 V dc
Power Rating	20W
Input Voltage Nominal	48 V dc
Output Current	835mA
Mounting Type	Chassis Mount
Isolated	Yes
Number of Outputs	1
Package	Encapsulated
Isolation Voltage	2.5kV dc
Depth	23.3mm
Width	54mm
Length	96mm
Series	DTE20
Load Regulation	0.01
Efficiency	92%
Minimum Temperature	-40°C
Standards Met	CE Certified, cULus Recognized, EN55022, EN55024, EN60068-2-27, EN60068-2-47, EN60068-2-6, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC 60950-1, MIL-HDBK-217F, UL 60950-1
Maximum Temperature	+85°C

XP Power DTE20 DC-DC Converter, 24V dc/ 835mA Output, 18 → 75 V dc Input, 20W, Chassis Mount, +85°C Max Temp

FREE delivery for orders over MYR700.00

XP Power - DTE20 Series of DC-DC Converters
