Wurth Elektronik 1779405311, Isolated, Un-Regulated DC-DC Converter, 400mA
- RS Stock No.:
- 250-9005
- Mfr. Part No.:
- 1779405311
- Manufacturer:
- Wurth Elektronik
76 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each
MYR33.61
Units | Per Unit |
---|---|
1 - 9 | MYR33.61 |
10 - 24 | MYR31.65 |
25 - 42 | MYR29.08 |
43 - 99 | MYR26.75 |
100 + | MYR24.07 |
- RS Stock No.:
- 250-9005
- Mfr. Part No.:
- 1779405311
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

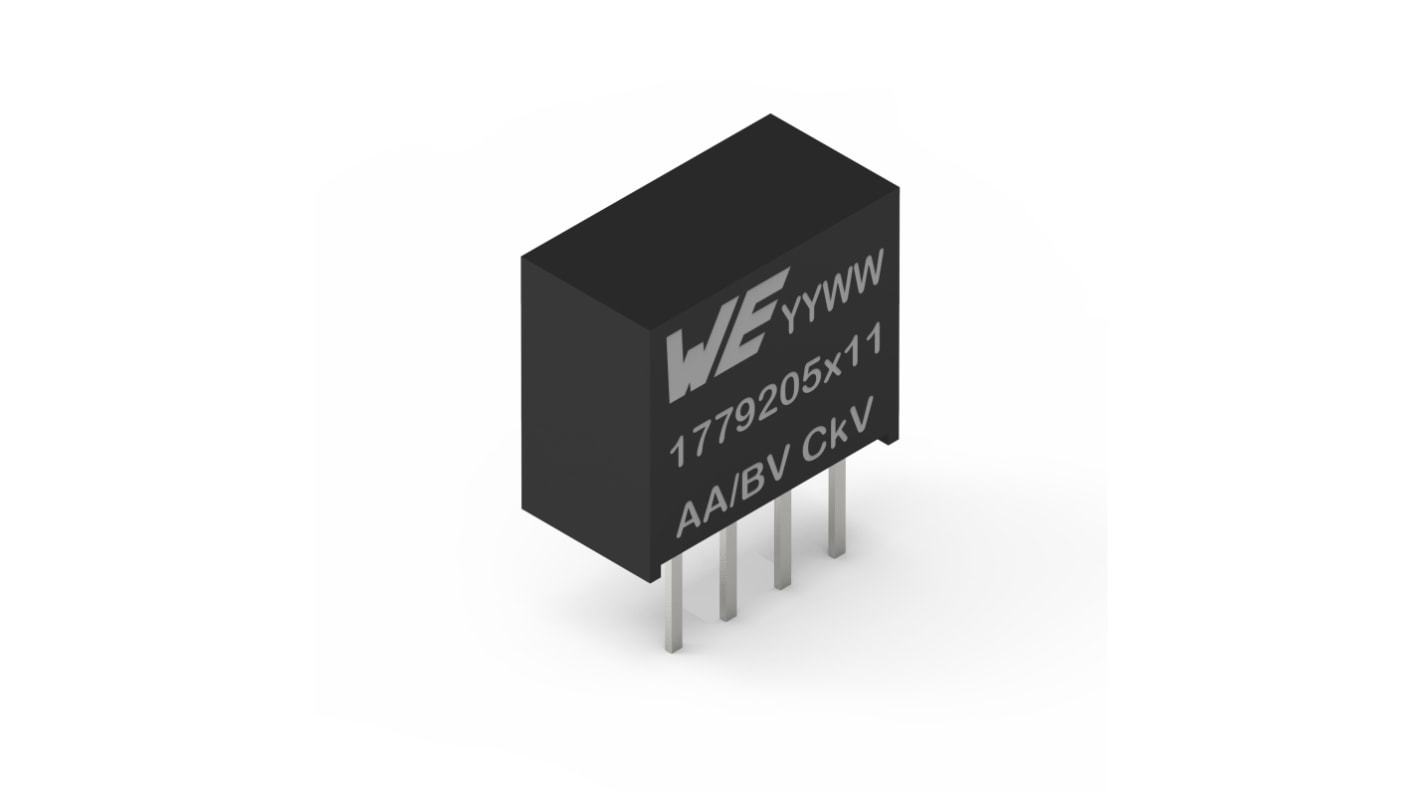

The Wurth Elektronik FISM power module family is an unregulated, functional isolated, fully integrated DC/DC converter. The module integrates the switching power stage, control circuitry, transformer and input/output capacitors. The module requires no external components for operation thus reducing design effort and complexity to a minimum. The FISM ensures fast time to market and low development costs. The 1779405x11 series of the FISM family achieves typically an efficiency of 83% up to 88%. The series is available in a SIP-4 package (11.60 x 7.55 x 10.16mm).
1.5kV DC functional isolation for 60s
Continuous short-circuit protection
Current capability up to 0.4A
Output voltage: 5V unregulated
Continuous output power: 2W
Integrated CIN, COUT and transformer
Dynamic power boost up to 560mA for 0.5s
Output voltage accuracy: Typ. +5% / -2.5%
Operating switching frequency: 600kHz
RoHS & REACh compliant
Continuous short-circuit protection
Current capability up to 0.4A
Output voltage: 5V unregulated
Continuous output power: 2W
Integrated CIN, COUT and transformer
Dynamic power boost up to 560mA for 0.5s
Output voltage accuracy: Typ. +5% / -2.5%
Operating switching frequency: 600kHz
RoHS & REACh compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Minimum Output Voltage | -0.3 V |
Maximum Output Voltage | 5 V |
Minimum Input Voltage | 21.6 V |
Maximum Input Voltage | 26.4 V |
Minimum Output Current | 400mA |
Converter Type | Isolated, Un-Regulated |
