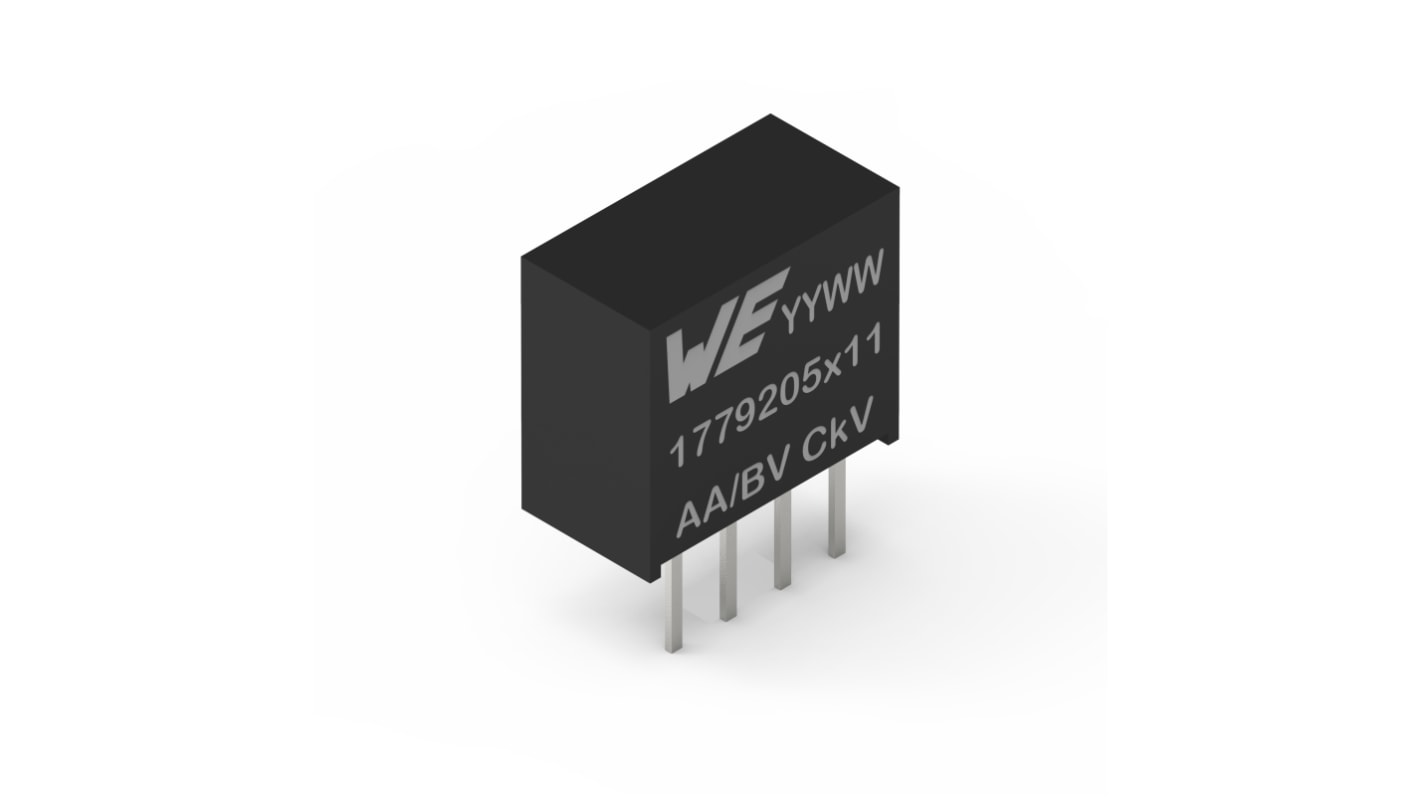

Wurth Elektronik 1779205311, Isolated, Un-Regulated DC-DC Converter, 200mA
- RS Stock No.:
- 250-8996
- Mfr. Part No.:
- 1779205311
- Manufacturer:
- Wurth Elektronik
70 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each (In a Pack of 2)
MYR17.28
Units | Per Unit | Per Pack* |
---|---|---|
2 - 8 | MYR17.28 | MYR34.56 |
10 - 48 | MYR16.26 | MYR32.52 |
50 - 84 | MYR14.96 | MYR29.92 |
86 - 170 | MYR13.77 | MYR27.54 |
172 + | MYR12.665 | MYR25.33 |
*price indicative
- RS Stock No.:
- 250-8996
- Mfr. Part No.:
- 1779205311
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Wurth Elektronik FISM power module family is an unregulated, functional isolated, fully integrated DC/DC converter. The module integrates the switching power stage, control circuitry, transformer and input/output capacitors. The module requires no external components for operation thus reducing design effort and complexity to a minimum. The FISM ensures fast time to market and low development costs. The 1779205x11 series of the FISM family achieves typically an efficiency of 82% up to 86%. The series is available in a SIP-4 package (11.60 x6 x 10.16mm).
1.5kV DC functional isolation for 60s
Continuous short-circuit protection
Current capability up to 0.2A
Output voltage: 5V unregulated
Continuous output power: 1W
Integrated CIN, COUT and transformer
Low output voltage ripple: Typ. 55mV at full load
Output voltage accuracy: Typ. +3% / -4.3%
RoHS & REACh compliant
Continuous short-circuit protection
Current capability up to 0.2A
Output voltage: 5V unregulated
Continuous output power: 1W
Integrated CIN, COUT and transformer
Low output voltage ripple: Typ. 55mV at full load
Output voltage accuracy: Typ. +3% / -4.3%
RoHS & REACh compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Minimum Output Voltage | -0.7 V |
Maximum Output Voltage | 5 V |
Minimum Input Voltage | 21.6 V |
Maximum Input Voltage | 26.4 V |
Minimum Output Current | 200mA |
Converter Type | Isolated, Un-Regulated |
