Wurth Elektronik 176920502, 1-Channel, Isolated, Un-Regulated DC-DC Converter, 200mA 8-Pin, SMT
- RS Stock No.:
- 206-9436
- Mfr. Part No.:
- 176920502
- Manufacturer:
- Wurth Elektronik
Temporarily out of stock - back order for despatch 11/07/2025, delivery within 4 working days from despatch date
Price Each
MYR41.32
Units | Per Unit |
|---|---|
| 1 - 124 | MYR41.32 |
| 125 - 249 | MYR37.44 |
| 250 + | MYR34.38 |
- RS Stock No.:
- 206-9436
- Mfr. Part No.:
- 176920502
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
Product Details

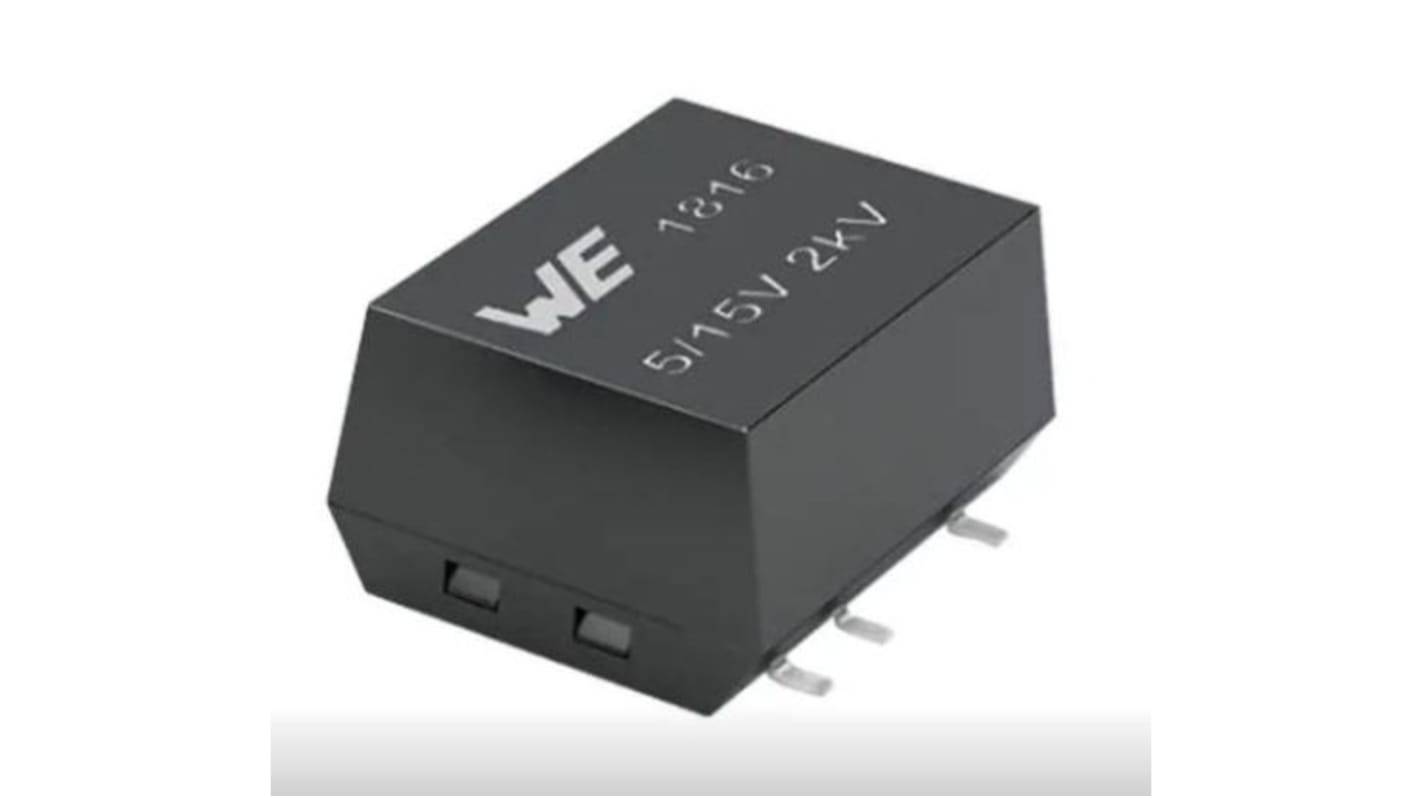

The Wurth Elektronik FISM series unregulated MagI3C power module is a functional isolated, fully integrated DC/DC converter. The module integrates the switching power stage, control circuitry, transformer and capacitors, all in one package.
2kV DC functional isolation
RoHS & REACh compliant
Low output voltage ripple
Operating ambient temperature range - 40°C to 100°C
RoHS & REACh compliant
Low output voltage ripple
Operating ambient temperature range - 40°C to 100°C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Minimum Output Voltage | 5 V |
| Maximum Output Voltage | 12 V |
| Minimum Input Voltage | 3.3 V |
| Maximum Input Voltage | 12 V |
| Minimum Output Current | 200mA |
| Converter Type | Isolated, Un-Regulated |
| Number of Outputs | 1 |
| Output Type | Fixed |
| Package Type | SMT |
| Pin Count | 8 |
