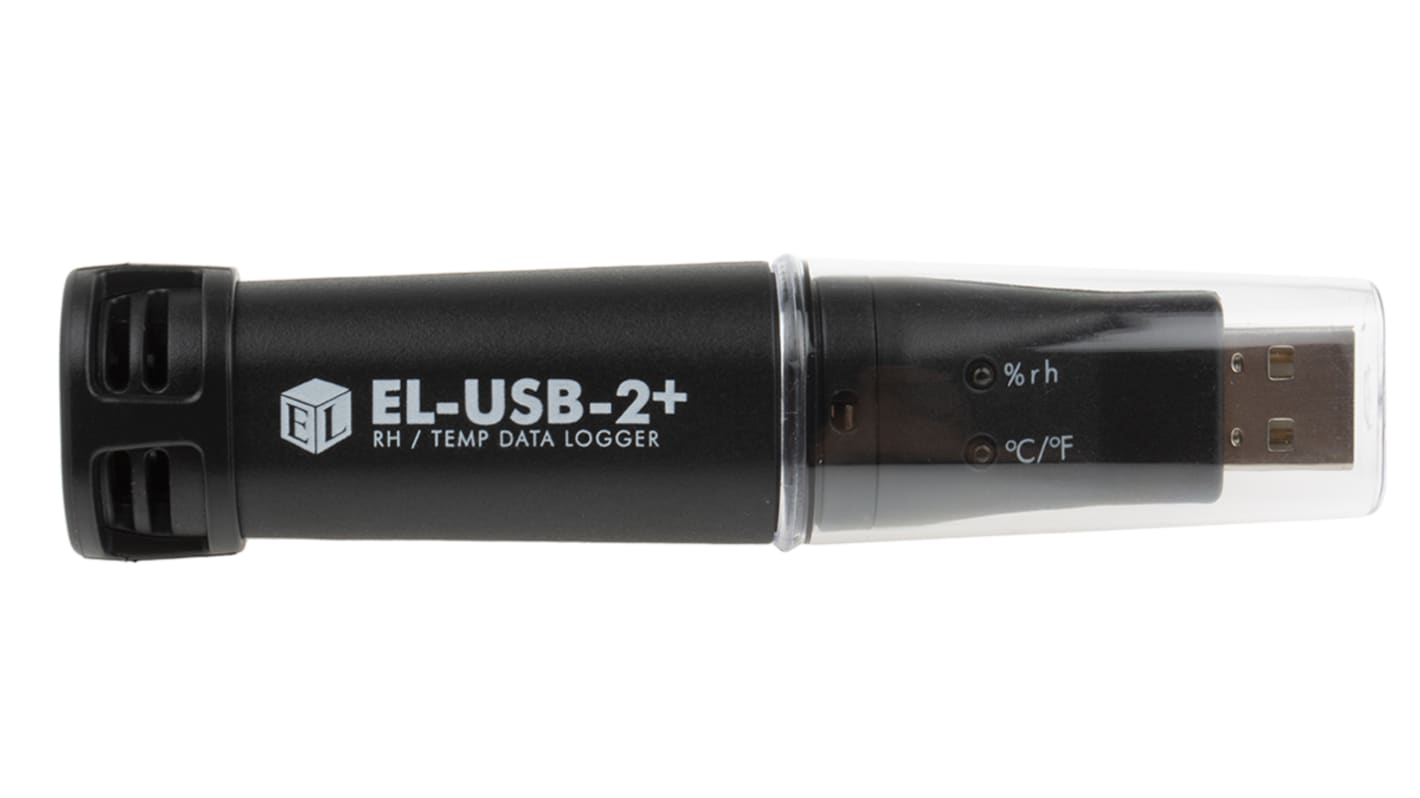

Lascar EL-USB-2+ Temperature & Humidity Data Logger, USB, 1 Input Channel(s)

RS Stock No.:: 666-8166
Distrelec Article No.:: 302-15-800
Mfr. Part No.:: EL-USB-2+
Manufacturer:: Lascar

Lascar EL-USB-2+ Temperature & Humidity Data Logger, USB, 1 Input Channel(s)

Subtotal (1 unit)*

MYR522.00

FREE delivery for orders over RM 500.00

In Stock

Plus 65 unit(s) shipping from 15 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR522.00

*price indicative

RS Stock No.:: 666-8166
Distrelec Article No.:: 302-15-800
Mfr. Part No.:: EL-USB-2+
Manufacturer:: Lascar

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lascar
	Number of Input Channels	1
	Model Number	EL-USB-2+
	Sensor Type	Humidity, Temperature
	Measurement Parameters	Humidity, Temperature, Dew Point
	Interface Type	USB
	Data Logger Type	Temperature & Humidity
	Maximum Temperature Measurement	+80 °C
	Power Source	Battery
	Best Temperature Measurement Accuracy	± 0.45 °C
	IP Rating	IP67
	Minimum Operating Temperature	-35°C
	Maximum Operating Temperature	+80°C
	Maximum Humidity Measurement	100%RH
	Dimensions	108 x 25 x 22mm
	Alarm	Yes
	Temperature Measurement Resolution	0.5°C
	Humidity Measurement Resolution	0.5%RH
	Includes	1/2 AA battery and wall mount clip
	Model Number p	EL-USB-2+
	Best Humidity Measurement Accuracy	± 2.05 %RH
	Battery Life	3 yr
	Number of Readings Per Channel	16382
	Battery Type	1/2 AA

	Select all
	Brand Lascar
	Number of Input Channels 1
	Model Number EL-USB-2+
	Sensor Type Humidity, Temperature
	Measurement Parameters Humidity, Temperature, Dew Point
	Interface Type USB
	Data Logger Type Temperature & Humidity
	Maximum Temperature Measurement +80 °C
	Power Source Battery
	Best Temperature Measurement Accuracy ± 0.45 °C
	IP Rating IP67
	Minimum Operating Temperature -35°C
	Maximum Operating Temperature +80°C
	Maximum Humidity Measurement 100%RH
	Dimensions 108 x 25 x 22mm
	Alarm Yes
	Temperature Measurement Resolution 0.5°C
	Humidity Measurement Resolution 0.5%RH
	Includes 1/2 AA battery and wall mount clip
	Model Number p EL-USB-2+
	Best Humidity Measurement Accuracy ± 2.05 %RH
	Battery Life 3 yr
	Number of Readings Per Channel 16382
	Battery Type 1/2 AA

COO (Country of Origin):: CN

Lascar Data Loggers

The Lascar EL-USB-2 USB standalone data logger measures and stores over 16,000 temperature and humidity readings between -35°C and 80°C (-31°F to 176°F). It has a 0 to 100% RH range at a resolution of 0.5°C (1°F) and 0.5%RH. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Set-up and data download from EasyLog data loggers are enabled by the EL-WIN-USB software available here: www. EasyLog USB. Com

Supplied with
1/2 AA battery and wall mount clip

Features and Benefits

The measurement range is between -35°C and 80°C (-31°F and 176°F)
Temperature measurement accuracy is ±0.45°C
Humidity measurement accuracy is ±2.05% RH
Logging rates between 10 seconds and 12 hours
Immediate and delayed logging start
User-programmable alarm thresholds for both temperature and humidity
Status indication via red/green LEDs
Battery life is up to 3 years
Supplied with a 1/2AA lithium metal battery
Export to Excel functionality

Applications

Facilities management
Housing and business premises
Outside environmental data
Agriculture and animal welfare
Veterinary
Museums and exhibitions

Certifications

IP67 Rated
