Sefram 8460/012 Data Acquisition System, 18 Channel(s), Ethernet, USB, 1Msps, 14 bits

RS Stock No.:: 232-0438
Distrelec Article No.:: 302-30-474
Mfr. Part No.:: 8460/012
Manufacturer:: Sefram

Sefram 8460/012 Data Acquisition System, 18 Channel(s), Ethernet, USB, 1Msps, 14 bits

Price Each**

MYR170,788.85

Temporarily out of stock - back order for despatch 13/02/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR170,788.85

**price indicative

RS Stock No.:: 232-0438
Distrelec Article No.:: 302-30-474
Mfr. Part No.:: 8460/012
Manufacturer:: Sefram

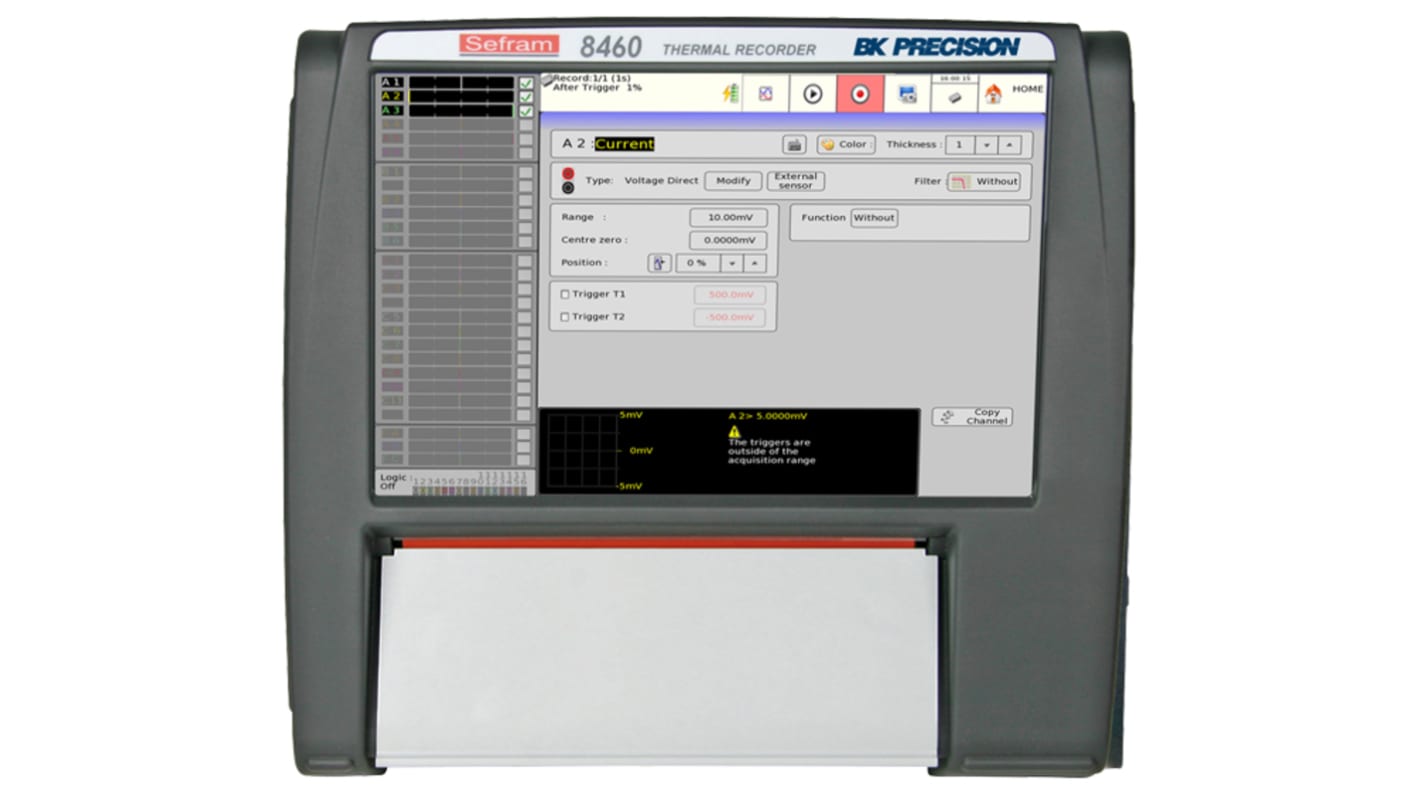

The Sefram 8460 is a High-Speed Thermal Paper Data Acquisition Solution with 270 mm paper that enables you to acquire multiple parameters: Voltage, Current (with shunt or Clamp), Temperature (thermocouples), measurements on sensors (e.g. 0-10V

4-20 mA), etc.. You can set up your own channel configuration from the 4 input boards available: 6ch Universal Board, 6ch Universal High Voltage board, 6ch Strain Gauge board and 12ch Multiplexed boards. With suitable channel configuration you can record from 6 up to 36 channels and 16 logical inputs. Long term measurements with a sampling rate of 1MHz are possible by taking full advantage of the 500GB internal hard disk memory. With a special integrated function of Power Analysis you can record all your parameters on a Single-Phase and Three-Phase network (50Hz, 400Hz and 1kHz). This Data Acquisition Solution can be remotely controlled by USB, Ethernet or WiFi connection and the results can analysed on license-free software from Sefram.

Sefram 8460 combines autonomy, power and simplicity to provide you the right answer for your recording needs.

Common features:

Interfaces : 4 x USB, Ethernet, VGA
Various measurement functions
Remote control
Supplied with licence free Sefram Viewer software for data transfer and analysis
Safety: 600V CAT III (depending of boards)
6 isolated input universal board:
6 isolated analogue channels
14 bit, 1 Ms/s, Bandwidth: 100kHz
DC, RMS AC+DC Voltage (+-500V)
Frequency, Thermocouples
6 isolated high voltage board:
6 isolated high voltage analogue channels
14 bit, 1 Ms/s, Bandwidth: 26kHz
DC, RMS AC+DC Voltage (+-1000V)
Frequency
6 isolated differential input board - Strain Gauge
Measurement of strain gauge bridges (4 and 6 wires) and half-bridge
Voltage up to 50V, thermocouples
16 bit, 100ks/s, bandwidth 18kHz
12 channels multiplexed board
Voltage up to 50V AC, DC
Pt100, thermocouples
16 bit, 5ks/s, bandwidth 1kHz

TFT panoramic LCD touch screen (15"4)
6 to 36 analogue channels
Up to 3 measurement boards
16 logical channels
270mm thermal paper printer
128 Mword memory, with segments
Internal hard disk : 500 Gb
Intuitive man-machine interface
Power Analysis function

Options:

IRIG board
WiFi interface

Options

2320470 - Multiplexed card 12 channels
2320468 - Universal input card 6 channels
2320459 - High Voltage Universal input card 6 channels
2320471 - Strain Gauge Card 6 channels
2320453 - WiFi option
7918071 - External 16 isolated logical channel adapter
1259523 - Special cord for logic inputs (banana)
2320474 - 19" rack mounting kit

Factory Options (must be ordered with the main unit)

2320472 - GPS card option - internal clock synchronization with an GPS time (only possible GPS or IRIG)
2320473 - IRIG card option - internal clock synchronization with an IRIG time (only possible IRIG or GPS)
2320469 - High Impedance option Z = 10Mohm. One needed for each input board
2320466 - 2 TB Hard drive option

Supplied with

Included: main adaptor 100/240V, manual (CD-ROM), set of red and black cables, aligator clips, quick banana plug

Attribute	Value
Number of Input Channels	18
Sampling Rate	1Msps
Resolution	14 bits
Connectivity	Ethernet, USB
On Board Memory	500000MB
Power Source	Battery, Mains
Input Type	Analogue, Digital
Output Type	Digital
Weight	11kg
Height	195mm
Maximum Operating Temperature	+40°C
Width	370mm
Minimum Operating Temperature	0°C
Model Number p	8460/012
Length	440mm
