MPN

JAE, DC20 Series, Male Crimp D-Sub Connector Contact, Gold Pin 24 AWG

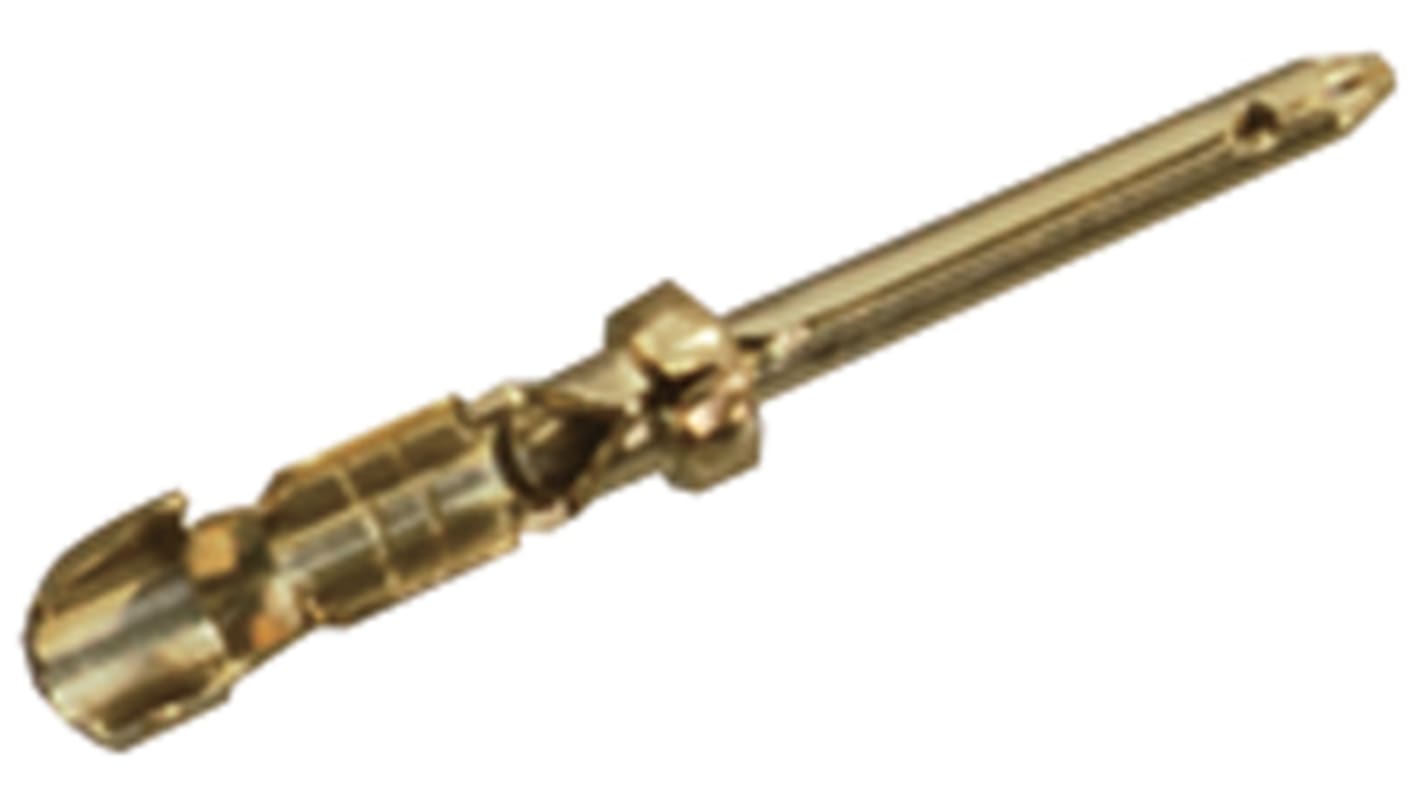

This image is representative of the product range

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 100 units)*

MYR74.10

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit	Per Pack*
100 - 1400	MYR0.741	MYR74.10
1500 +	MYR0.694	MYR69.40

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Find similar products by selecting one or more attributes.

	Select all
	Brand JAE
	Product Type D-Sub Connector Contact
	Gender Male
	Contact Material Copper Alloy
	Contact Plating Gold
	Current 5A
	Maximum Contact Resistance 6mΩ
	Contact Type Pin
	Minimum Wire Size mm² 0.05mm²
	Maximum Wire Size mm² 0.21mm²
	Series DC20
	Length 14.6mm
	Termination Type Crimp
	Standards/Approvals No
	Maximum Wire Size AWG 24AWG
	Minimum Wire Size AWG 28AWG

RoHS Status: Exempt
