JST SPHD Crimp Wire SPHD, 150 mm, Blue
- RS Stock No.:
- 161-7844
- Mfr. Part No.:
- SPHD1-SPHD1-24150
- Manufacturer:
- JST

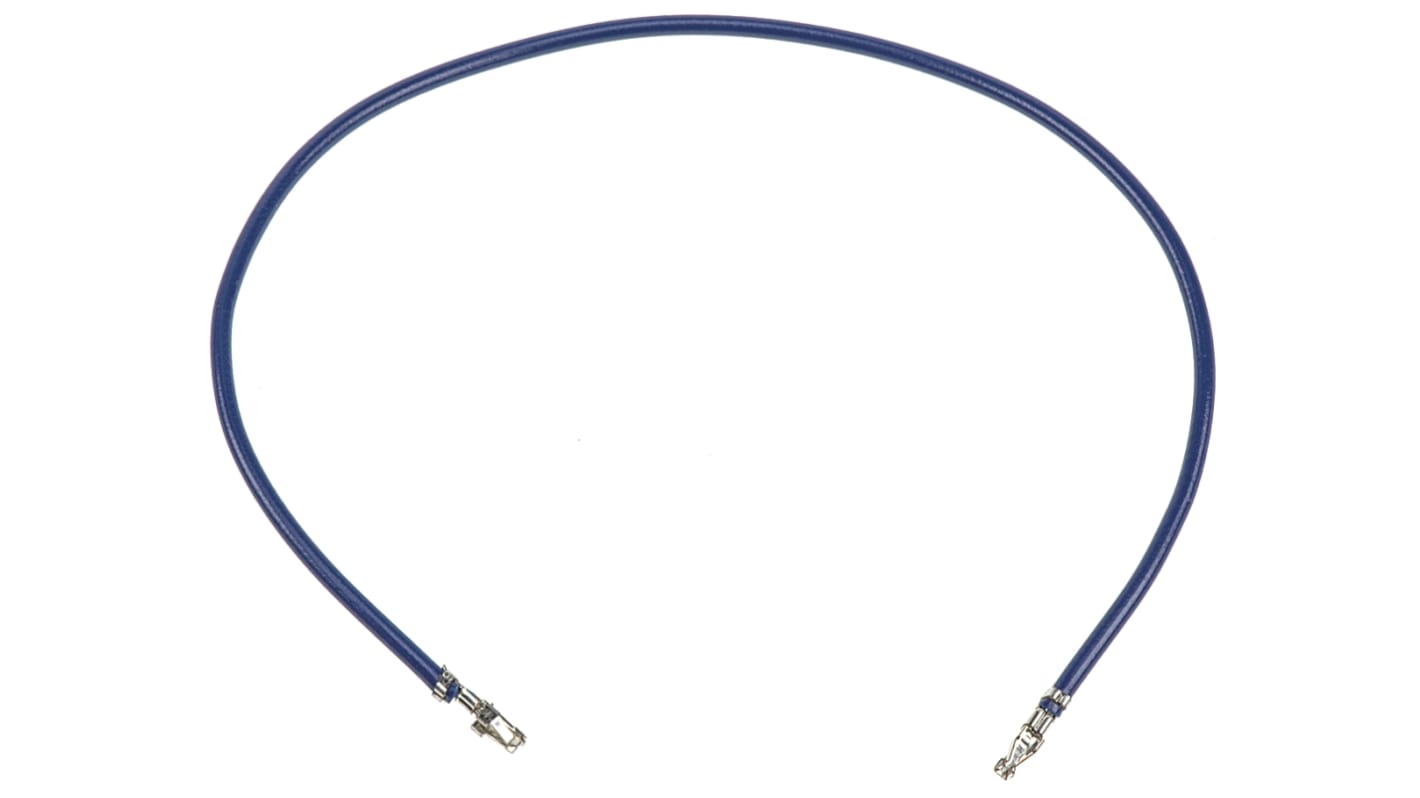

This image is representative of the product range
Bulk discount available
Subtotal (1 bag of 1000 units)*
MYR1,779.00
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Bag* |
|---|---|---|
| 1000 - 4000 | MYR1.779 | MYR1,779.00 |
| 5000 + | MYR1.601 | MYR1,601.00 |
*price indicative
- RS Stock No.:
- 161-7844
- Mfr. Part No.:
- SPHD1-SPHD1-24150
- Manufacturer:
- JST
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | PHD | |
| Product Type | Crimp Wire | |
| Voltage | 250V | |
| Cable Length | 150mm | |
| Jacket Colour | Blue | |
| Connector Type A | SPHD | |
| Connector Type B | SPHD | |
| Jacket Material | Polyamide 66 | |
| Standards/Approvals | No | |
| Wire Size | 0.25mm² | |
| Select all | ||
|---|---|---|
Brand JST | ||
Series PHD | ||
Product Type Crimp Wire | ||
Voltage 250V | ||
Cable Length 150mm | ||
Jacket Colour Blue | ||
Connector Type A SPHD | ||
Connector Type B SPHD | ||
Jacket Material Polyamide 66 | ||
Standards/Approvals No | ||
Wire Size 0.25mm² | ||
Pre-terminated crimp leads
AWG 24
Rectangular crimp for greater contact area
Contact on crimped lead offers positive latching with housing, typical stock number 476-6760
2.0 mm JST PA Range
The PA interconnection system on a 2.0mm pitch provides a secure wire to board connection with additional locking device feature. The thumb depress mechanism prevents accidental disconnection during assembly or as a result of vibration. Suitable for a wide range of applications where a secure anti-vibration connection is required.
Top entry and side entry headers available
Header has polarising guides for easy and secure insertion
Header pins are low insertion force
