Knipex MultiCrimp Hand Ratcheting Crimp Tool for Uninsulated Open Barrel Terminals, 0.25 → 25mm² Wire
- RS Stock No.:
- 484-798
- Mfr. Part No.:
- 973302
- Manufacturer:
- Knipex
Bulk discount available
Price Each**
MYR2,448.69
Available for back order.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR700.00
Units | Per Unit |
|---|---|
| 1 - 4 | MYR2,448.69 |
| 5 + | MYR2,203.81 |
**price indicative
- RS Stock No.:
- 484-798
- Mfr. Part No.:
- 973302
- Manufacturer:
- Knipex
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE

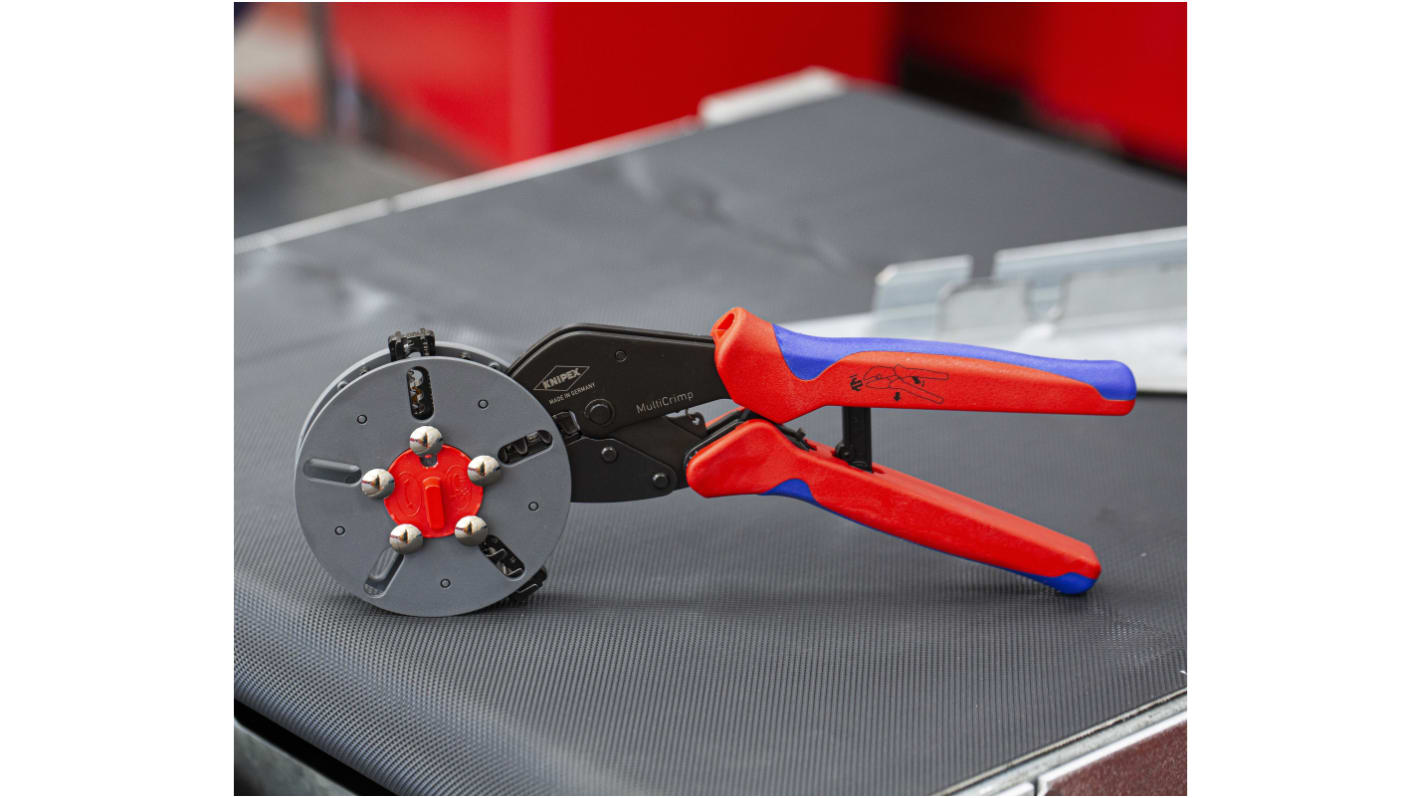

MultiCrimp® Crimping Pliers with 5 interchangeable dies
This portable hand crimping tool is designed to crimp connectors onto bare wires, the crimping dies can be changed quickly and easily without additional tools. It is the only tool with the most common crimping applications in a dispenser holster, saving time and space while working. This crimping tool offers the same services as five crimping pliers in one tool.
5 pliers in 1- It is possible to order the dies used individually.
Features and benefits
- Quick and easy change of crimping dies without additional tools
- Safe and protected storage of interchangeable profiles in a round magazine
- Comfortable, powerful and professional quality crimping tool
- Reliable crimping results comparable to fixed crimping dies
- High-quality repeat crimping thanks to the integrated lock (automatic release mechanism)
- Crimping pressure precisely defined (calibrated) at the factory, also adjustable
- Optimum force transmission through lever for fatigue-reduced operation
- Low weight
- Compact design
- Ergonomic handles
- Capacities mm² / AWG : for non-insulated connectors (connector width 4.8 + 6.3mm) from 0.5mm² to 6mm².
For insulated cable lugs, connectors + sleeves from 0.5mm² to 6mm².
For insulated and non-insulated cable ends from 0.25mm² to 6mm².
For insulated and non-insulated cable end sleeves from 10mm² to 25mm².
For non-insulated crimp and tubular terminals as well as non-insulated crimp sleeves from 0.5mm² to 10mm².
- Material: special grade chrome vanadium electric steel, oil-hardened
Round magazine: plastic, glass-fibre reinforced
- Safe and protected storage of interchangeable profiles in a round magazine
- Comfortable, powerful and professional quality crimping tool
- Reliable crimping results comparable to fixed crimping dies
- High-quality repeat crimping thanks to the integrated lock (automatic release mechanism)
- Crimping pressure precisely defined (calibrated) at the factory, also adjustable
- Optimum force transmission through lever for fatigue-reduced operation
- Low weight
- Compact design
- Ergonomic handles
- Capacities mm² / AWG : for non-insulated connectors (connector width 4.8 + 6.3mm) from 0.5mm² to 6mm².
For insulated cable lugs, connectors + sleeves from 0.5mm² to 6mm².
For insulated and non-insulated cable ends from 0.25mm² to 6mm².
For insulated and non-insulated cable end sleeves from 10mm² to 25mm².
For non-insulated crimp and tubular terminals as well as non-insulated crimp sleeves from 0.5mm² to 10mm².
- Material: special grade chrome vanadium electric steel, oil-hardened
Round magazine: plastic, glass-fibre reinforced
Instructions for use
On the holster: The die is selected by turning the red knob in the centre of the holster and matching the notch with the desired die
On the pliers: Release the small tab (between the arms of the pliers) which allows to block the opening / closing between the jaws of the pliers
Insert the head of the pliers to get the desired die
Once the die has been inserted into the pliers, push the chrome button on the left to unlock the die.
To reposition the die in the holster, we follow the same steps and once the die is inserted in its space, we release the die by pulling the pliers.
The quick change crimping dies are inserted in the front of the crimping tool with the locking system developed for this crimping tool which connects the dies to the tool without any play between teeth or friction, making changes easier. This feature ensures that the user does not waste time.
On the pliers: Release the small tab (between the arms of the pliers) which allows to block the opening / closing between the jaws of the pliers
Insert the head of the pliers to get the desired die
Once the die has been inserted into the pliers, push the chrome button on the left to unlock the die.
To reposition the die in the holster, we follow the same steps and once the die is inserted in its space, we release the die by pulling the pliers.
The quick change crimping dies are inserted in the front of the crimping tool with the locking system developed for this crimping tool which connects the dies to the tool without any play between teeth or friction, making changes easier. This feature ensures that the user does not waste time.
Typical applications
Crimping pliers can be used in many applications:
- Maintenance and repair
- Electrical installations
- Crimp shop
- Maintenance and repair
- Electrical installations
- Crimp shop
Product Maintenance
- To maintain proper operation and long service life, shafts and other moving parts should be lubricated regularly.
- Lubrication* is recommended at least every 10,000 cycles when the tool is exposed to dirt or other contaminants.
- The setting of the crimping die ranges should also be checked. - Adjustment of the pressure setting pin is necessary when the tool preload decreases significantly.
*Use a light non-mineral oil
- Lubrication* is recommended at least every 10,000 cycles when the tool is exposed to dirt or other contaminants.
- The setting of the crimping die ranges should also be checked. - Adjustment of the pressure setting pin is necessary when the tool preload decreases significantly.
*Use a light non-mineral oil
Attribute | Value |
|---|---|
| Wire Size AWG | 24 → 4AWG |
| Wire Size mm² | 0.25 → 25mm² |
| Product Type | Crimp Tool |
| For Use With | Uninsulated Open Barrel Terminals |
| Operation | Hand |
| Ratcheting | Yes |
| Series | MultiCrimp |
| Overall Length | 250 mm |
