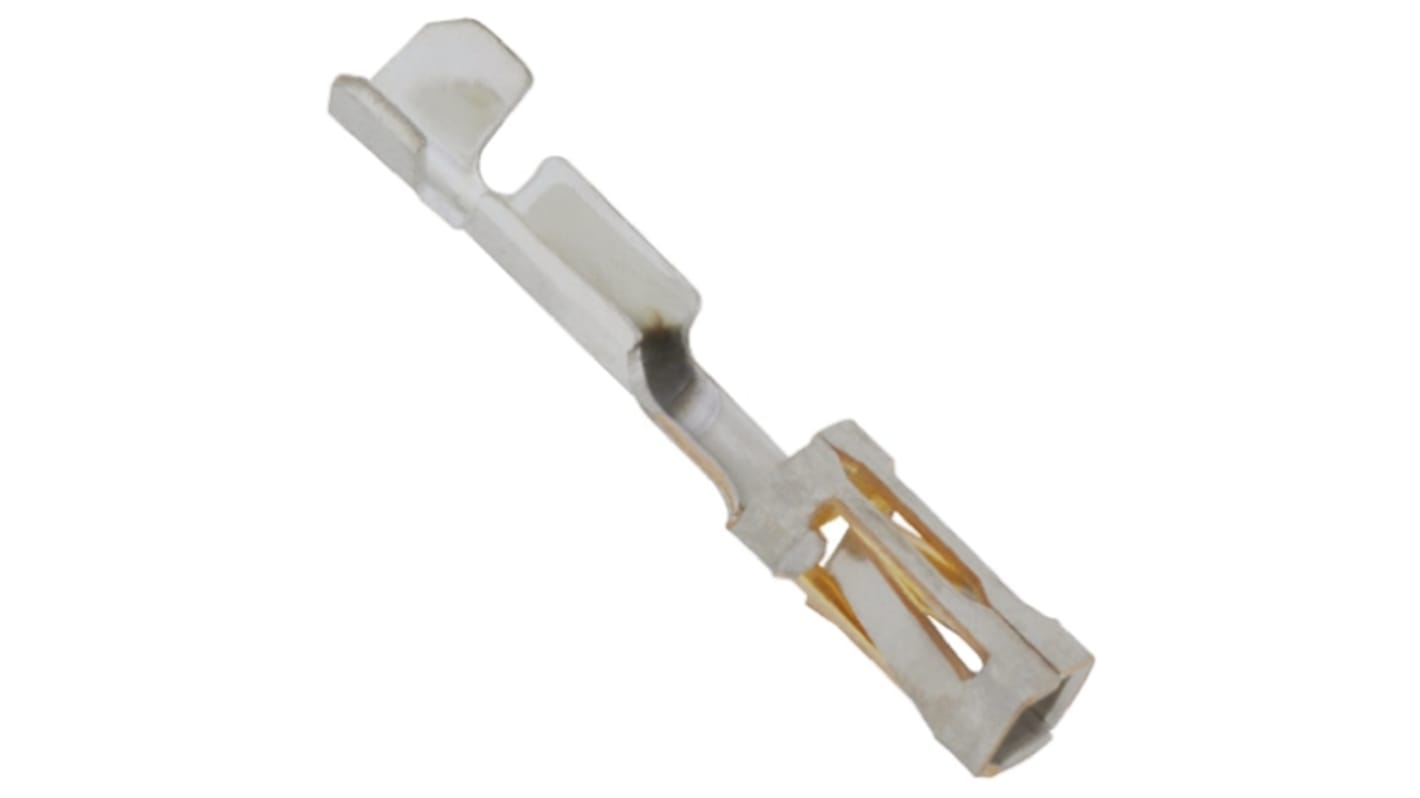

TE Connectivity AMPMODU MOD IV Series Female Crimp Terminal, 32 AWG Min Crimp, 27 AWG Max
- RS Stock No.:
- 782-1093
- Distrelec Article No.:
- 304-52-085
- Mfr. Part No.:
- 6-102316-4
- Manufacturer:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 100 units)*
MYR250.90
FREE delivery for orders over RM 500.00
Temporarily out of stock
- 500 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 100 - 900 | MYR2.509 | MYR250.90 |
| 1000 - 2900 | MYR2.456 | MYR245.60 |
| 3000 - 7400 | MYR2.381 | MYR238.10 |
| 7500 - 14900 | MYR2.323 | MYR232.30 |
| 15000 + | MYR2.273 | MYR227.30 |
*price indicative
- RS Stock No.:
- 782-1093
- Distrelec Article No.:
- 304-52-085
- Mfr. Part No.:
- 6-102316-4
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Crimp Terminal | |
| Gender | Female | |
| For Use With | AMPMODU MOD IV Connector Housing | |
| Series | AMPMODU MOD IV | |
| Current | 3A | |
| Contact Plating | Gold | |
| Minimum Wire Size AWG | 32AWG | |
| Minimum Wire Size mm² | 0.03mm² | |
| Maximum Wire Size AWG | 27AWG | |
| Maximum Wire Size mm² | 0.1mm² | |
| Contact Material | Phosphor Bronze, Copper Tin | |
| Maximum Contact Resistance | 12mΩ | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Length | 11.3mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Crimp Terminal | ||
Gender Female | ||
For Use With AMPMODU MOD IV Connector Housing | ||
Series AMPMODU MOD IV | ||
Current 3A | ||
Contact Plating Gold | ||
Minimum Wire Size AWG 32AWG | ||
Minimum Wire Size mm² 0.03mm² | ||
Maximum Wire Size AWG 27AWG | ||
Maximum Wire Size mm² 0.1mm² | ||
Contact Material Phosphor Bronze, Copper Tin | ||
Maximum Contact Resistance 12mΩ | ||
Termination Type Crimp | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Length 11.3mm | ||
TE Connectivity AMPMODU Mod IV Contacts
A range of TE Connectivity AMPMODU Mod IV Contacts.
2.54mm TE Connectivity AMPMODU Mod IV Range
