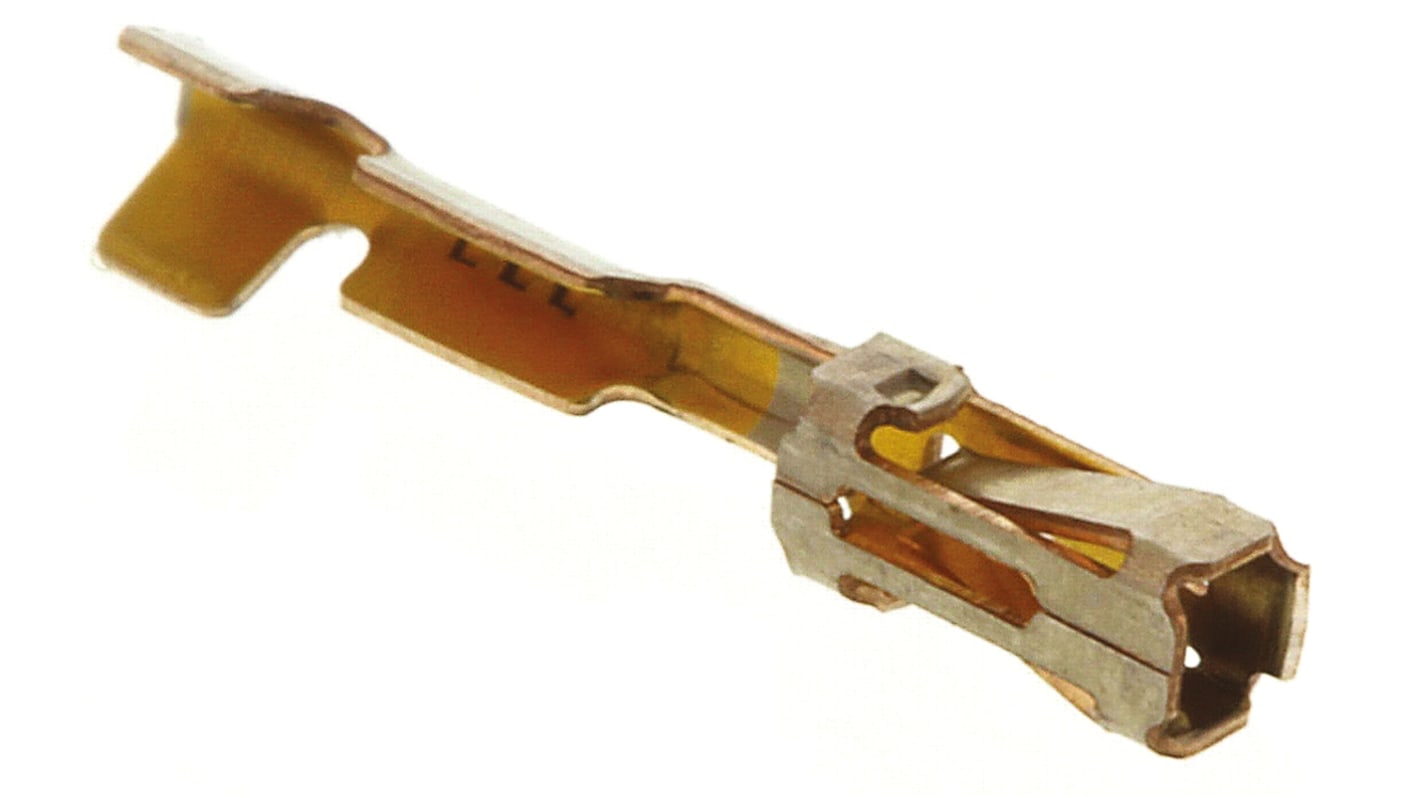

TE Connectivity AMPMODU MOD IV Series Female Crimp Terminal, 32AWG Min, 28AWG Max
- RS Stock No.:
- 164-8531
- Mfr. Part No.:
- 167023-1
- Manufacturer:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 200 units)**
MYR480.80
Temporarily out of stock - back order for despatch 22/09/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Box** |
|---|---|---|
| 200 - 600 | MYR2.404 | MYR480.80 |
| 800 - 1400 | MYR2.351 | MYR470.20 |
| 1600 + | MYR2.307 | MYR461.40 |
**price indicative
- RS Stock No.:
- 164-8531
- Mfr. Part No.:
- 167023-1
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Female | |
| For Use With | AMPMODU MOD IV Connector Housing | |
| Series | AMPMODU MOD IV | |
| Minimum Wire Size mm² | 0.03mm² | |
| Termination Method | Crimp | |
| Maximum Wire Size mm² | 0.09mm² | |
| Contact Plating | Gold | |
| Minimum Wire Size AWG | 32AWG | |
| Maximum Wire Size AWG | 28AWG | |
| Contact Material | Phosphor Bronze | |
| Maximum Contact Resistance | 12mΩ | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
For Use With AMPMODU MOD IV Connector Housing | ||
Series AMPMODU MOD IV | ||
Minimum Wire Size mm² 0.03mm² | ||
Termination Method Crimp | ||
Maximum Wire Size mm² 0.09mm² | ||
Contact Plating Gold | ||
Minimum Wire Size AWG 32AWG | ||
Maximum Wire Size AWG 28AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Contact Resistance 12mΩ | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +105°C | ||
