Units	Per Unit	Per Pack**
100 - 900	MYR1.074	MYR107.40
1000 - 2900	MYR1.052	MYR105.20
3000 +	MYR1.02	MYR102.00

Select all	Attribute	Value
	Brand	Molex
	Gender	Male
	For Use With	Micro-Fit 3.0 and Micro-Fit BMI Connector Housings
	Series	Micro-Fit 3.0
	Minimum Wire Size mm²	0.2mm²
	Maximum Wire Size mm²	0.5mm²
	Termination Method	Crimp
	Minimum Wire Size AWG	24AWG
	Contact Plating	Gold
	Maximum Wire Size AWG	20AWG
	Contact Material	Phosphor Bronze
	Series Number	43031
	Maximum Contact Resistance	10mΩ
	Maximum Current	8.5A
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+125°C

	Select all
	Brand Molex
	Gender Male
	For Use With Micro-Fit 3.0 and Micro-Fit BMI Connector Housings
	Series Micro-Fit 3.0
	Minimum Wire Size mm² 0.2mm²
	Maximum Wire Size mm² 0.5mm²
	Termination Method Crimp
	Minimum Wire Size AWG 24AWG
	Contact Plating Gold
	Maximum Wire Size AWG 20AWG
	Contact Material Phosphor Bronze
	Series Number 43031
	Maximum Contact Resistance 10mΩ
	Maximum Current 8.5A
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +125°C

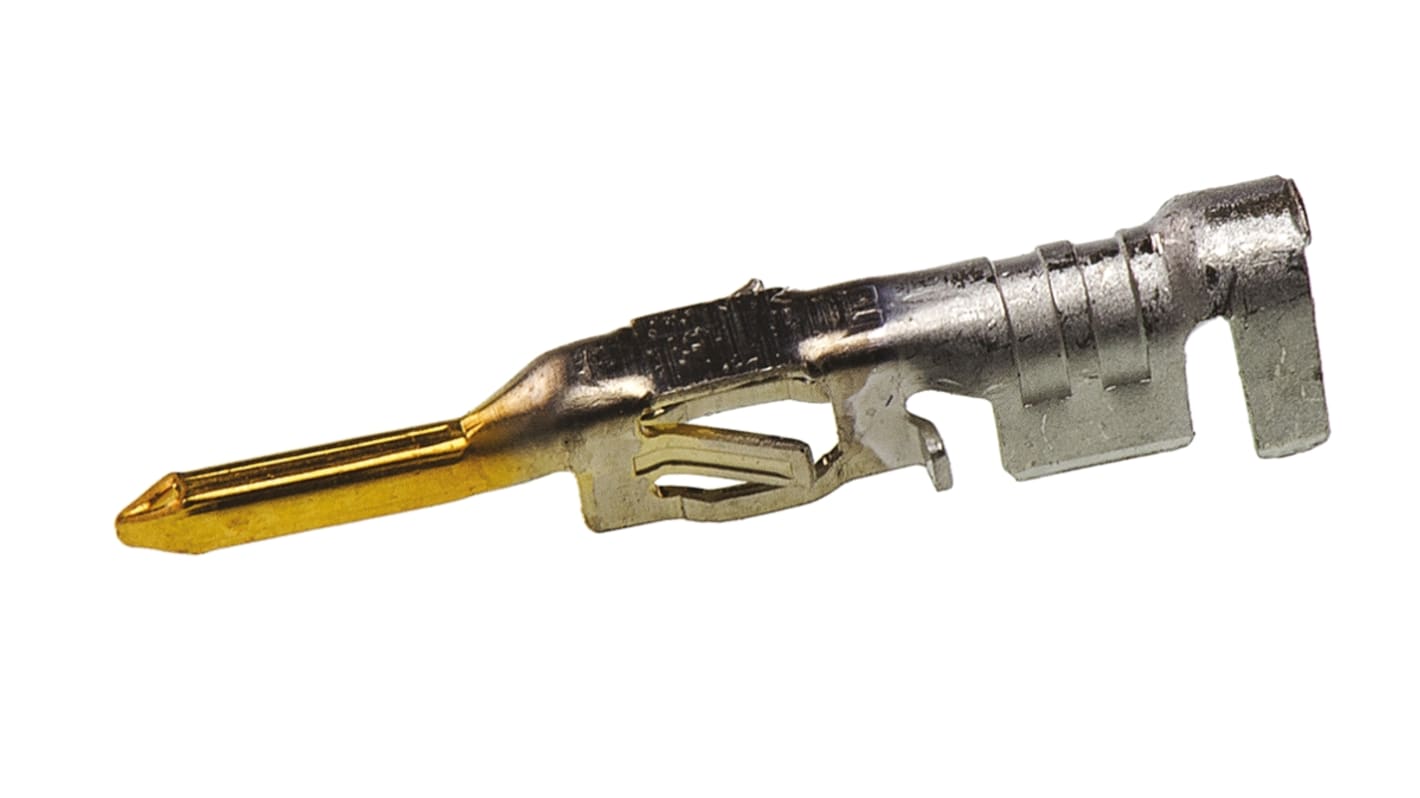

Molex Micro-Fit 3.0 Series Male Crimp Terminal, 24AWG Min, 20AWG Max

FREE delivery for orders over MYR500.00

Molex Crimp Terminal, Gold Contact Plating, Accommodates 24 to 20AWG - Micro-Fit 3.0 Series - 43031-0009

Features & Benefits

Applications

How do I fit a crimp terminal?

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
