Molex KK 396 Series Female Crimp Terminal, 26AWG Min, 22AWG Max

RS Stock No.:: 678-3146
Mfr. Part No.:: 08-56-0108
Manufacturer:: Molex

Molex KK 396 Series Female Crimp Terminal, 26AWG Min, 22AWG Max

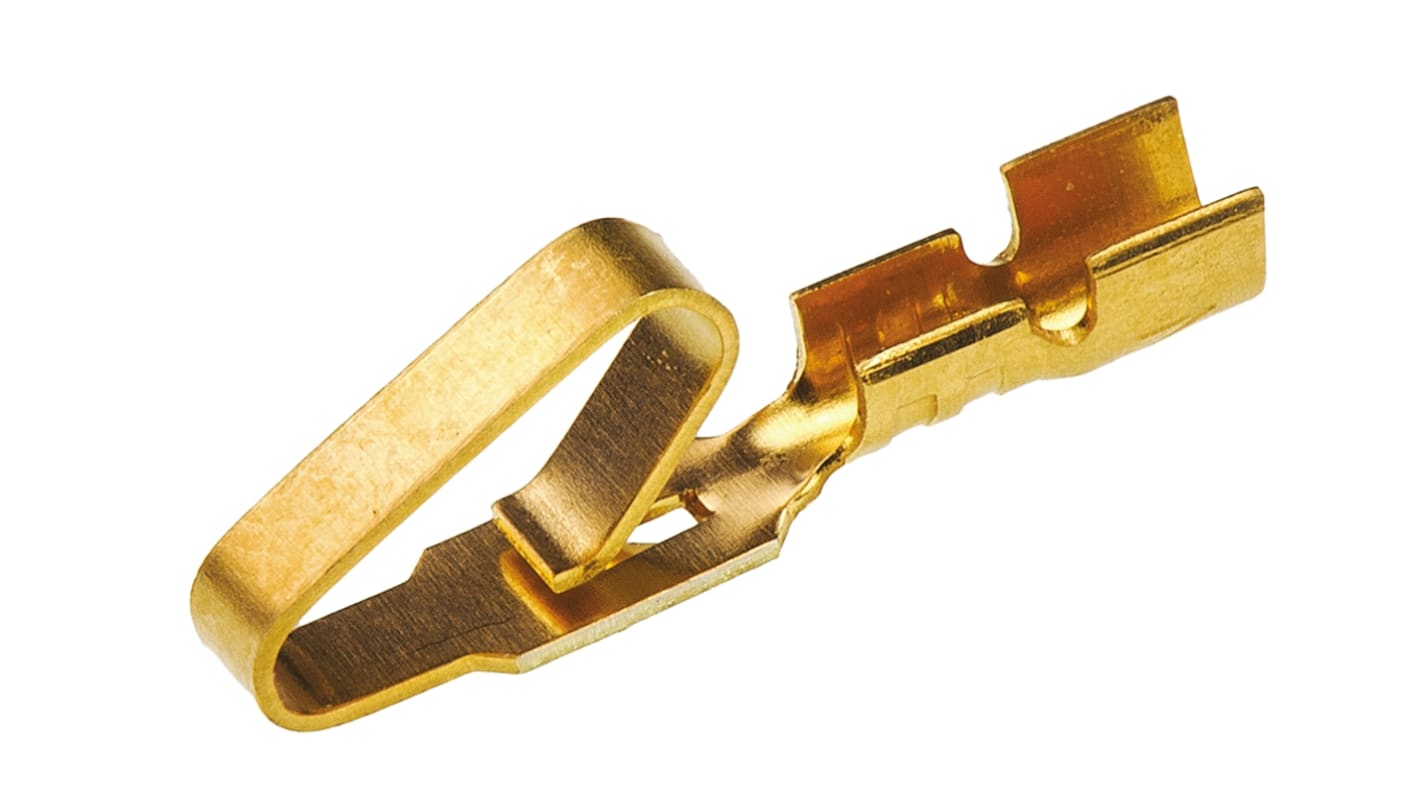

This image is representative of the product range

Bulk discount available

Subtotal (1 pack of 100 units)**

MYR295.50

100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR500.00

Real time qty checker

Units	Per Unit	Per Pack**
100 - 900	MYR2.955	MYR295.50
1000 - 2900	MYR2.896	MYR289.60
3000 +	MYR2.838	MYR283.80

**price indicative

RS Stock No.:: 678-3146
Mfr. Part No.:: 08-56-0108
Manufacturer:: Molex

Datasheet

Attribute	Value
Gender	Female
For Use With	KK 396 Connector Housing
Series	KK 396
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.35mm²
Termination Method	Crimp
Contact Plating	Gold
Minimum Wire Size AWG	26AWG
Contact Material	Brass
Maximum Wire Size AWG	22AWG
Series Number	2578
Maximum Contact Resistance	10mΩ
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+50°C

Molex KK 396 Series Female Crimp Terminal, 26AWG Min, 22AWG Max

FREE delivery for orders over MYR500.00

Molex KK Series Crimp Receptacle Terminals - 2478 and 2578 Series

Features:

Applications:

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
