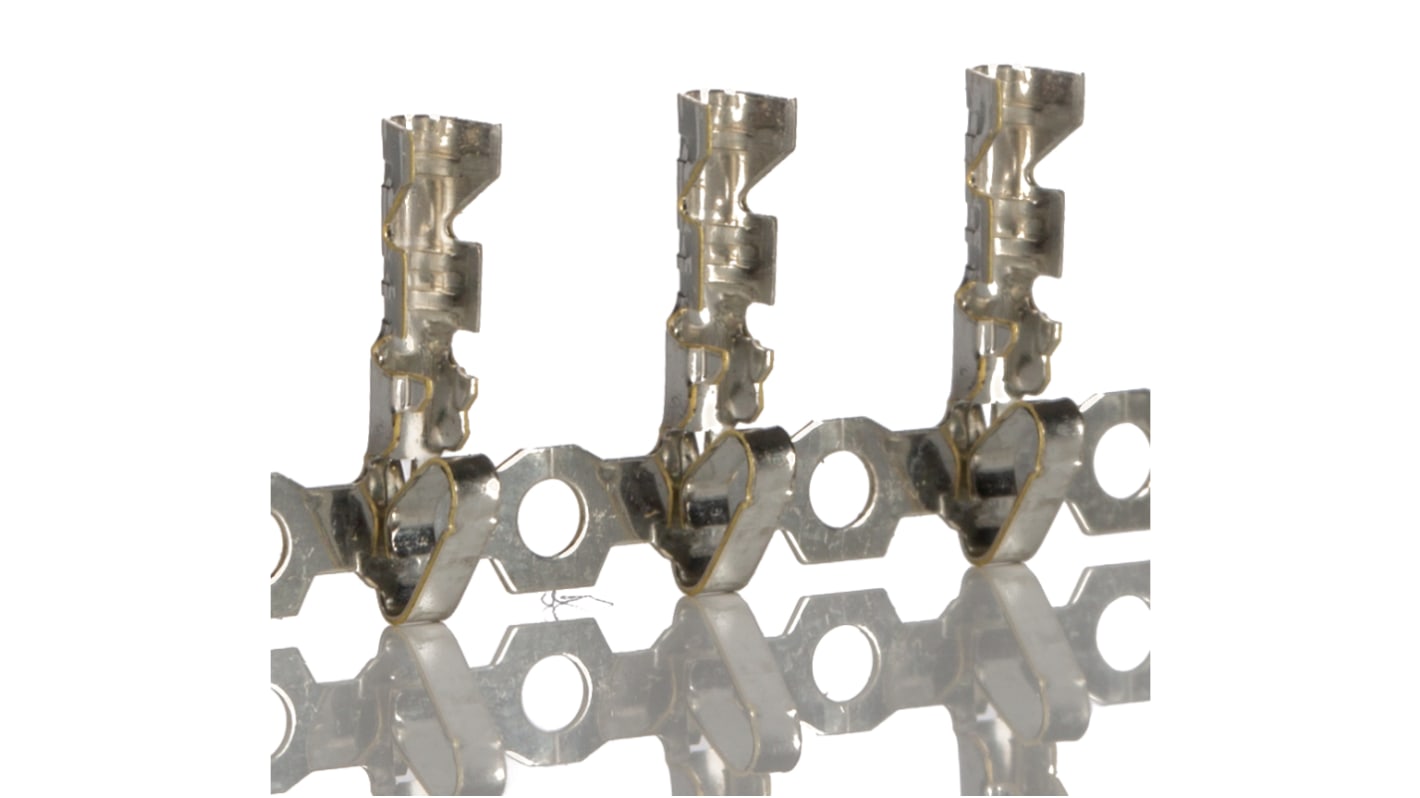

Molex KK Series Female Crimp Terminal, 30AWG Min, 22AWG Max

This range of KK 254 Crimp Terminal Contacts from the 4809 Series are available as follows:
Part numbers 08-50-0032 and 08-50-0031 have Cat Ear Terminals Tin plated, B winding.
Part number 08-50-0105 has Cat Ear Terminals Tin plated, top feed winding.
Part numbers 08-55-0110 and 08-55-0111 are plain Anti-Fish Hooking Terminals Gold plated on contact area.
Part numbers 08-56-0115 and 08-56-0120 are plain Anti-Fish Hooking Terminals Gold plated all over.
Part number 97-00-0001 is a Cat Ear Terminal Tin plated, A winding.
666-7347 is a pre-crimped Cable Assembly 300 mm long with 08-50-0032 terminals.
797-9004 is a pre-crimped Cable Assembly 300 mm long with 87421-000 terminals.
For use in KK Crimp Terminal Housings 6471 Series stock number 670-1673 typical.

Molex KK 254 connectors are ideal for automotive, medical and consumer industries. Applications include:

• Interior automotive lighting


• Fire alarms


• Gaming devices


• Home security


• White goods


• Data and communications

For Extracton Tool see 710-6528

UL (E29179) and CSA (LR 19980)

Create sound circuits in your PCB applications by using this crimp terminal from Molex. It's a quick and simple way to achieve quality links in your electrical setup. The reel-shaped female component accommodates 30 to 22AWG wire sizes, making it a versatile choice for standard equipment. Tin-plated brass contact material offers good conductivity to deliver reliable signals. You can use this terminal in board-to-board and wire-to-board connections.

• Low weight of just 0.040g adds minimal strain to PCBs
• Standard 2.54mm pitch makes the terminal suitable for compact applications
• Compatible with hand crimping method for straightforward installation

• Electronic appliances
• Desktop and laptop computers
• Industrial control panels
• Medical equipment
• Automotive industry

Crimp contacts provide a foundation for PCB connectors, so you'll find them used them to create PCH sockets and prototypes.
