Units	Per Unit	Per Pack**
100 - 900	MYR0.601	MYR60.10
1000 - 4900	MYR0.584	MYR58.40
5000 +	MYR0.481	MYR48.10

Select all	Attribute	Value
	Brand	Molex
	Gender	Male
	For Use With	Micro-Fit 3.0 and Micro-Fit BMI Connector Housings
	Series	Micro-Fit 3.0
	Minimum Wire Size mm²	0.2mm²
	Termination Method	Crimp
	Maximum Wire Size mm²	0.5mm²
	Minimum Wire Size AWG	24AWG
	Contact Plating	Gold
	Maximum Wire Size AWG	20AWG
	Contact Material	Phosphor Bronze
	Series Number	43031
	Maximum Contact Resistance	10mΩ
	Minimum Operating Temperature	-40°C
	Maximum Current	8.5A
	Maximum Operating Temperature	+105°C

	Select all
	Brand Molex
	Gender Male
	For Use With Micro-Fit 3.0 and Micro-Fit BMI Connector Housings
	Series Micro-Fit 3.0
	Minimum Wire Size mm² 0.2mm²
	Termination Method Crimp
	Maximum Wire Size mm² 0.5mm²
	Minimum Wire Size AWG 24AWG
	Contact Plating Gold
	Maximum Wire Size AWG 20AWG
	Contact Material Phosphor Bronze
	Series Number 43031
	Maximum Contact Resistance 10mΩ
	Minimum Operating Temperature -40°C
	Maximum Current 8.5A
	Maximum Operating Temperature +105°C

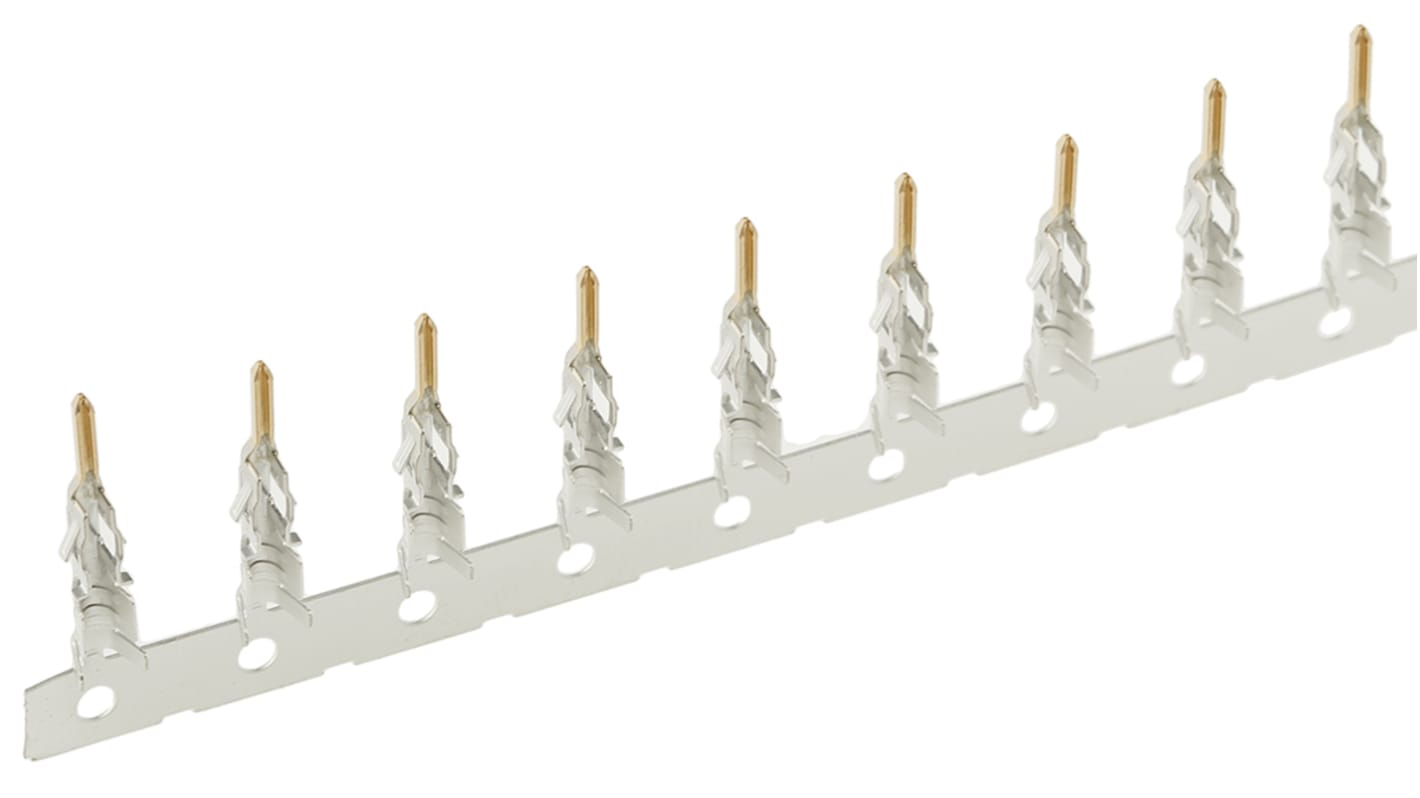

Molex Micro-Fit 3.0 Series Male Crimp Terminal, 24AWG Min, 20AWG Max

FREE delivery for orders over MYR500.00

Molex Micro-Fit 3.0 Series Crimp Terminal, Phosphor Bronze Contact Material, Crimp Termination Method - 43031-0008
