Units	Per Unit	Per Bag**
50 - 450	MYR2.019	MYR100.95
500 - 2450	MYR1.977	MYR98.85
2500 - 4950	MYR1.917	MYR95.85
5000 - 12450	MYR1.87	MYR93.50
12500 +	MYR1.829	MYR91.45

Select all	Attribute	Value
	Brand	JST
	Gender	Male
	For Use With	J300 and JFA Connector Housings
	Series	J300
	Minimum Wire Size mm²	0.2mm²
	Maximum Wire Size mm²	0.5mm²
	Termination Method	Crimp
	Minimum Wire Size AWG	24AWG
	Contact Plating	Gold
	Maximum Wire Size AWG	20AWG
	Contact Material	Copper Alloy
	Maximum Contact Resistance	10mΩ
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	+105°C

	Select all
	Brand JST
	Gender Male
	For Use With J300 and JFA Connector Housings
	Series J300
	Minimum Wire Size mm² 0.2mm²
	Maximum Wire Size mm² 0.5mm²
	Termination Method Crimp
	Minimum Wire Size AWG 24AWG
	Contact Plating Gold
	Maximum Wire Size AWG 20AWG
	Contact Material Copper Alloy
	Maximum Contact Resistance 10mΩ
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature +105°C

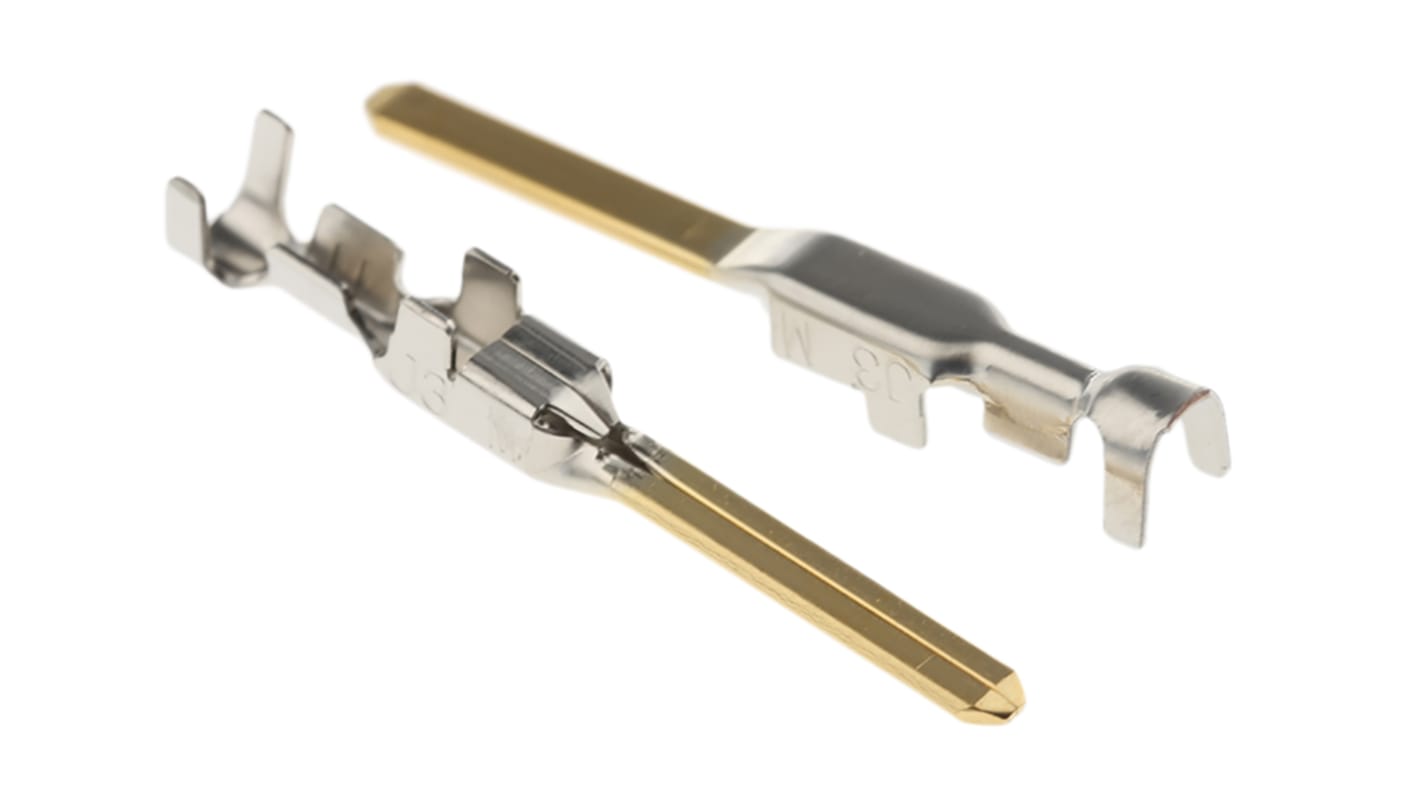

JST J300 Series Male Crimp Terminal, 24AWG Min, 20AWG Max
