LLM-41T-P1.3E | JST EL Series Male Crimp Terminal, 20AWG Min, 16AWG Max | RS
Recently searched

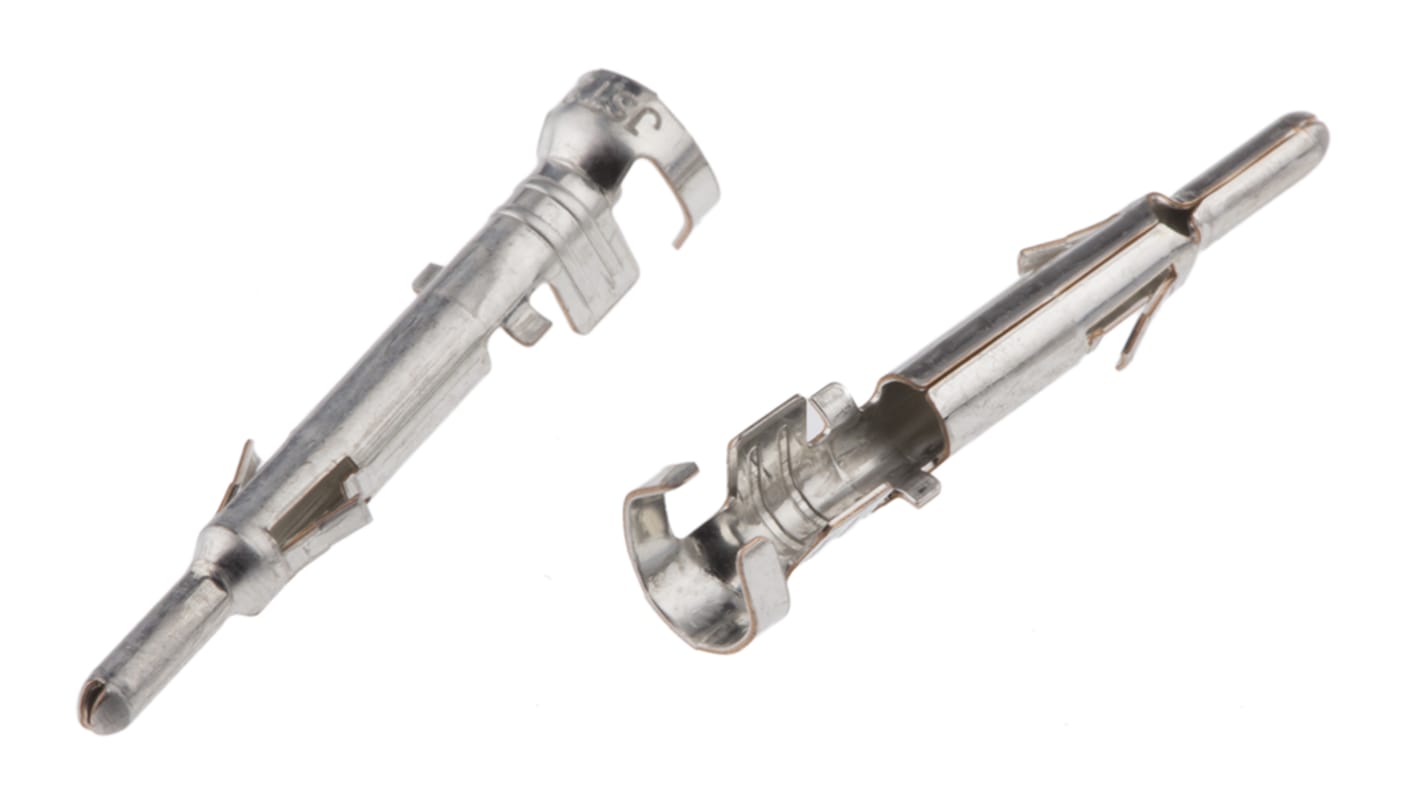

    JST EL Series Male Crimp Terminal, 20AWG Min, 16AWG Max

    View all Crimp Contacts
    Bulk discount available

    Subtotal (1 bag of 50 units)**

    MYR35.80

    Add to Basket
    Select or type quantity
    29550 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    Per Bag**
    50 - 450MYR0.716MYR35.80
    500 - 2450MYR0.70MYR35.00
    2500 - 4950MYR0.679MYR33.95
    5000 - 12450MYR0.662MYR33.10
    12500 +MYR0.647MYR32.35

    **price indicative

    RS Stock No.:
    490-6233
    Distrelec Article No.:
    304-09-577
    Mfr. Part No.:
    LLM-41T-P1.3E
    Manufacturer:
    JST
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    JST

    Gender

    Male

    For Use With

    EL Connector Housing

    Series

    EL

    Minimum Wire Size mm²

    0.5mm²

    Maximum Wire Size mm²

    1.25mm²

    Termination Method

    Crimp

    Contact Plating

    Tin

    Minimum Wire Size AWG

    20AWG

    Maximum Wire Size AWG

    16AWG

    Contact Material

    Phosphor Bronze

    Maximum Contact Resistance

    10mΩ

    Minimum Operating Temperature

    -25°C

    Maximum Current

    10A

    Maximum Operating Temperature

    +90°C
