Units	Per Unit	Per Bag**
50 - 450	MYR0.579	MYR28.95
500 - 2450	MYR0.572	MYR28.60
2500 - 4950	MYR0.557	MYR27.85
5000 - 12450	MYR0.54	MYR27.00
12500 +	MYR0.525	MYR26.25

Select all	Attribute	Value
	Brand	JST
	Gender	Male
	For Use With	EL Connector Housing
	Series	EL
	Minimum Wire Size mm²	0.1mm²
	Maximum Wire Size mm²	0.5mm²
	Termination Method	Crimp
	Minimum Wire Size AWG	26AWG
	Contact Plating	Tin
	Maximum Wire Size AWG	20AWG
	Contact Material	Phosphor Bronze
	Maximum Contact Resistance	10mΩ
	Minimum Operating Temperature	-25°C
	Maximum Current	5A
	Maximum Operating Temperature	+90°C

	Select all
	Brand JST
	Gender Male
	For Use With EL Connector Housing
	Series EL
	Minimum Wire Size mm² 0.1mm²
	Maximum Wire Size mm² 0.5mm²
	Termination Method Crimp
	Minimum Wire Size AWG 26AWG
	Contact Plating Tin
	Maximum Wire Size AWG 20AWG
	Contact Material Phosphor Bronze
	Maximum Contact Resistance 10mΩ
	Minimum Operating Temperature -25°C
	Maximum Current 5A
	Maximum Operating Temperature +90°C

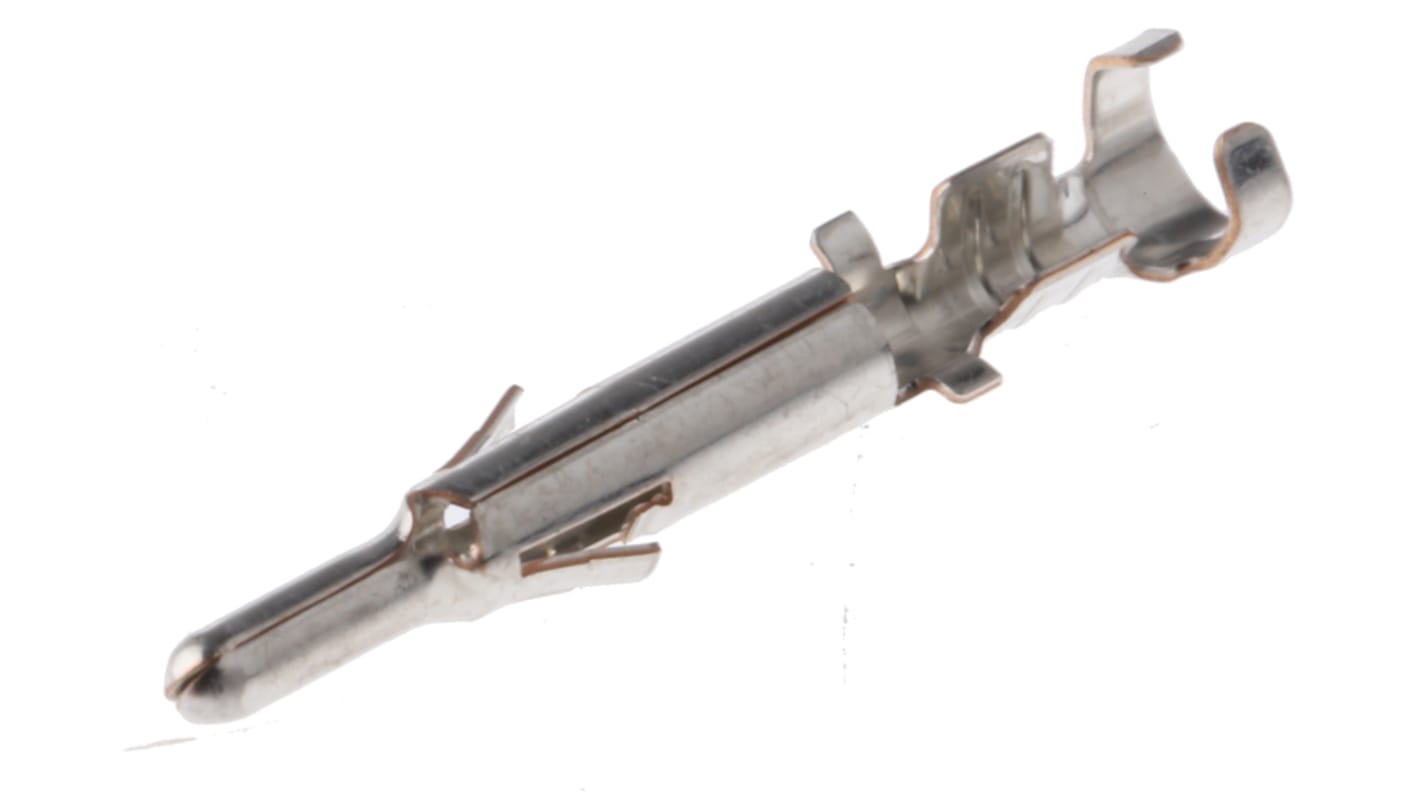

JST EL Series Male Crimp Terminal, 26AWG Min, 20AWG Max
