JST SYM Series Male Crimp Terminal, 20 AWG Min Crimp, 16 AWG Max
- RS Stock No.:
- 161-8147
- Mfr. Part No.:
- SYM-41T-P0.5A
- Manufacturer:
- JST

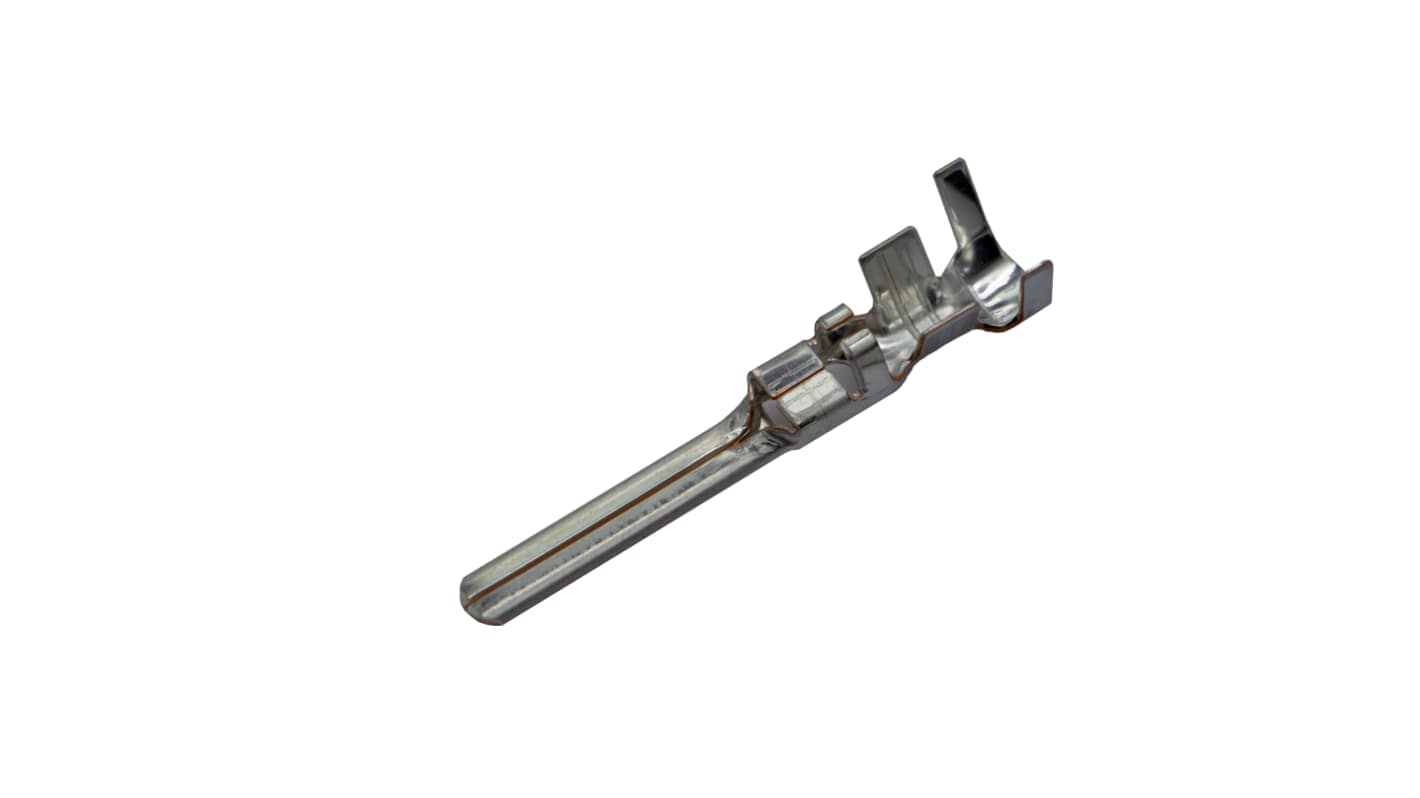

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 50 units)*
MYR12.60
FREE delivery for orders over RM 500.00
Last RS stock
- 3,200 left, ready to ship from another location
- Final 75,050 unit(s) shipping from 11 May 2026
Units | Per Unit | Per Pack* |
|---|---|---|
| 50 - 950 | MYR0.252 | MYR12.60 |
| 1000 - 1950 | MYR0.247 | MYR12.35 |
| 2000 + | MYR0.24 | MYR12.00 |
*price indicative
- RS Stock No.:
- 161-8147
- Mfr. Part No.:
- SYM-41T-P0.5A
- Manufacturer:
- JST
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Crimp Terminal | |
| Gender | Male | |
| For Use With | YL and YLN Connector Housings | |
| Current | 10A | |
| Series | SYM | |
| Minimum Wire Size AWG | 20AWG | |
| Minimum Wire Size mm² | 0.5mm² | |
| Contact Plating | Tin | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size AWG | 16AWG | |
| Maximum Wire Size mm² | 1.25mm² | |
| Maximum Contact Resistance | 10mΩ | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Crimp Terminal | ||
Gender Male | ||
For Use With YL and YLN Connector Housings | ||
Current 10A | ||
Series SYM | ||
Minimum Wire Size AWG 20AWG | ||
Minimum Wire Size mm² 0.5mm² | ||
Contact Plating Tin | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size AWG 16AWG | ||
Maximum Wire Size mm² 1.25mm² | ||
Maximum Contact Resistance 10mΩ | ||
Termination Type Crimp | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals No | ||
The YLN connector adds variation in shape to the existing Colour variations of the YL connector in order to improve identification of connectors. Moreover, this connector has a mechanism to prevent incomplete mating by utilizing the inertia force generated when the plug and receptacle are mated and therefore, ensures complete mating.
Design to Prevent incidental mating with the YL Connector
Inertial force mechanism
interchangeability
Finger friendly design
