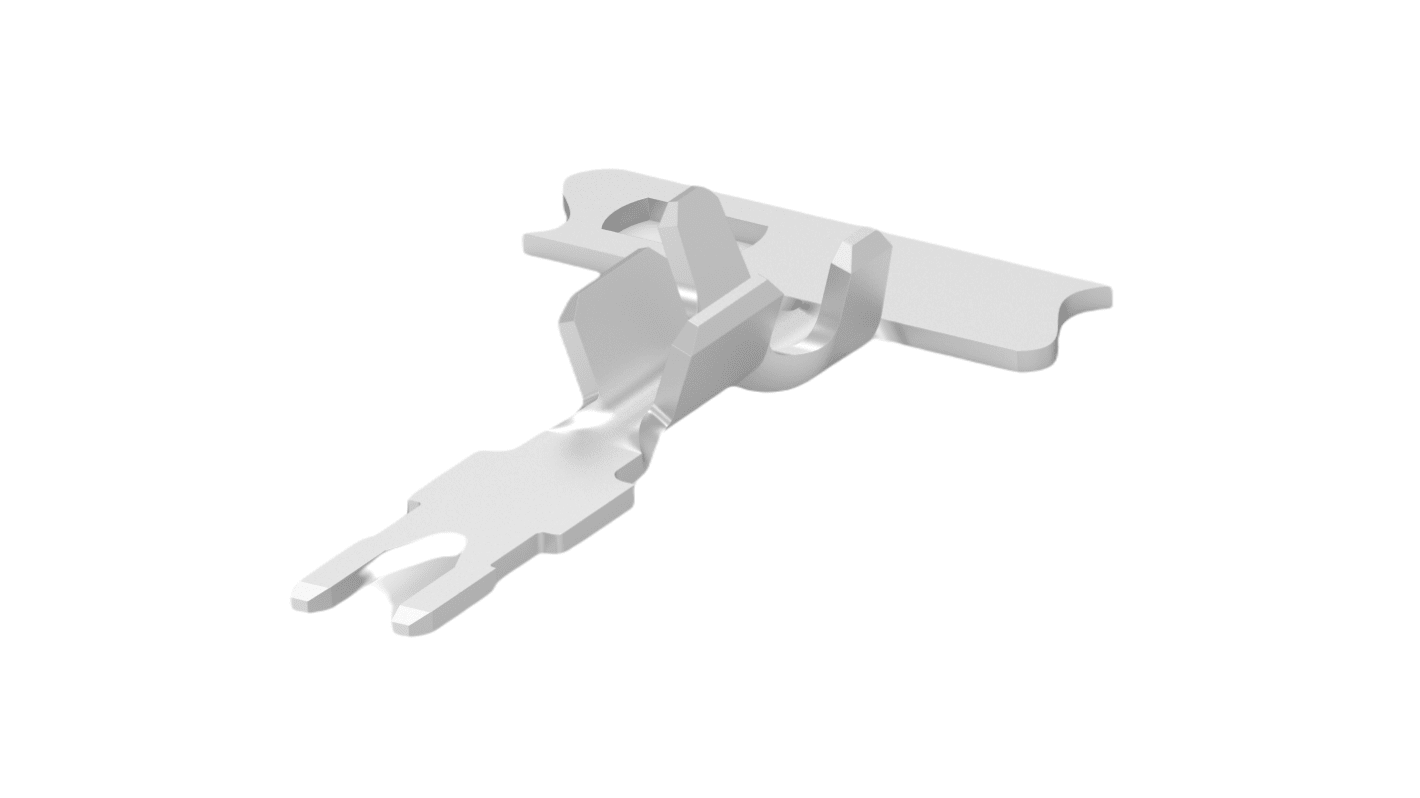

TE Connectivity 2403091 Series Crimp Terminal, 22AWG Min, 18AWG Max

The TE Connectivity Mag-Mate is a crimp magnet wire terminal designed for secure connections with 22 to 18 AWG lead wire sizes. It features pre-tin plating for enhanced corrosion resistance and durability, the terminal has a crimp area length of 3.05 mm and operates efficiently in a wide temperature range. TE Connectivity has developed 200 box MAG-MATE terminals to benefit electric motor manufacturers designing compact motor systems. With 30% less volume than 300 box MAG-MATE terminals and compatibility with a wide range of copper and aluminum magnet wire sizes, this insulation displacement contact (IDC) terminal can support a variety of small motor applications with reliable, efficient, gas-tight connections.

Straight terminal orientation
REACH and RoHS compliant
Operating temperature is -65 degree C to 125 degree Celsius
Magnet wire terminal for compact motor systems
Insulation displacement contact (IDC)
Accepts copper and aluminum magnet wire
Space-saving design suited for compact motor systems
Compatible with 30-21AWG copper and 26-20AWG aluminum magnet wire
IDC magnet wire contact creates a reliable, cost-effective and efficient connection

Air conditioner fan motor
Seat adjustment motor
Small power motors
