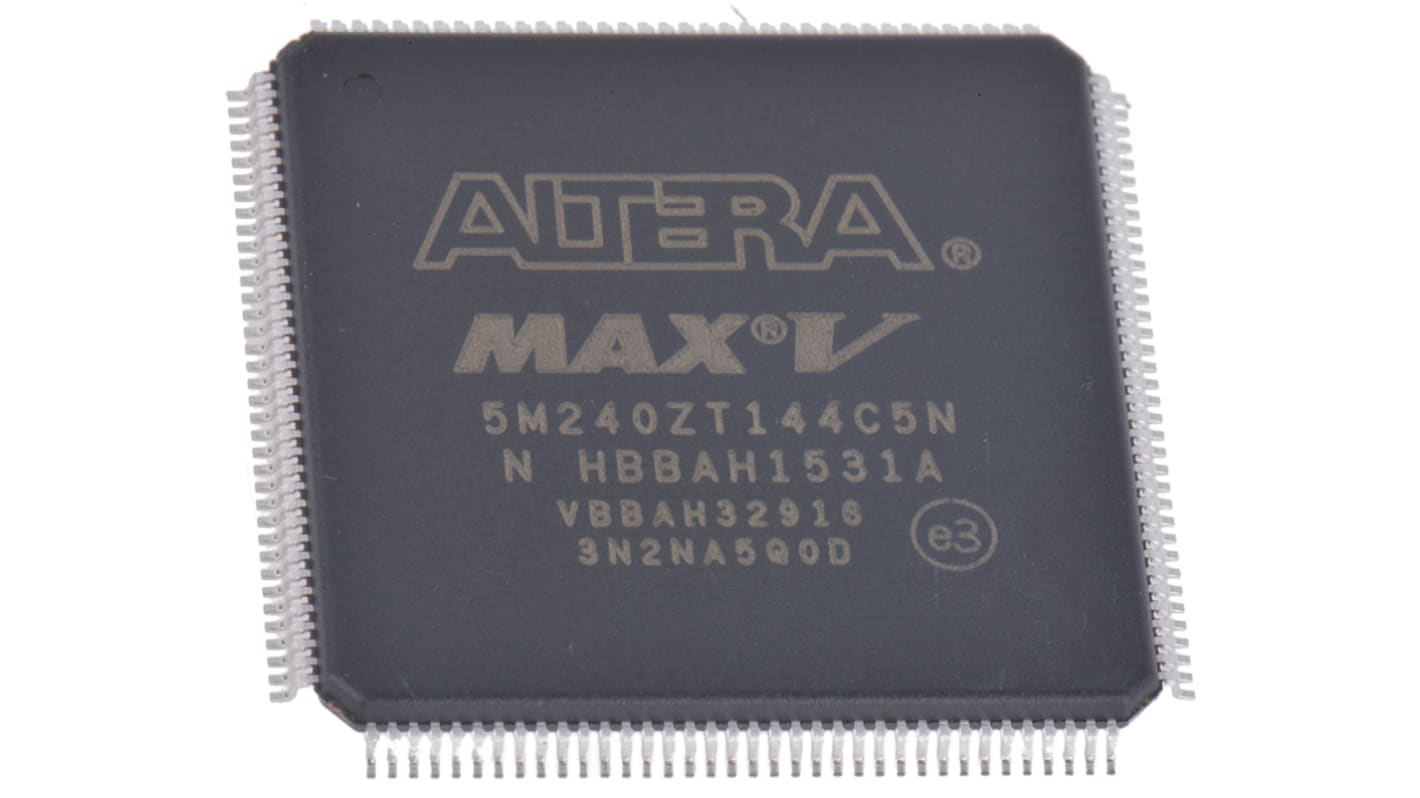

Altera 5M240ZT144C5N, CPLD MAX V Flash 192 Cells, 114 I/O, 240 Labs, 17.7ns, ISP, 144-Pin TQFP
- RS Stock No.:
- 830-3647
- Mfr. Part No.:
- 5M240ZT144C5N
- Manufacturer:
- Altera
Available for back order.
Price Each
MYR48.21
Units | Per Unit |
|---|---|
| 1 - 14 | MYR48.21 |
| 15 - 29 | MYR46.77 |
| 30 + | MYR45.39 |
- RS Stock No.:
- 830-3647
- Mfr. Part No.:
- 5M240ZT144C5N
- Manufacturer:
- Altera
Technical data sheets
Legislation and Compliance
Product Details
MAX V device CPLD, Altera
Low-power, and non-volatile CPLD architecture
Instant-on (0.5ms or less) configuration time
Standby current as low as 25μA and fast power-down/reset operation
Fast propagation delay and clock-to-output times
Internal oscillator
Instant-on (0.5ms or less) configuration time
Standby current as low as 25μA and fast power-down/reset operation
Fast propagation delay and clock-to-output times
Internal oscillator
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Family Name | MAX V |
| Number of Macro Cells | 192 |
| Number of User I/Os | 114 |
| Memory Type | Flash |
| Number of Logic Blocks/Elements | 240 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 144 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | 0 °C |
| Propagation Delay | 17.7ns |
| Individual Output Enable Control | Yes |
| Dimensions | 22 x 22mm |
| Maximum Operating Supply Voltage | 1.89 V |
| Length | 22mm |
| Width | 22mm |
| Minimum Operating Supply Voltage | 1.71 V |
| Re-programmability Support | Yes |
| Propagation Delay Test Condition | 10pF |
