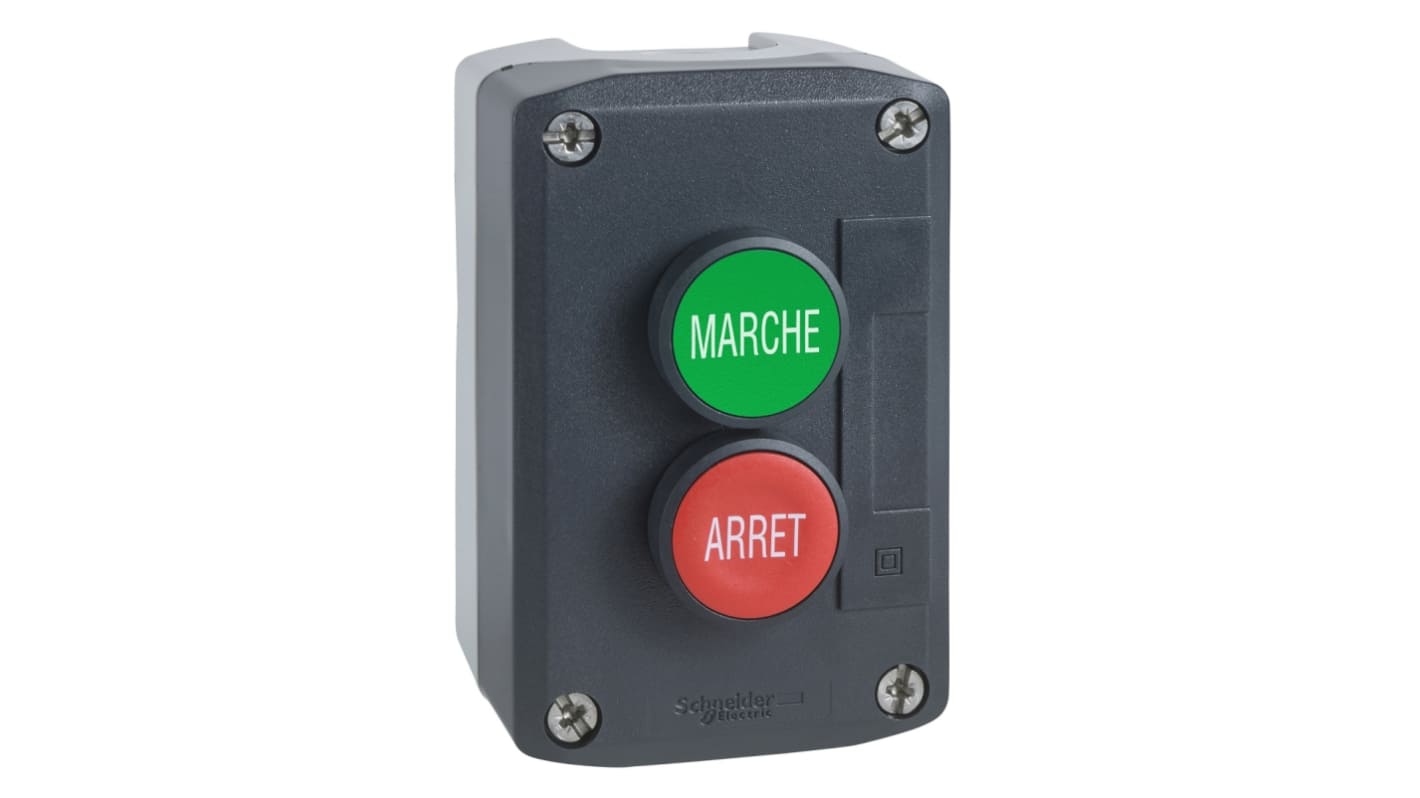

Schneider Electric Spring Return Enclosed Push Button - SPST, SPST, Polycarbonate, Green, Red, ARRET, MARCHE, IP66,

RS Stock No.:: 609-4629
Mfr. Part No.:: XALD224
Manufacturer:: Schneider Electric

Schneider Electric Spring Return Enclosed Push Button - SPST, SPST, Polycarbonate, Green, Red, ARRET, MARCHE, IP66,

Subtotal (1 unit)**

MYR287.83

6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR500.00

Real time qty checker

Units	Per Unit
1 +	MYR287.83

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 609-4629
Mfr. Part No.:: XALD224
Manufacturer:: Schneider Electric

Schneider Electric Harmony XALD Series Enclosed Push Button, Polycarbonate Enclosure Material, Spring Return Push Button Actuation - XALD224

This enclosed push button is designed for effective control and signalling in various industrial settings. It plays an important role in automation systems, facilitating start-stop functions within a robust, weather-resistant enclosure. Its dual-colour design improves visibility while enhancing operational safety in diverse environments.

Features & Benefits

• Polycarbonate construction provides durability and impact resistance
• IP66, IP67, and IP69K ratings ensure protection against dust and water
• Spring return mechanism enhances reliability and ease of use
• SPST configuration allows for simple on/off operations
• Mechanical durability rated for 10 million cycles for long-lasting performance
• High voltage capability up to 600V for a heavy-duty applications

Applications

• Compatible with control panels in manufacturing machinery
• Suitable for emergency stops in automated systems
• Ideal for environments requiring high ingress protection
• Used in equipment control for hazardous locations

How does the IP rating affect its performance in wet conditions?

The high IP66, IP67, and IP69K ratings provide effective performance in wet and dusty environments, preventing water ingress even during high-pressure washing.

What type of terminals does it use for wiring?

It features screw clamp terminals that accommodate different wire sizes, ensuring a secure electrical connection and compliance with international standards.

Can it be installed in tight spaces?

Yes, its compact design allows installation in restricted areas while still offering essential controls for various applications.

What is the operational temperature range for this control button?

The device operates effectively within a temperature range of -25°C to +70°C, suitable for a variety of industrial environments.

How is it protected against short circuits?

It includes short circuit protection rated at 10A, in line with EN/IEC standards, which enhances safety during operation.

Attribute	Value
Series	Harmony XALD
Push Button Marking	ARRET, MARCHE
Push Button Colour	Green, Red
Enclosure Colour	Dark Grey/Light Grey
Contact Configuration	SPST, SPST
Enclosure Material	Polycarbonate
IP Rating	IP66, IP67, IP69K
Cutout Diameter	22mm
Push Button Actuation	Spring Return
Length	106mm
Width	68mm
Better World Verification	Green Premium
Better World Product	Yes
Depth	62mm
Maximum AC Voltage	600V
Terminal Type	Screw
Minimum Operating Temperature	-25°C
Maximum Current	10A
Maximum Operating Temperature	+70°C
Maximum DC Voltage	600V
